Window crank

Contractor from Boston

Oct 17, 2025 11:22 am

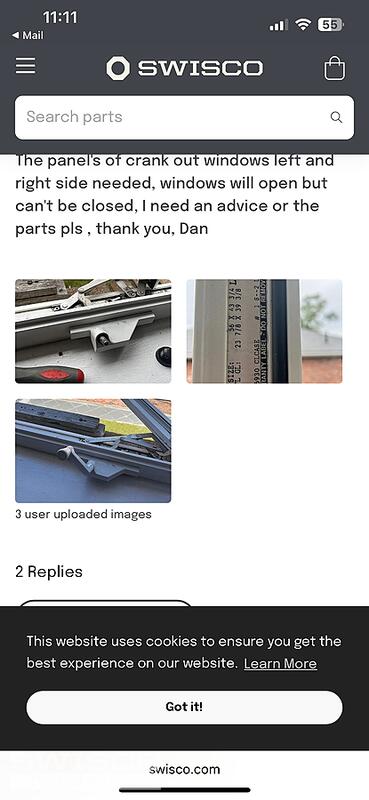

The panel's of crank out windows left and right side needed, windows will open but can't be closed, I need an advice or the parts pls , thank you, Dan

3 user uploaded images

4 Replies

Emily from SWISCO

Oct 22, 2025 9:30 am

Hi there!

Thank you for reaching out to us. Take a look at the 39-187 operator. This resembles your assembly. We recommend you review the specifications to confirm they match your repair needs.

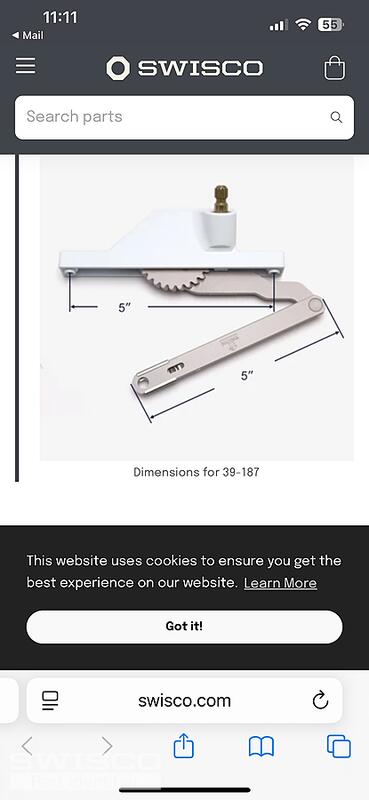

Dimensions for 39-187

Contractor from Boston

Oct 24, 2025 10:55 am

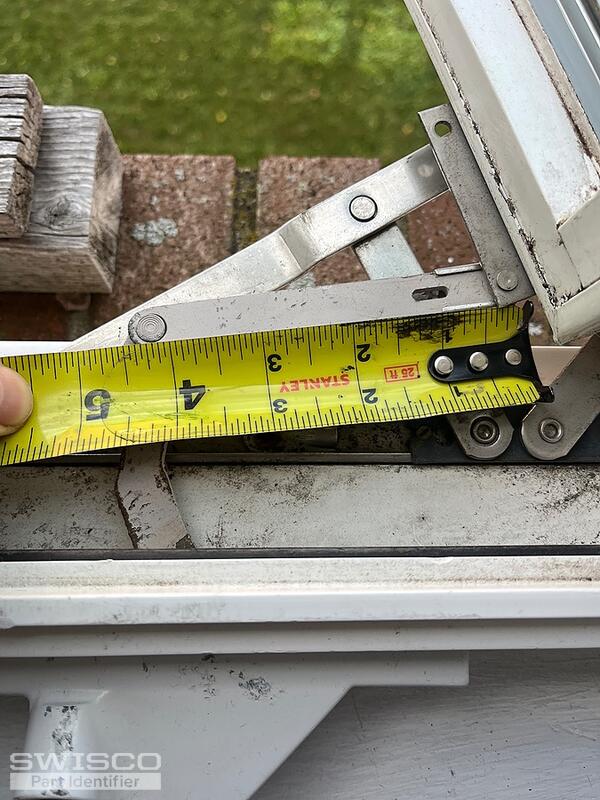

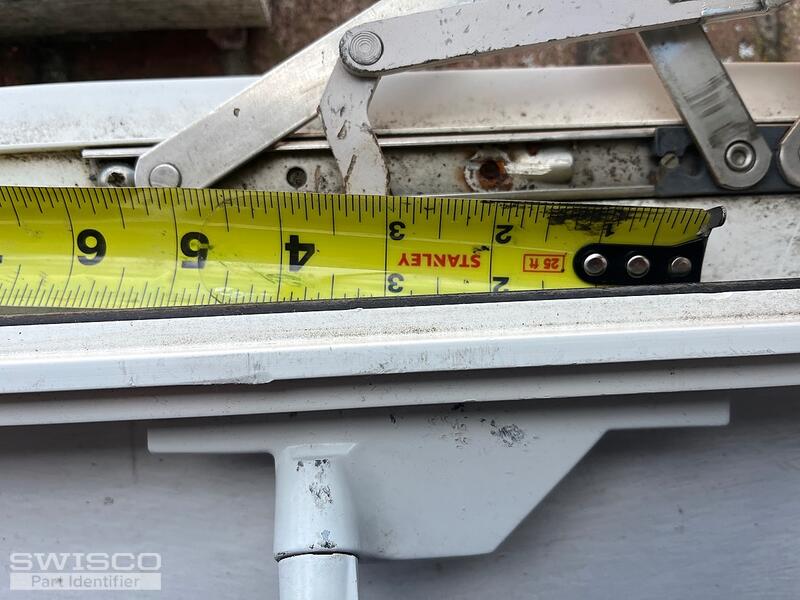

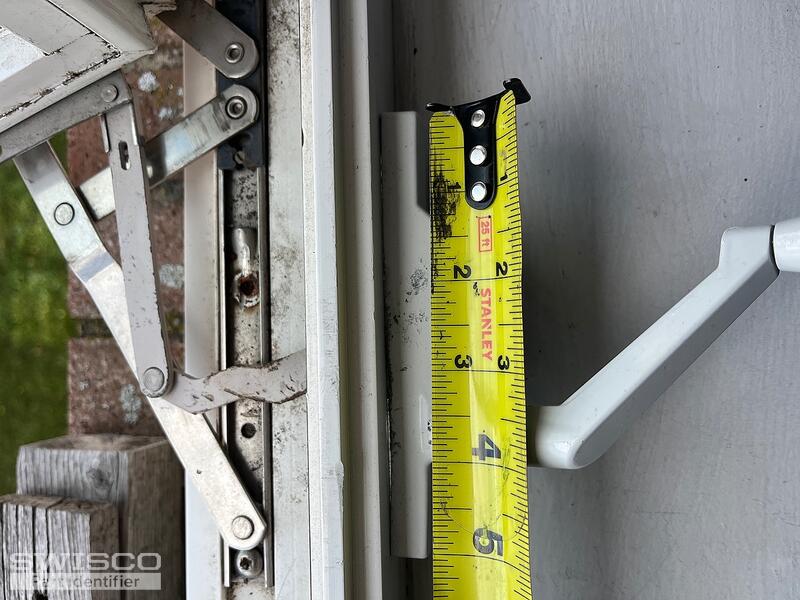

Yes that did help a lot by sending these pics I went back and took the exact measurements as it's shown in the pics that you posted, from the location of the screws in the base that is connected to the window I'm fine it's 5 inches length from one screw to the other, but the extended arm is 4.5 inches on mine and doesn't match the pic that you posted, I'm wondering if I should order it the 39-187 with the 5 inch extender arm or maybe there's a shorter arm , thanks

5 user uploaded images

Emily from SWISCO

Oct 24, 2025 11:46 am

I'm afraid we don't sell this operator with a 4-1/2" long arm. You could try installing it as is to see if it works, or you could try repositioning the bracket to make up the difference. If that doesn't work, you'll have to swap the new and old operator link arm. You'd have to drill out the new and old arm and use the 62-014B rivet. To install this rivet, you'll have to hammer it in; I recommend doing it over a metal plate if you have one.
