Window crank

Start a new Discussion

Quick Learner

Mar 13, 2018 8:30 pm

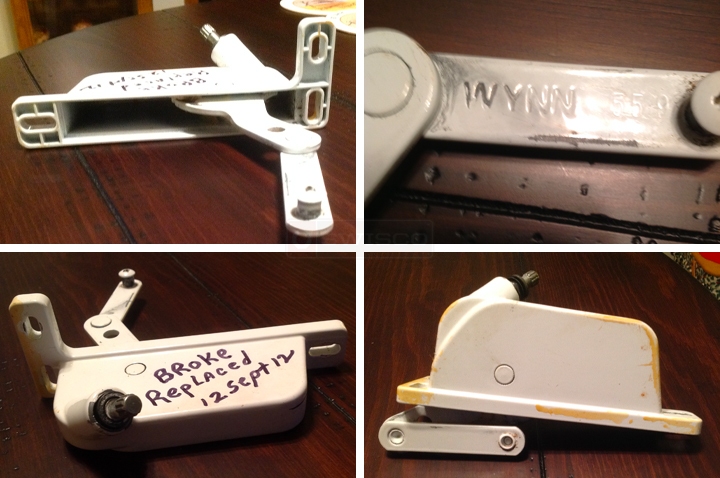

It measures 6 inches tall and 7/8 inches wide.

User submitted photos of a window operator.

4 Replies

Tom from SWISCO

Mar 16, 2018 11:01 am

Your operator's design is a bit weird, but we may still be able to find a match. Before I recommend anything, can you tell me the distance between the top screw hole and the bottom screw hole that is aligned with it, as well as the distance between the two bottom screw holes? Make sure to measure from the center of each hole. I'd also like to know the size of the link arm.

Quick Learner from Wyoming De.

Mar 18, 2018 3:01 pm

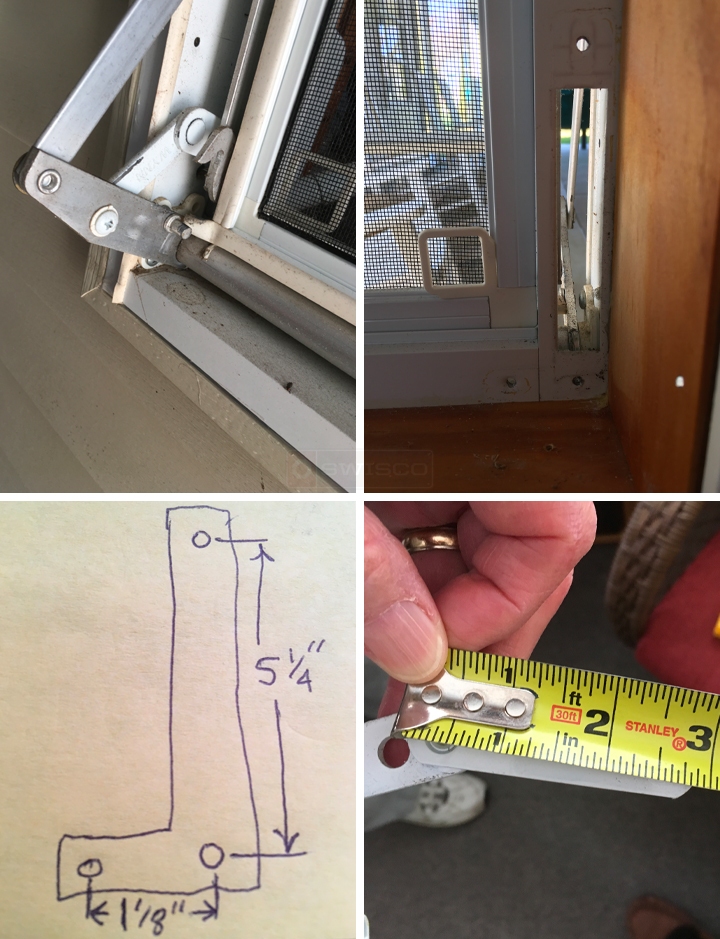

Look at pictures below. The link arm measures 2-7/8? long. One of the pictures is a diagram with measurements.

User submitted photos of window hardware.

Dave Sr. from SWISCO

Mar 21, 2018 1:54 pm

Take a look at the 39-025 operator along with the related video. This operator looks similar to yours and might fit. Compare it to yours to see if you can use it.
