Window crank with 3/8" link arm hole

A home owner from FT Myers, FL says:
Original windows to old house. No names/numbers. Replacement crank attaches to bar with screw, mine uses locking washer.
Thumbnail of the uploaded file named 15830910697342390434817840731354.jpg
Thumbnail of the uploaded file named IMG_20200301_144855529~2.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello! Looks like you're showing us two different operators. Am I right to assume that the top operator is a replacement that you tried out, but discovered that the hole was too small? If I'm right, can you tell me the diameter of the hole on your original?

I'd also like a picture that shows a clear angle of the installation screws on the top and bottom tabs. There should be either 3 or 4 screws altogether and I need one photo that shows all of them. Thank you!

A home owner from FT Myers, FL says:
Yes, photo sent shows new crank above old crank.

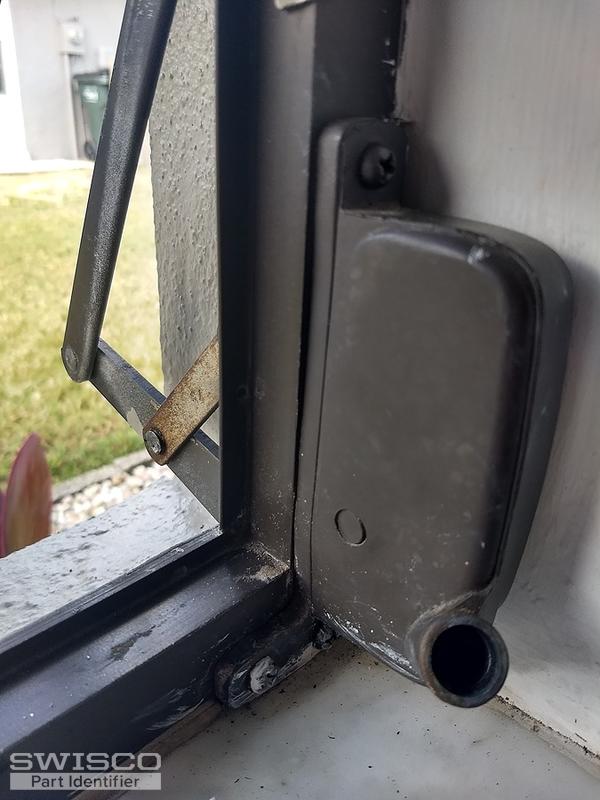

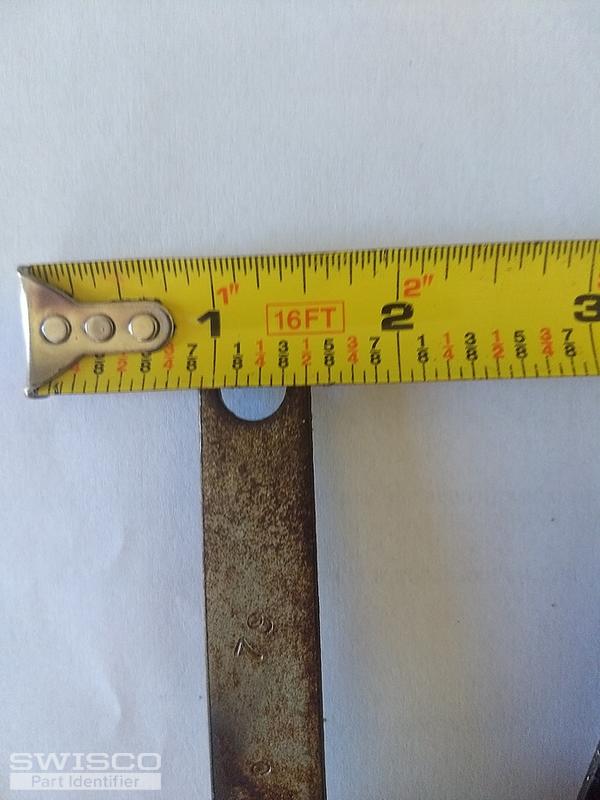

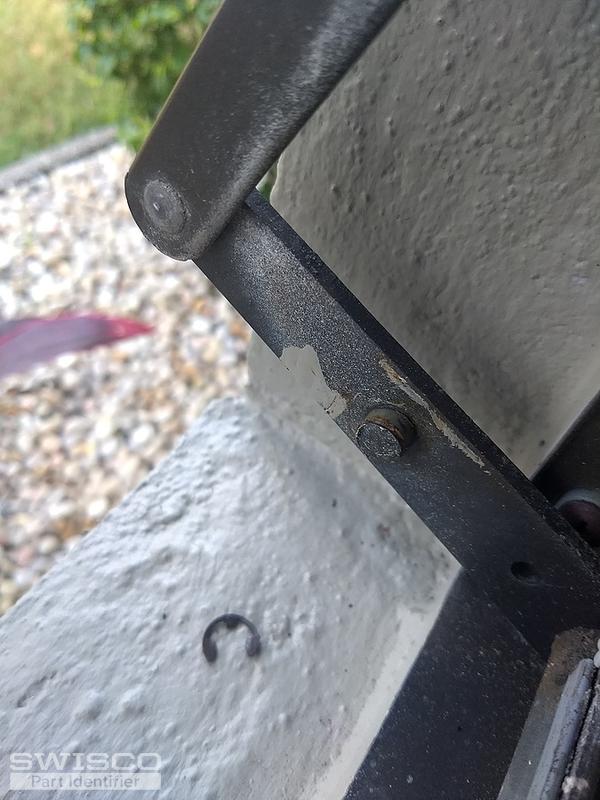

Sending photo of where operator link attaches to window torque bar. It does NOT use screw, just locking washer. Old crank hole is 3/8" diameter. Sending photo of only other screws used.
Thanks
Thumbnail of the uploaded file named IMG_20200313_123202756.jpg
Thumbnail of the uploaded file named IMG_20200313_123217980_BURST000_COVER.jpg
Thumbnail of the uploaded file named IMG_20200313_124450897.jpg
Thumbnail of the uploaded file named 15841189892085627659031590262335.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thank you! We have two operators with a similar hole pattern, a straight link arm, and a 3/8" link arm hole. See our 39-194 and 39-378. These are designed similarly but have different dimensions in other respects. I recommend looking both over to determine which, if either, can work for your window.
