Window crank

Home Owner from USA

Jan 27, 2021 8:26 am

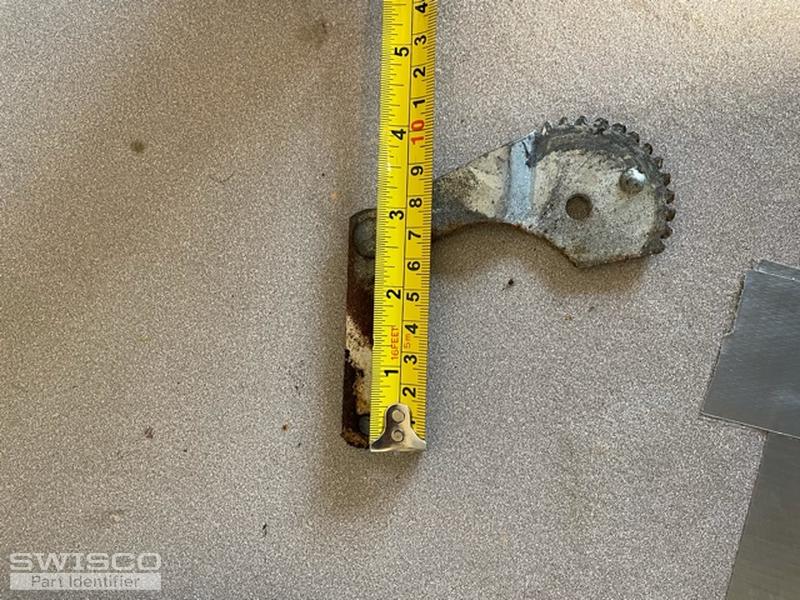

Looking for both left and right side window cranks for awning windows. Looking for white color. See attached photos - bottom holes measure 1 3/8 inch and length holes are 5 1/4 inches. Please let me know if you have any that would work. Thanks!

4 user uploaded images

4 Replies

Bob from SWISCO

Jan 27, 2021 2:28 pm

Check out our 39-060 and 39-061 Keller Window Cranks. These look similar, but review the dimensions to confirm they match up.

Home Owner from USA

Jan 29, 2021 5:03 pm

Thanks - but it looks like the 39-060/61 arm is only 2 1/4 - and mine is 3 inches. Could that work? Any other recommendations?

Bob from SWISCO

Feb 1, 2021 8:57 am

I should have added this one caveat when it comes to awning operator dimensions--the exact length of the link arm honestly isn't too important. There's a good deal of 'play' allowed with it for these operators to function properly. So long as the hole at the end of the link arm matches, and the other hole spacing dimensions align, then the 39-060 and 39-061 should work for you.
