Window crank

A quick learner from 11722 says:
This is the hand crank to open side windows on a living room exterior window. One crank is broken.

Base Dimension: 5 7/8 long by 1 3/8
Thumbnail of the uploaded file named Folding handle
Thumbnail of the uploaded file named Handle and cover
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to look into this but we would like to see your operator with the window open so that the arms that move the sash are fully visible. This will help us identify your hardware, as well as thick handle and cover options would be compatible. Thank you!

A quick learner from 11722 says:
I hope these will be helpful.

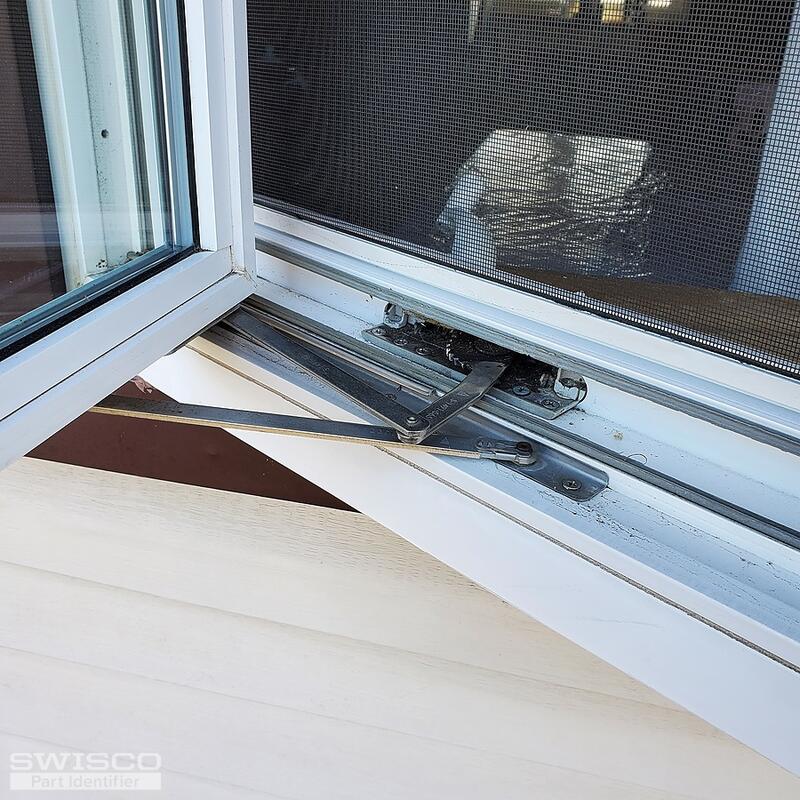

Thumbnail of the uploaded file named Operator arms
Thumbnail of the uploaded file named Window linkage

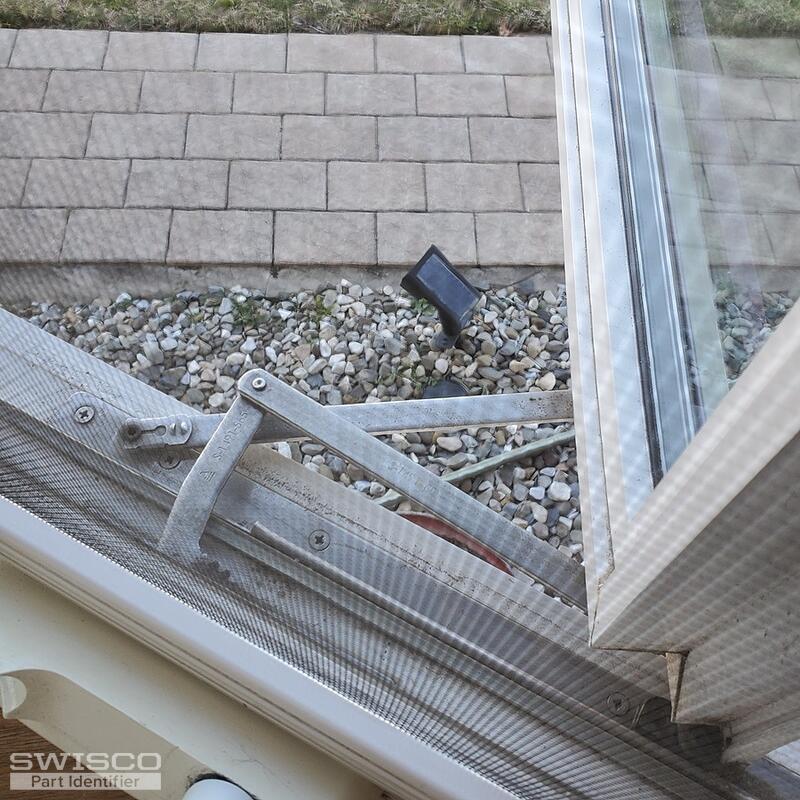

Thumbnail of the uploaded file named Top down arms
Profile picture of Casey
Casey from SWISCO responded:

Thanks for getting back to us. It looks like you may have an Ashland operator. If so, unfortunately, we do not carry handle and cover kits that would be compatible with your assembly. We do offer the 39-114L and 39-205 folding handles that attach to an 11/32" diameter operator spline. If your spline has the same diameter, one of our handles may work but we do not offer a compatible cover. I'm sorry that we won't be able to offer more assistance with this repair but please let us know if you have any other hardware questions. Thanks for posting.

A quick learner from 11722 says:
Thanks
