Window crank

Home Owner from NJ
2 3/16" arm with a 3/16" thr'd hole to connect to window hardware
3 user uploaded images
8 Replies
Home Owner from NJ

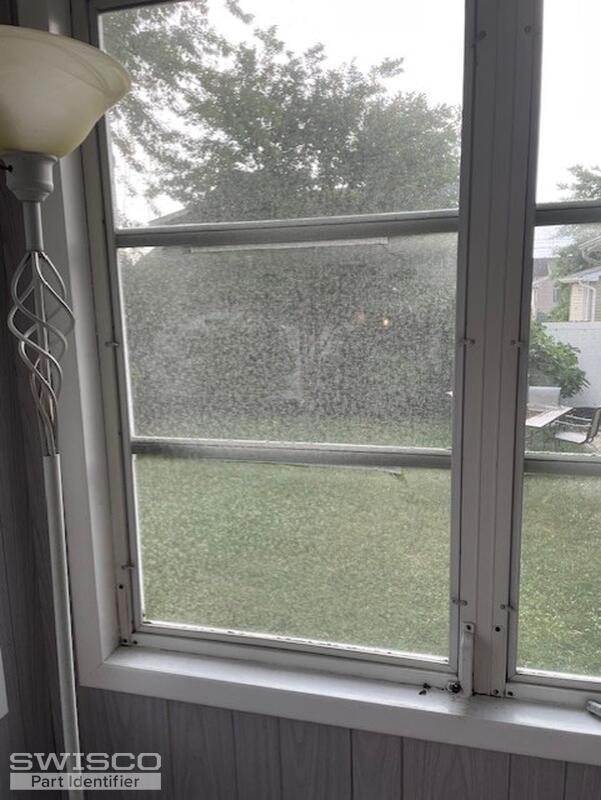

Picture of the whole window attached

1 user uploaded image
Emily
Emily from SWISCO
SWISCO
Expert

Hello there!

Thanks for reaching out to us. We don't sell an operator with your exact specifications. Please allow us to look further into this. We'll reach back out as soon as we have more information.

Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Take a look at the 39-025 operator. I recommend looking to see how your operator link arm attaches to the linkage in your window. The 39-025 is attached to the awning window using a screw and threaded bushing. Review the specifications and see how they compare with your old assembly.

Dimensions for 39-025
Dimensions for 39-025

View of the offset of 39-025
View of the offset of 39-025

Home Owner from NJ
That's pretty close if the attachment screw thr'd is 3/16".
I'm pretty sure I can use it.
Thanks for your help

Fred
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

Happy to help, Fred. Good luck with the repair!

Home Owner from NJ
Is the screw attachment arm 3/16" thr'd if so it's perfect ?
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

The attachment screw that the 39-025 operator uses is the 33-117 which is a 10-24 screw with a large "Truss head". The attachment screw is included with the operator.
