Window crank

Friend from John

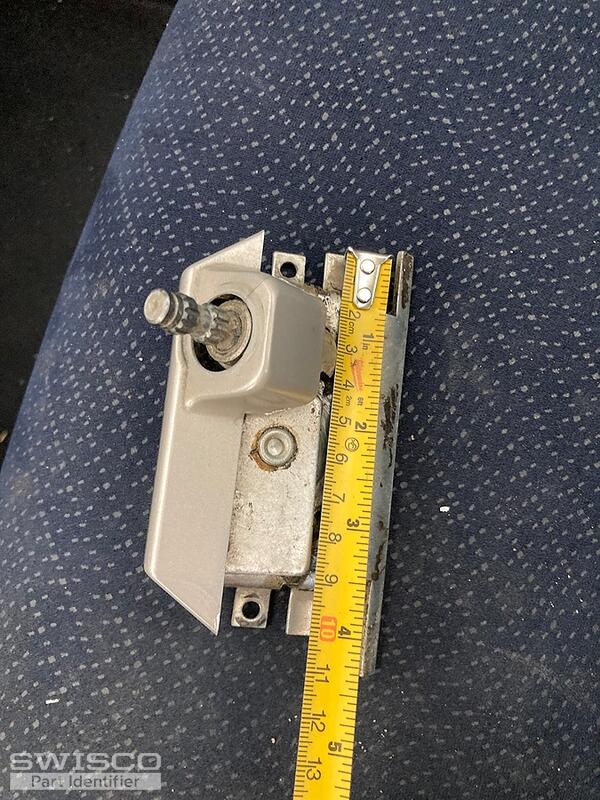

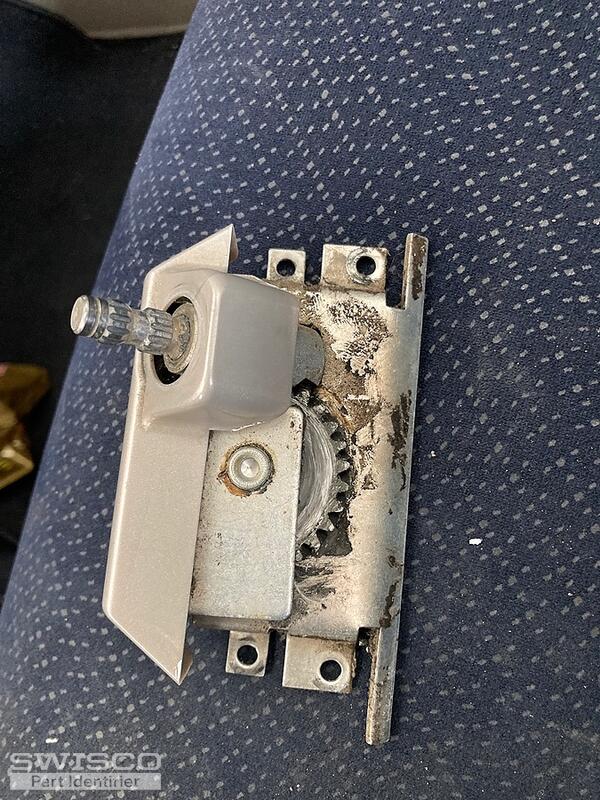

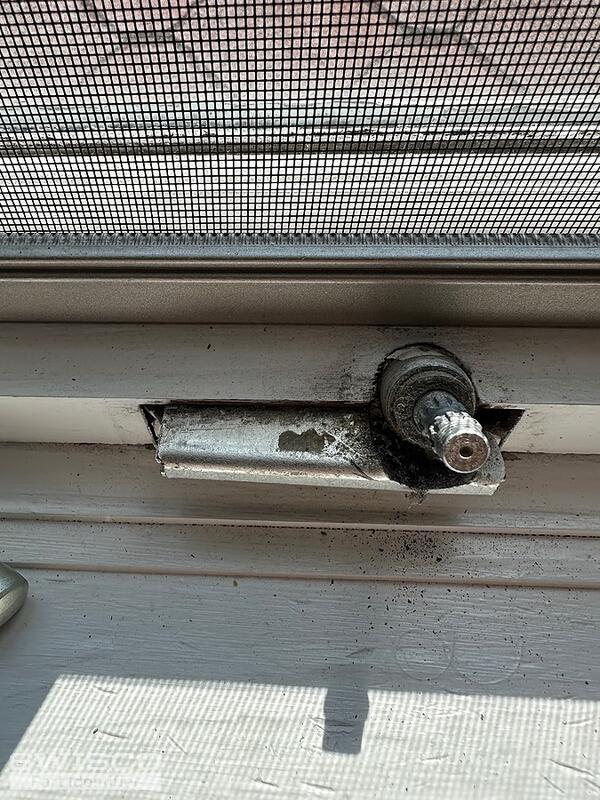

Hi! I need this crank, arm and handle. Window opens from left to right
5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. This looks the operator body of a Pella mechanism. Pella has a few different operators that use this base. I need to see an undamaged version, with the arm that connects to the window sash still intact. Seeing the shape of that arm will help us narrow down what you need. Many thanks.

Friend from John

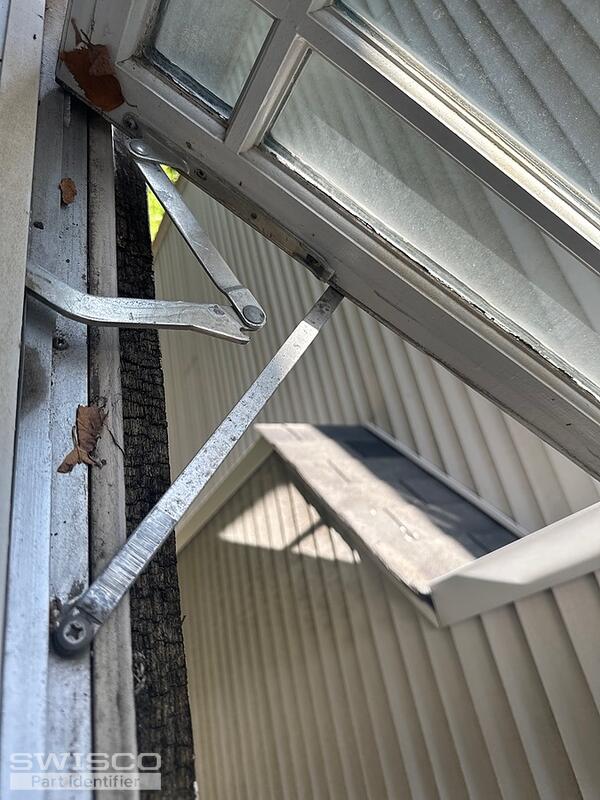

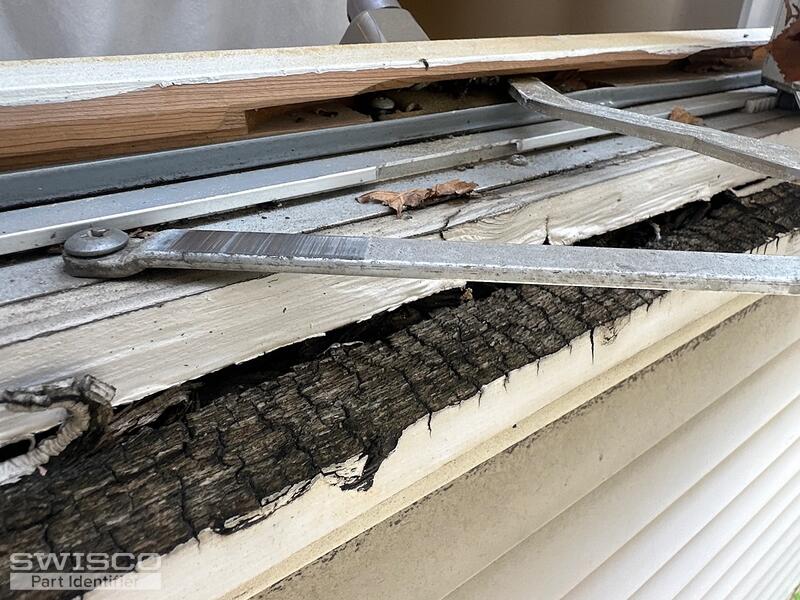

This is the another window with that type of crank but opens from right to left
3 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

That's a huge help, thanks! See our 39-176. This is the full operator assembly including both the base and the arms, which are not meant to be separated. We also sell the 39-175 for the opposite side, as well as the 39-109B handle.

The cover you have is unfortunately discontinued and not something we can provide, but as long as the original is still in good condition then it can be reused.

Dimensions for 39-176
Dimensions for 39-176
