Contractor from Daytona Beach, Florida

Oct 13, 2024 6:52 pm

1/4" treaded hole,
I need 1 window crank and the bolt that goes into the treaded bracket

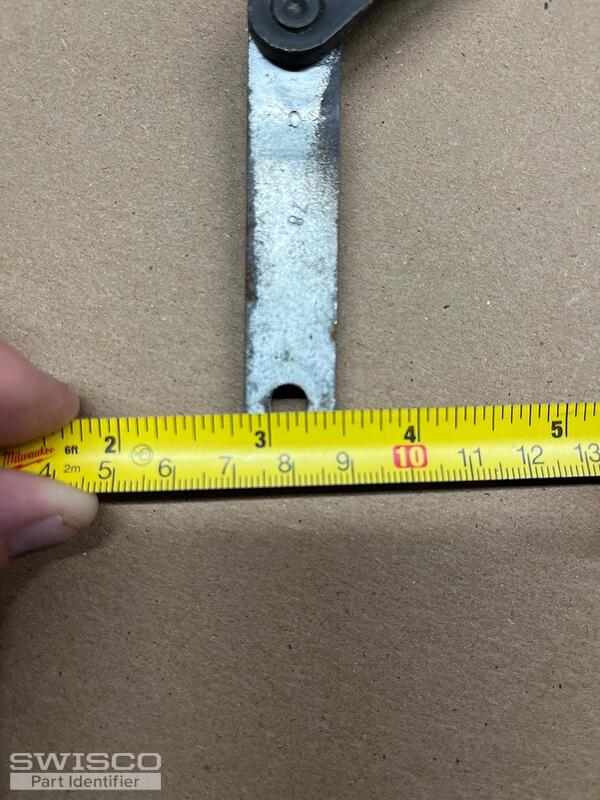

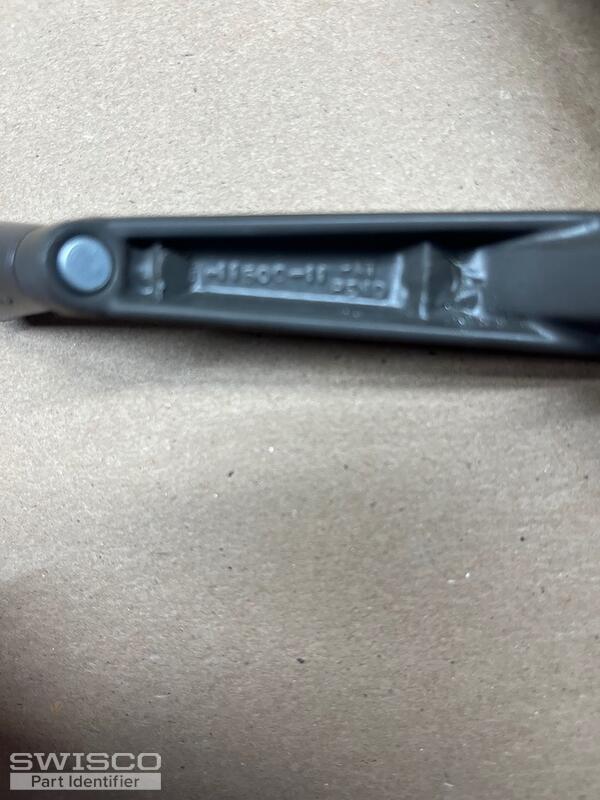

5 user uploaded images

6 Replies

Casey from SWISCO

Oct 16, 2024 11:21 am

Hello,

Unforutnately, I don't believe that we carry an exact match for your operator. The 39-056 and 39-054 are similar but both have 5/16" - 18 thread holes in the link arms. We can't make any guarantees but review the specifications below to see if either option might work for your application. Thank you.

Dimensions for 39-056

Dimensions for 39-054

Contractor from Daytona Beach, Florida

Oct 17, 2024 6:10 pm

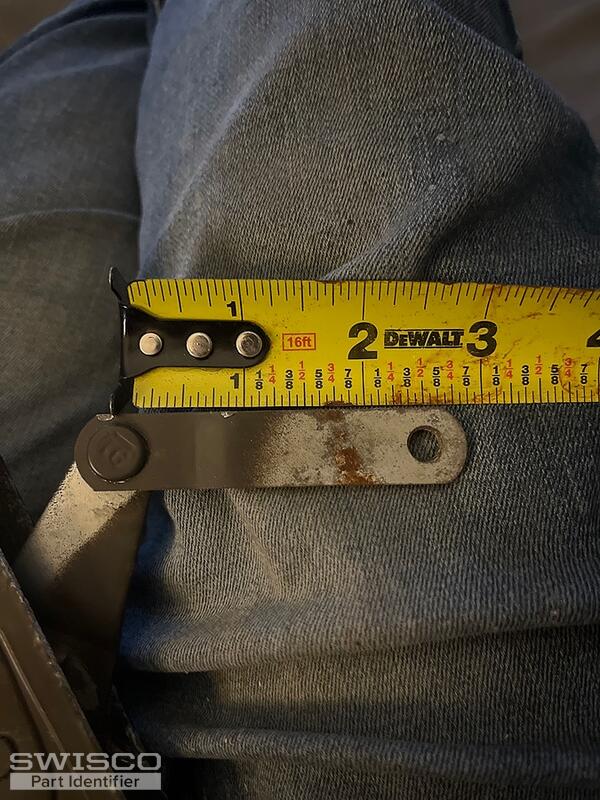

Hello, on 39-056 the piece with the measurement of 2-3/16 that piece on mine is 2-1/2. All the other measurements are the same.
Do you have one with 2-1/2"

1 user uploaded image

Casey from SWISCO

Oct 18, 2024 8:24 am

Unforutnately, we do not carry a version of the 39-056 operator with a longer link arm but that wouldn't necessarily be a dealbreaker since these assemblies have a good amount of play in the gears. The play can compensate for differences in arm length in some cases. If you decide to give it a try and run into any issues, our return policy can be found here.

Contractor from Daytona Beach, Florida

Oct 18, 2024 9:10 am

Ok, how do I order it

Casey from SWISCO

Oct 18, 2024 9:32 am

The 39-056 can be purchased directly on our website or by giving our customer service team a call at (888) 991-1929.
