Window crank

Quick Learner from Venice Florida

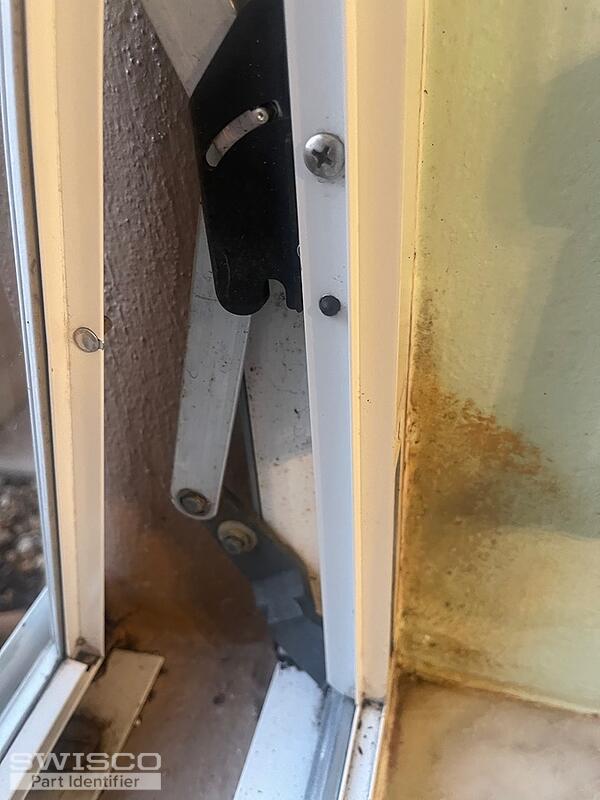

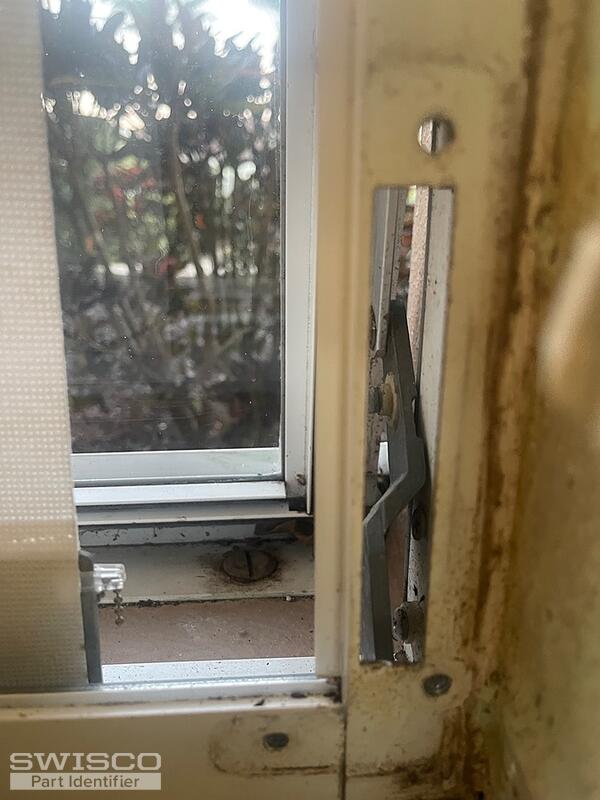

I need to replace these window cranks on a 4 awning window house was built on 1992.
5 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your awning operator resembles the 39-259 at first glance. We also offer the 39-258 opposite-handed version if needed. Review the specifications below to confirm if they match your assembly. Thanks for posting!

Dimensions for 39-259
Dimensions for 39-259

Quick Learner from Venice Florida
The crank came but I need the metal clip that secures the arm to the 3/8 hole. That did not come with the crank.
Casey
Casey from SWISCO
SWISCO
Expert

These operators generally use the 33-206 washer and 33-081 screw shown under the related items section of our product pages to attach the link arm to the internal linkage.
