Window crank

Question

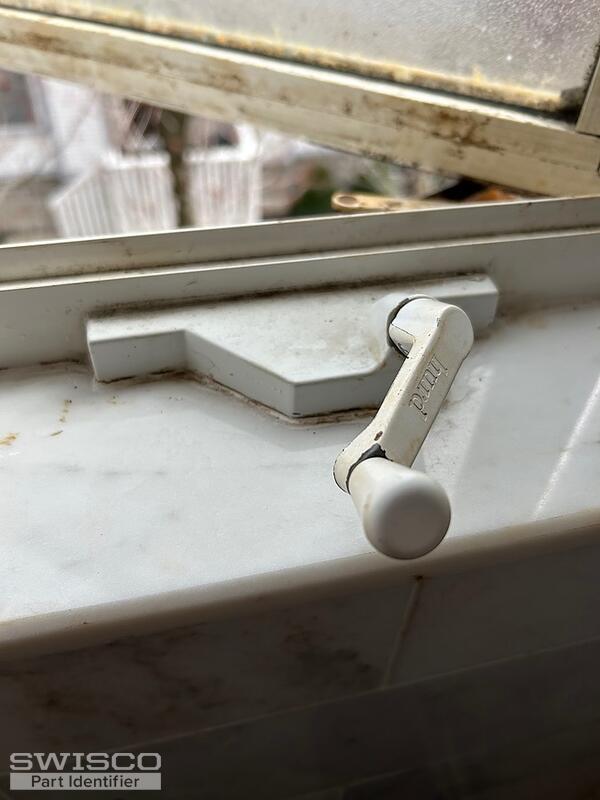

I am looking to replace the window crank in my Hurd window cthat was installed roughly in 1998. I believe it is part no 39-090 but am j sure. I do the measurements and it is the 5 inch variety. Can you also confirm the replacement handle and any associated screws and clips. Thanks

Jasmine · Accepted Answer

Hello,

Thanks for reaching out to us! This operator appears to be closer in style to the 39-188 Sash Dyad Crank. You'll notice the arm has a 'w' shape, whereas the 39-090 is more of a zig-zag shape.

The handle can be replaced with either the 39-1l4L Crank Handle or the 39-205 Truth Folding Crank Handle.
