Window crank

Home Owner from Utah
The gear slips when I try to close, so trying to figure out a replacement part.
2 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

It sounds like your window operator has become stripped. When this occurs, the entire operator needs to be replaced. To determine the correct replacement, I'll need to see a photo with the window open. I'll need to see the arm(s) on the operator and how it connects to the bottom of the swinging window sash.

Please let me know if you have any additional questions!

Home Owner from Utah

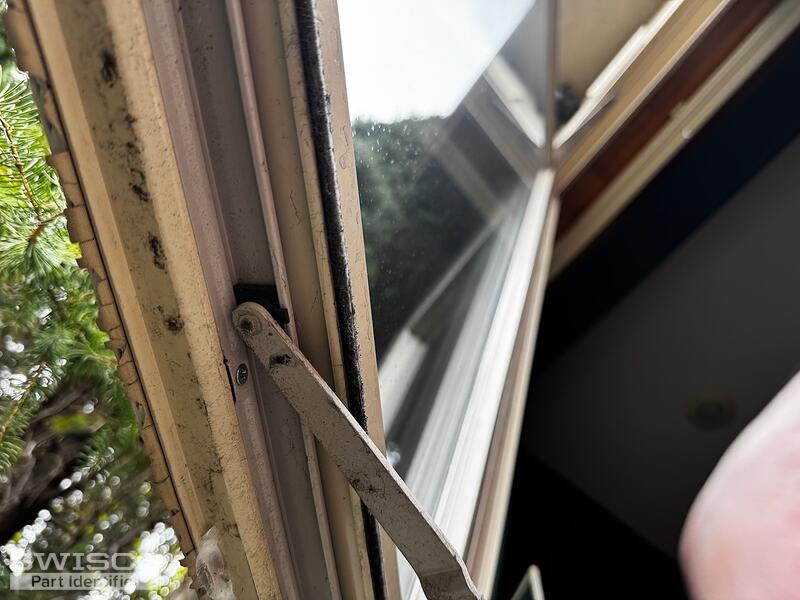

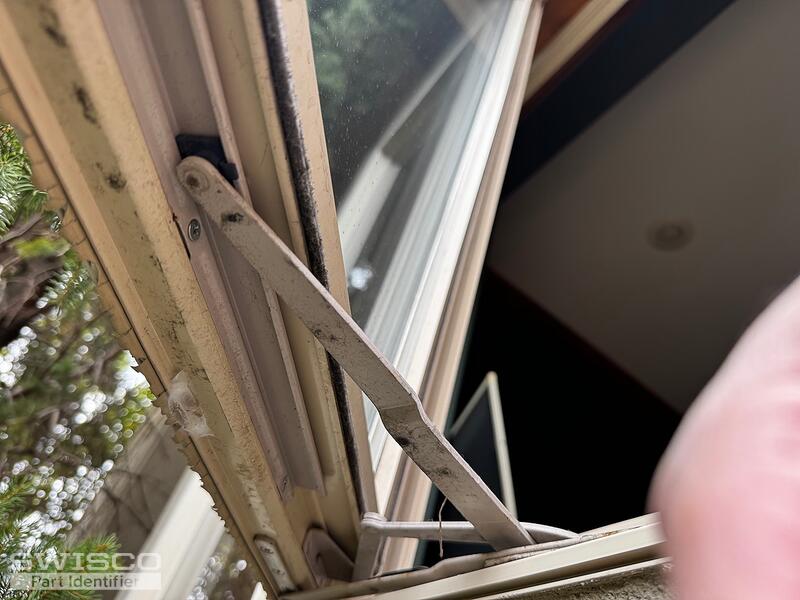

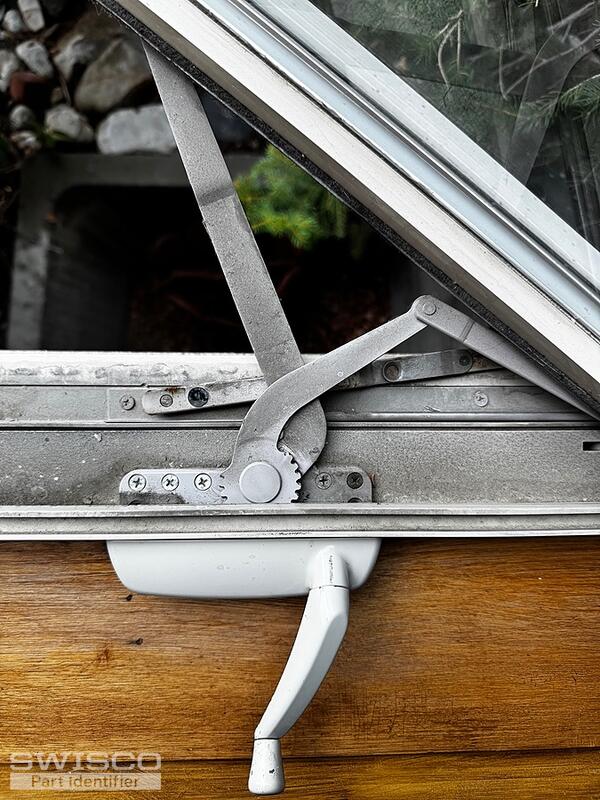

Here are some photos, let me know if you need more.
4 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. You'll need the 39-253LB Encore Dual Arm Operator to replace yours. The piece at the end of the arm is the 39-529 Truth Hardware Track Slider, which slides is the 39-528 track.

If your cover cannot be removed from your operator, you'll also need the 39-451 cover kit. The folding version is the 39-375.

The opposite versions of the operator and covers can be found tagged below.

Dimensions for 39-253LB
Dimensions for 39-253LB
