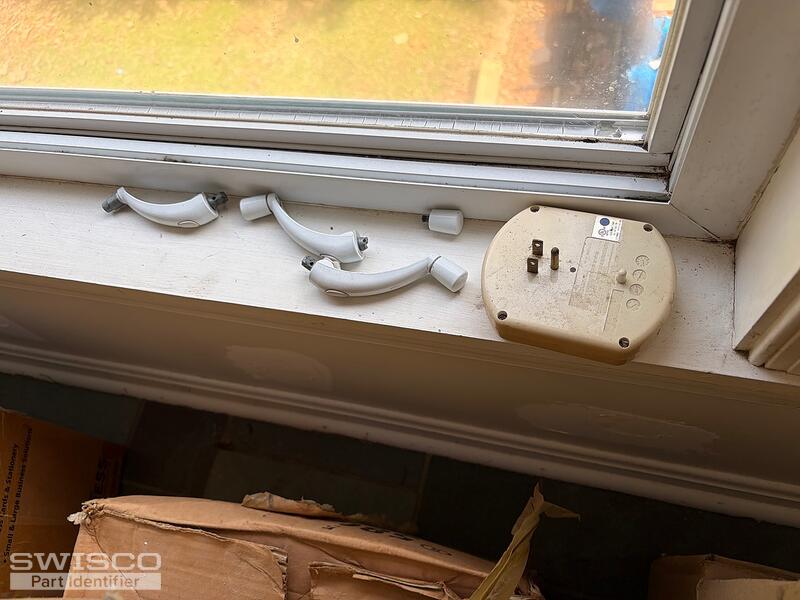

Window crank assembly

Handy Person from Delaware


GU OP05



HG04 track GU window



Replacement operator arm (OP05 2020)



HG04-2001”


4 user uploaded images
2 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Your operator appears to be a match for our 39-329. More specifically, it's an older version that used a "female" 5/16" hex spline. The modern version of this operator uses a "male" 11/32" ribbed spline. As such you'll also need the 39-232 handle.

Please let me know if you had any follow up questions.
