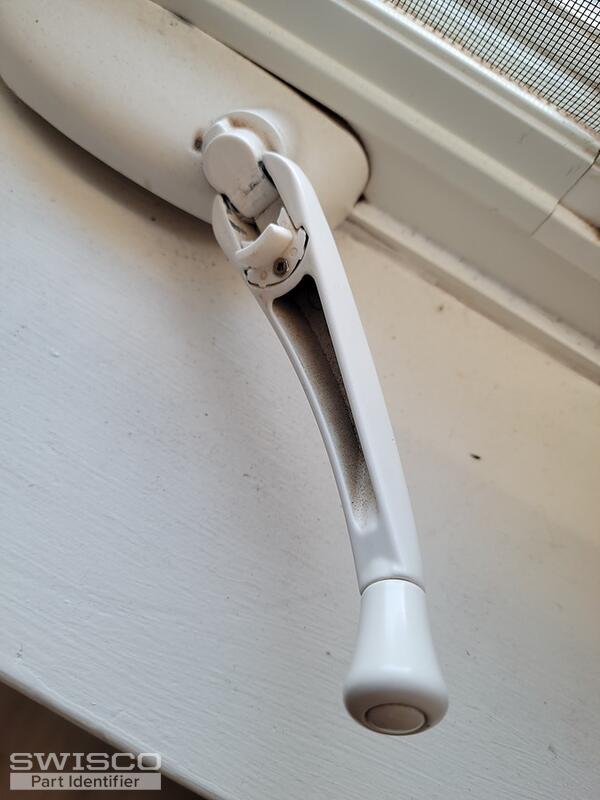

Hello, I found the Roto folding crank handle that looks a lot like the one I am looking for for SNE Enterprise windows and was wondering if you would be able to tell me if the base attachment piece of this part would fit an SNE window. If not, do you have something that would fit properly or know somewhere else that would have the part I am looking for?
Thank you!
Window crank for SNE windows
Home Owner from Wyoming
Aug 7, 2023 10:07 am
1 user uploaded image
4 Replies
Lauren from SWISCO
Aug 8, 2023 10:54 am
Hello, thank you for posting,
I agree that your handle resembles the 39-232 Roto folding handle. For a good fit, you will want to remove the current handle and measure the operator spline. It should have a 11/32" diameter. Please review and let me know if you have any additional questions!
Home Owner from Wyoming
Aug 15, 2023 7:12 pm

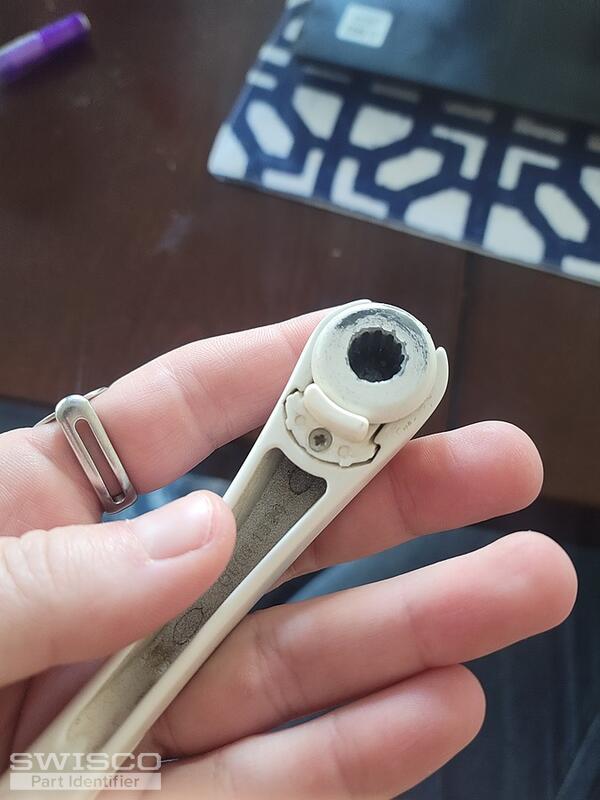

This appears to be the correct size, however, the handles I currently have have ribbed edges on the inside of the attachment area. Does the Roto handle have this ribbed interior?
Thank you.
Thank you.
1 user uploaded image
Lauren from SWISCO
Aug 16, 2023 7:43 am
Hello,
Please see the interior view of the 39-232 handle below:
Dimensions and alternate view of 39-232
Let us know if you have any additional questions!
