Window crank handle for Milgard Window

Quick Learner from Oregon

Feb 2, 2021 4:10 pm

Hello,

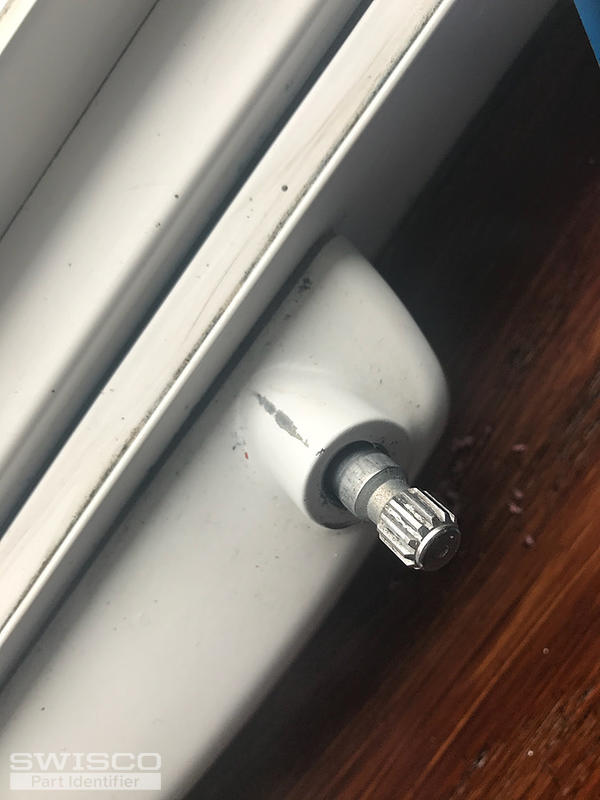

I work at a school and we need to replace a few of these window cranks, they have either disappeared or broke over the years. The windows are Milgard, the product # on the window is D-X71645. Any help you could provide is appreciated!

1 user uploaded image

7 Replies

Bob from SWISCO

Feb 3, 2021 3:11 pm

I am confident we can help, but I can't cross-reference that code to a specific operator. Can you show me the entire mechanism, including the link arm(s) that push and pull the window? A bird's eye view is best. From there I'll do my best to find exactly what you need.

Quick Learner from Oregon

Feb 8, 2021 4:34 pm

Thanks for the response! I'm working offsite but I had my supervisor take a few pictures that I hope are what you need. Can you please let me know if these help identify the replacement crank?

2 user uploaded images

Casey from SWISCO

Feb 9, 2021 8:13 am

Your operator looks a lot like our 39-239B. Take a look and if the specifications match up, the 39-375 and 39-376 handle and cover kits should work for your operators. Thank you!

Quick Learner from Oregon

Feb 10, 2021 12:30 pm

Hello,
Thanks for the recommendations! Our current windows don't have the fold in handle so I am not sure how that would work. I just received a picture of the mechanism that I think might be helpful in figuring out for sure what we need. Can you please let me know if this picture changes the recommendation?

Crissy

1 user uploaded image

Casey from SWISCO

Feb 10, 2021 1:00 pm

Our folding handles should work for you but you're welcome to use our 39-451 and 39-452 if you'd prefer to keep the same standard handles to match your existing hardware.

Quick Learner from Oregon

Feb 10, 2021 1:09 pm

Hi Casey, great! Thanks so much for the response, I appreciate it.
