Window crank handle needed. : SWISCO.com

Handy Person from 64068

May 17, 2023 2:51 pm

I'm looking for a white crank handle for a ViWinTech window. Enclosed are photos of the current handle. It 4" in length, has 12 teeth and the hole is 1/4" in diameter. The word Truth is stamped around the hole opening.

2 user uploaded images

6 Replies

Tom from SWISCO

May 18, 2023 12:18 pm

Hello! This handle looks like a match for our 39-114L. This handle is commonly used on Truth brand parts and it has an 11/32" spline size. That's probably the most important dimension so make sure to verify that size on your own part before you buy anything; 1/4" is not a common size at all and I've never seen that on this kind of handle. I highly recommend triple checking that to be sure.

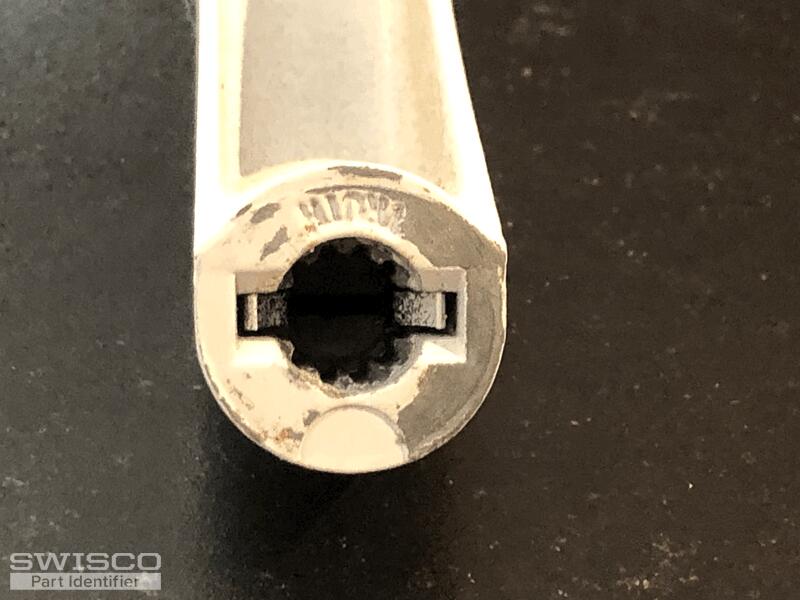

Alternate view of the gear hole

Handy Person from 64068

May 20, 2023 9:08 am

Thanks for the information. I'll remeasure the hole diameter.

Tom from SWISCO

May 22, 2023 8:07 am

Sounds like a plan! Please let me know if you had any other questions and I would be happy to advise.

Home Owner from Maryland

May 22, 2023 12:00 pm

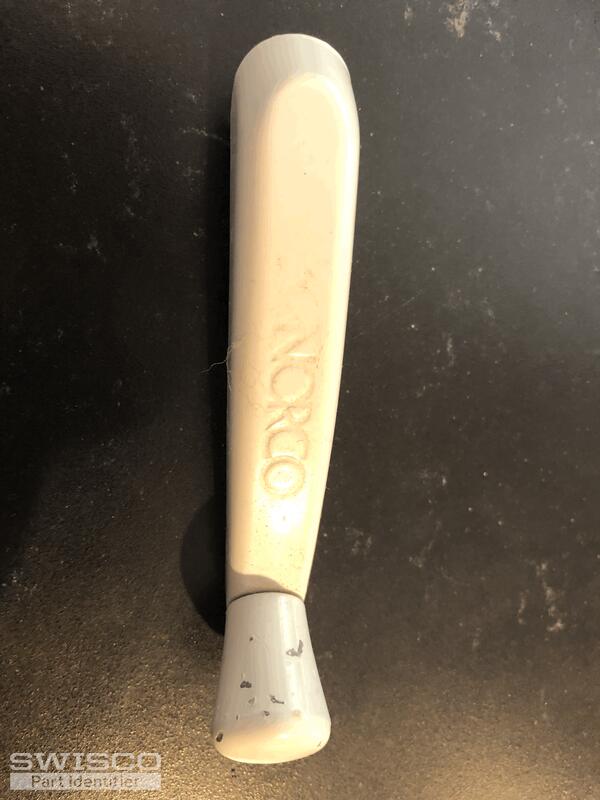

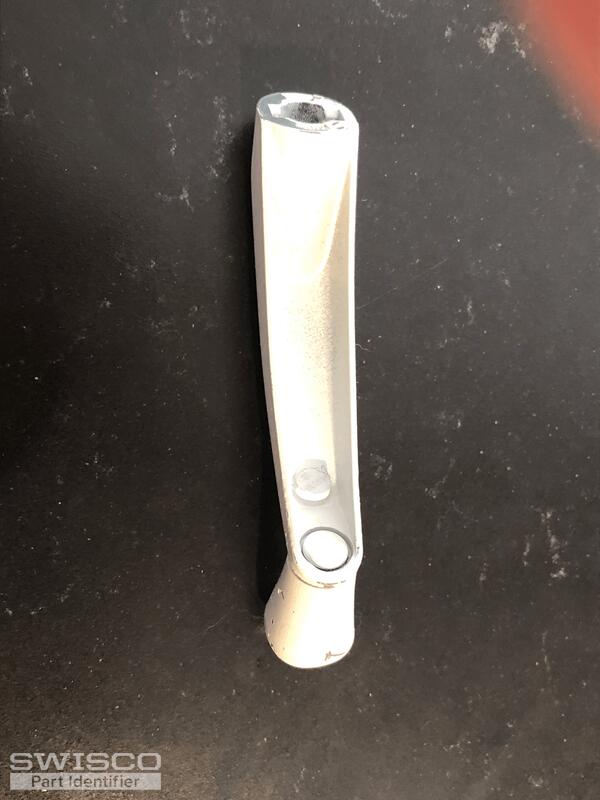

Will item 39-114L work as a replacement for a Norco window crank pictured below? The opening is either 11/32 or 3/8.

4 user uploaded images

Tom from SWISCO

May 22, 2023 2:36 pm

Thanks for reaching out to us. I agree that the 39-114L looks like a match, but the hole diameter will be the most important determining factor. You will need to verify whether it's 11/32" or 3/8". Note that the 39-114L will only work if it's 11/32".
