Window crank mechanism

Handy Person from Minneapolis Minnesota

Jun 11, 2025 7:56 am

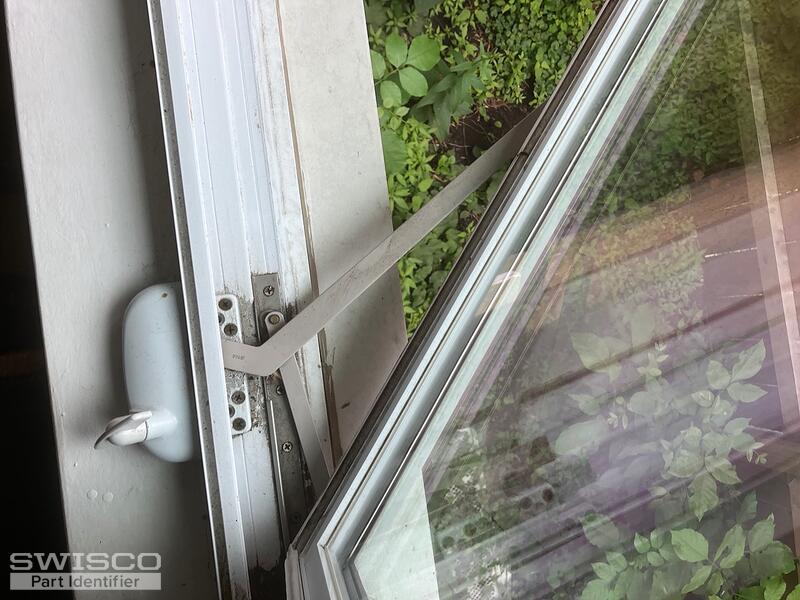

Arm has the number j0906 stamped in it. The window in question is missing it's mechanism, this is a photo of the same type of window.

2 user uploaded images

5 Replies

Handy Person from Minneapolis Minnesota

Jun 11, 2025 8:12 am

I see the term is casement window operator. I need the entire mechanism, crank, arms, someone removed all of it.

Bob from SWISCO

Jun 11, 2025 3:40 pm

Thanks for posting. I am confident we can help, but can you show me the operator in its entirety, including the arm that moves the window? A bird's eye view with the window open would be best. We should be able to narrow it down from there. Thanks.

Handy Person from Minneapolis Minnesota

Jun 12, 2025 12:32 pm

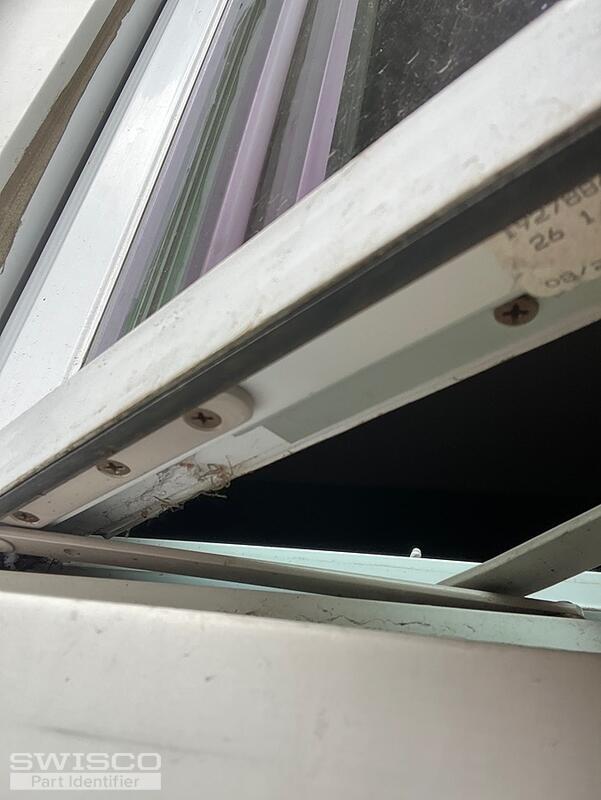

Thanks so much for getting back to me, here are some more pics.

4 user uploaded images

Bob from SWISCO

Jun 15, 2025 11:51 pm

Thanks for getting back to me. This looks like the 39-399 ROTO Straight Arm Operator. Just make sure the dimensions match what we show below. For a new Track Slider, see the 39-541. We don't carry that exact T handle, so you'd have to reuse your old one if possible--or, go with a different style, the folding 39-232. Let me know if you have further questions.

Alternate image for 39-399
