Window crank mechanism and lock
Quick Learner from Roslyn PA
Aug 1, 2024 3:31 pm

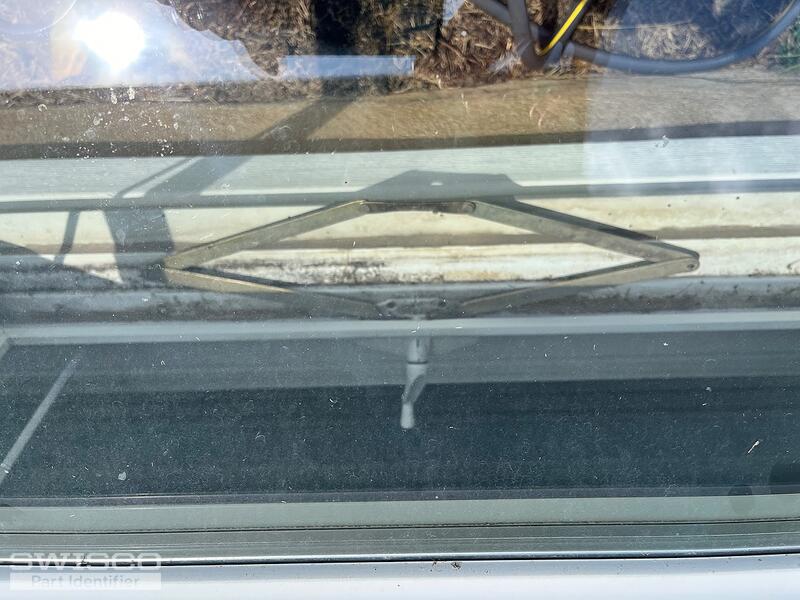

Hello I need parts for this window. Can you identify the maker by these pictures? I need the scissors opening mechanisms
2 user uploaded images
4 Replies
Emily from SWISCO
Aug 2, 2024 12:28 pm
Hello there!
Thanks for reaching out to us. I can't be certain of the lock when it's installed but the 38-036 comes to mind. I recommend you remove yours to see if the specifications align.
As for the operator, can you open the window and show us a photo of the arms that move the sash?
Alternate view of 38-036
Quick Learner from Roslyn PA
Aug 3, 2024 12:23 pm
The crank mechanism has separated from the window and is bent
2 user uploaded images
Emily from SWISCO
Aug 5, 2024 10:45 am
Your awning operator can be replace with either the 39-083 or the 39-140 Dual Arm Crank. Be sure to confirm the wingspan measurement of the operator to determine which of these is the right replacement.
I've also tagged a few of the other compatible hardware pieces below.
Dimensions for 39-083
Dimensions for 39-140
