Window crank operator replacement

A handy person from Stuart FL says:
January 2, 2021
LH Louvered window crank.
Arm 1 7/8 inches
Lever 3 inches
Hole 1/4 inch
Opening 4 1/2 inches
Mounting 6 inches

Thank you,
Thumbnail of the uploaded file named 7ACE3400-2D94-43AA-9E1F-7C29E61BE64D.jpeg
Thumbnail of the uploaded file named 3B756B6B-BAEF-44FD-BACE-598CF8BFDCD8.jpeg
Thumbnail of the uploaded file named D5F89D8C-21B4-4372-A946-9E3C8A73B2E6.jpeg
Profile picture of Tom
Tom from SWISCO responded:
January 5, 2021

I'm having a little trouble finding this operator. Before I go any further, may I ask you to take a picture showing the bottom two installation holes? This is one of the key features of this type of part and I can't fully make yours out. Hopefully that will narrow down the list of possible replacements. Thanks!
A handy person from Stuart FL says:
January 5, 2021

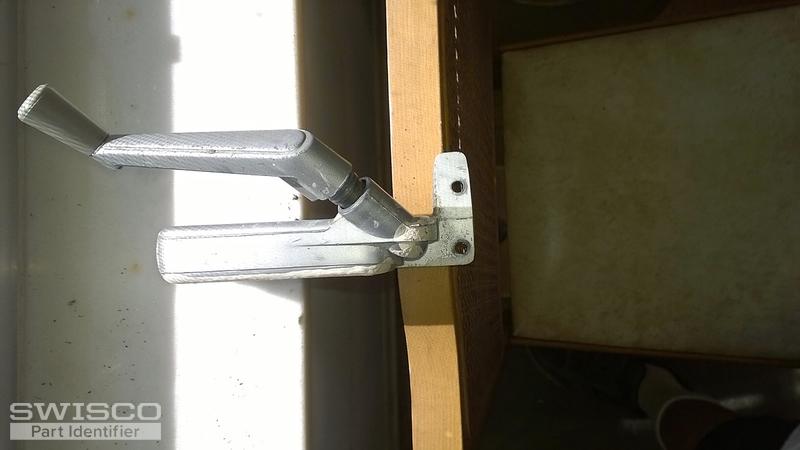

Hi Tom, thanks for researching. Attached is a picture showing the bottom mounting holes.
Thumbnail of the uploaded file named A31563A1-5C43-4BFC-9EB0-704080EF5522.jpeg
Profile picture of Tom
Tom from SWISCO responded:
January 5, 2021

Thank you. That's a huge help. The best match I was able to find in our inventory was the 39-060, though your dimensions don't line up with ours precisely. I recommend reviewing our dimensions just to see if you could get this to work anyway.
A handy person from Stuart FL says:
January 6, 2021
Tom, fantastic! Perfect replacement, ordered.
Profile picture of Tom
Tom from SWISCO responded:
January 6, 2021

Awesome, glad to hear it! Please let me know if you had any other questions.
