Window crank replacement.

Home Owner from Illinois

Apr 23, 2023 2:10 pm

Hello I am try to find the whole window crank system plus handle for this type of awning crankout window I have. I can take handle apart if needed I just thought maybe with this photo of sticker on window it might be possible to identify what I need. ? Thanks any information would be greatly appreciated.

I submitted a photo of the outside of crank assembly also. I don't have the handle but need to purchase one too. I can take the unit apart for better identification and photos if need be. just thought the sticker would prived enough info ?

Jeff

2 user uploaded images

8 Replies

Tom from SWISCO

Apr 24, 2023 1:41 pm

Thanks for reaching out to us, Jeff. I'm afraid that sticker doesn't tell me anything about the hardware used on your window. We should be able to help with this operator, but I need to see the entire mechanism in order to ID a match. Would that be possible?

Home Owner from Illinois

Apr 24, 2023 5:56 pm

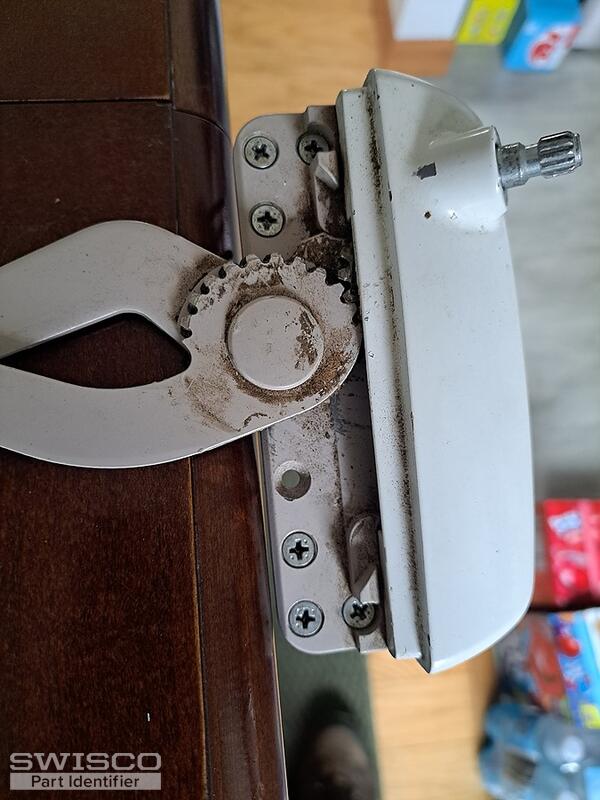

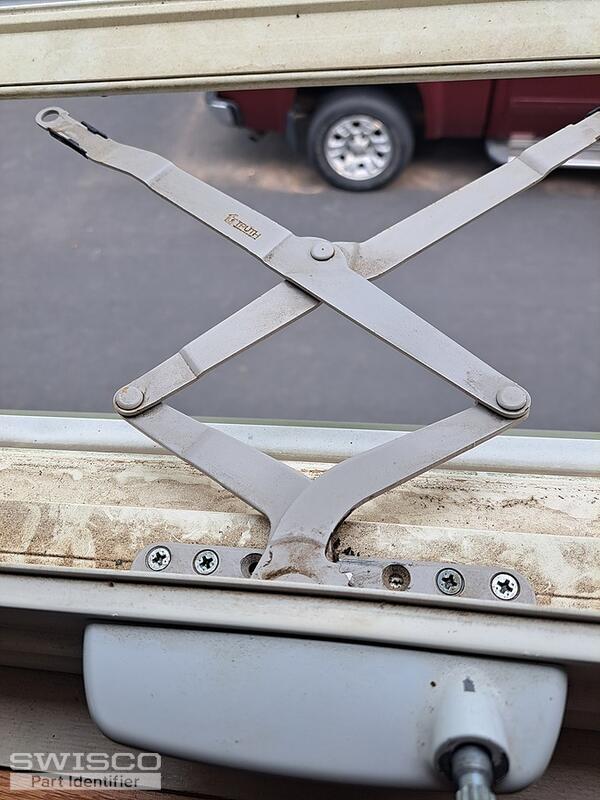

Hello Tom here is a few more pictures with measurements.

4 user uploaded images

Tom from SWISCO

Apr 25, 2023 11:03 am

Thank you! These photos are a huge help. based on the design of your operator, I recommend our 39-239B. I feel very confident that this is what you want.

Just note that ours is the Encore style, which is how Truth makes these nowadays. What that means is that the cover is a separate piece that's sold by itself, as opposed to something physically built into the base. See our 39-451.

Home Owner from Illinois

Apr 25, 2023 11:28 am

Tom
I just ordered both of what you recommended. Thank you so much for your help I really appreciate it. Enjoy the rest of your day . Jeff

Tom from SWISCO

Apr 25, 2023 11:43 am

You're welcome! We really appreciate the order, too, it means a lot. Best of luck with this project and please let me know if we can be of further assistance.

Home Owner from Illinois

Apr 29, 2023 7:26 pm

Tom

I wanted to reach out to you again to tell you I received the window crank assembly and handle . I installed them today & they work great! Thank you again for all your help I really appreciate it.
Jeff

Tom from SWISCO

May 1, 2023 9:26 am

Awesome! Thanks so much for the update, Jeff. I'm glad to hear that everything worked out.

Please feel free to reach out again if you had any other projects you needed help with.
