Hi Team,

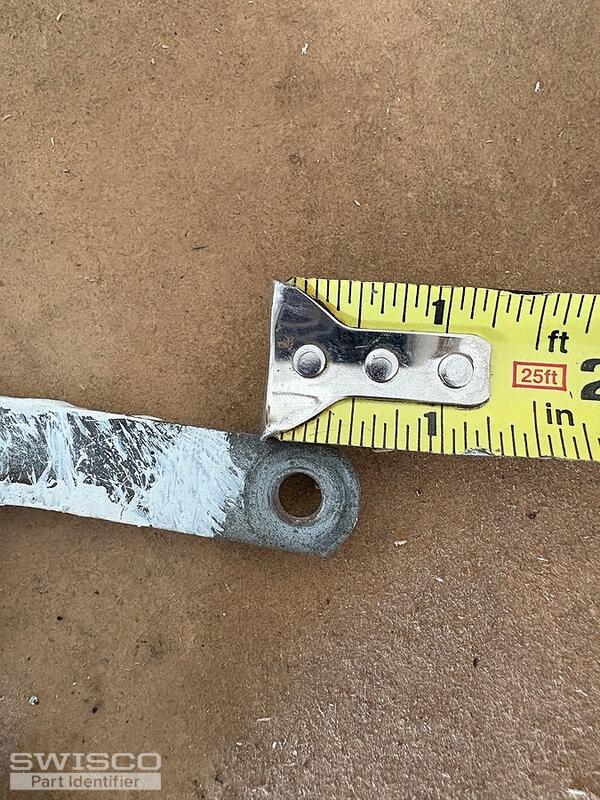

I live in south Flordia, house built in 1989. Majority of my windows has this type of crank. This one the handle broke. Can you assist in helping identifiy a replacment, and would you like any additional photos?
Window crank replacement
Quick Learner from Jupiter, Fl
Feb 24, 2025 1:21 pm
4 user uploaded images
4 Replies
Jasmine from SWISCO
Feb 24, 2025 3:46 pm
Hello,
Your window operator reminds me of the left-handed 39-085 Crown Window Crank; the right-handed version is the 39-084. Take a look over the diagrams below and compare the dimensions to confirm that this is the right fit.
You may also need the 33-081 screw and the 33-206 Shoulder Bolt Washer for the installation.

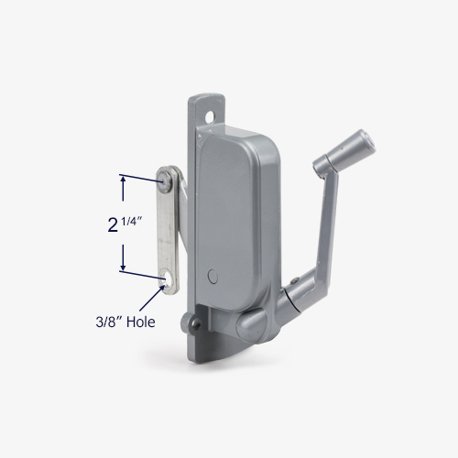

Dimensions for 39-085

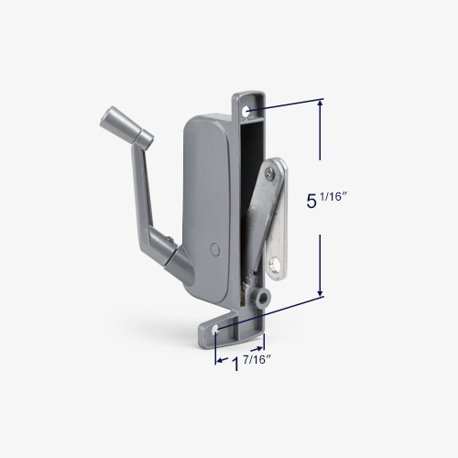

Alternate view of 39-085
Quick Learner from Jupiter, Fl
Feb 24, 2025 4:01 pm
Perfect! Yep I believe that will work. Thank you for all of you help. I will order it up.
Jasmine from SWISCO
Feb 25, 2025 9:01 am
My pleasure to assist! Be sure to take a look our installation tutorial below if you have any questions.
Have a great day!
