Window crank replacemeny

A quick learner from Mullica Hill, NJ says:
Hi,

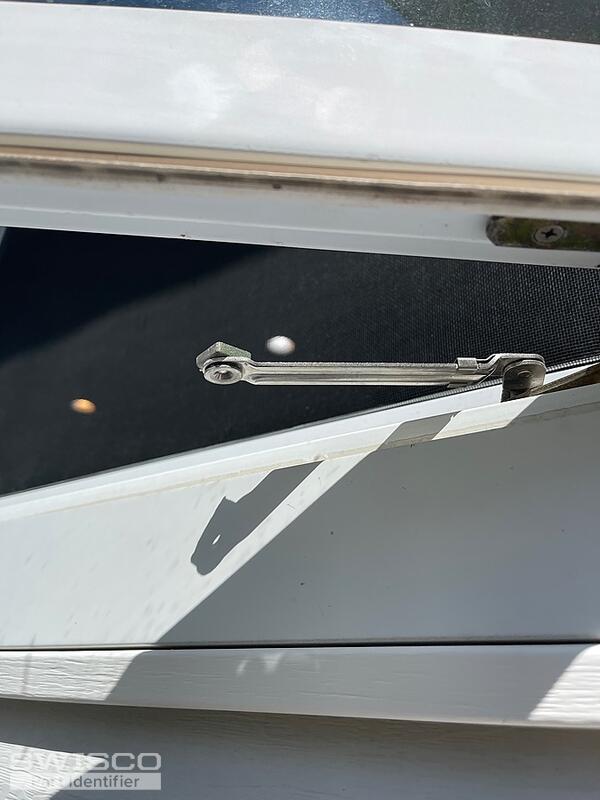

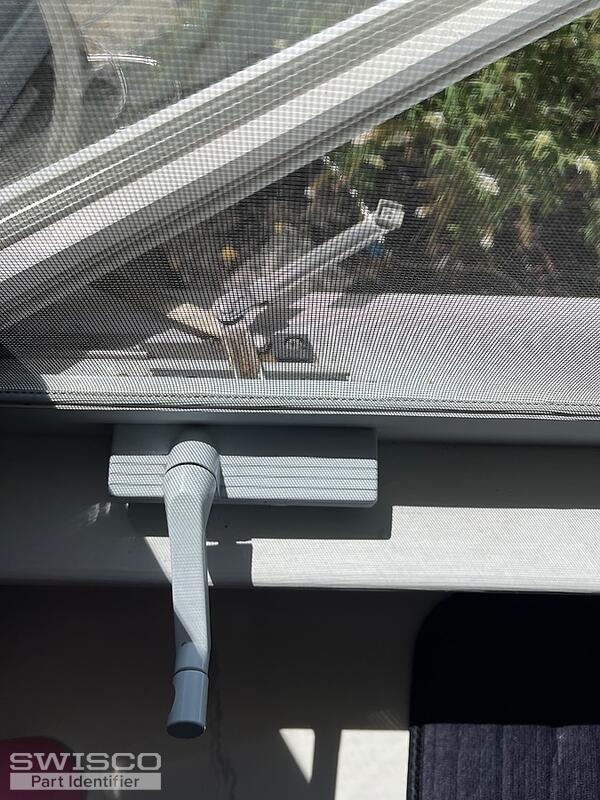

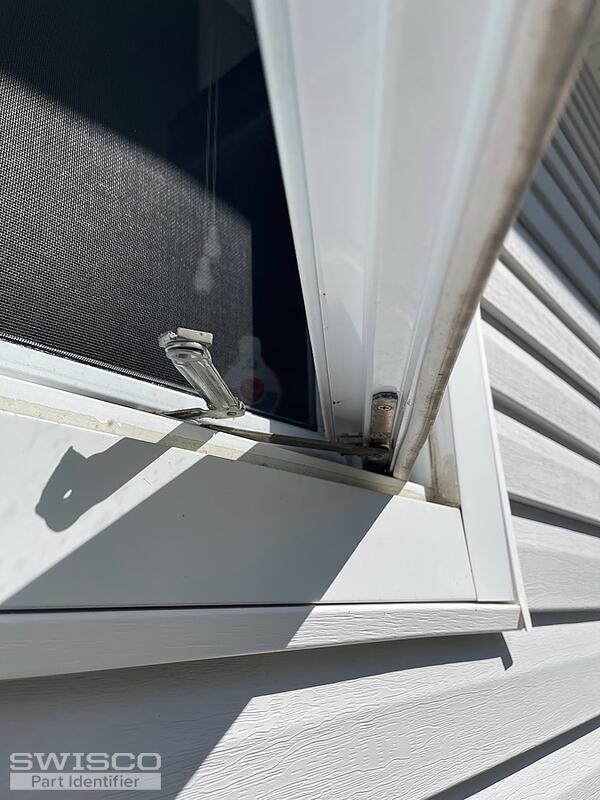

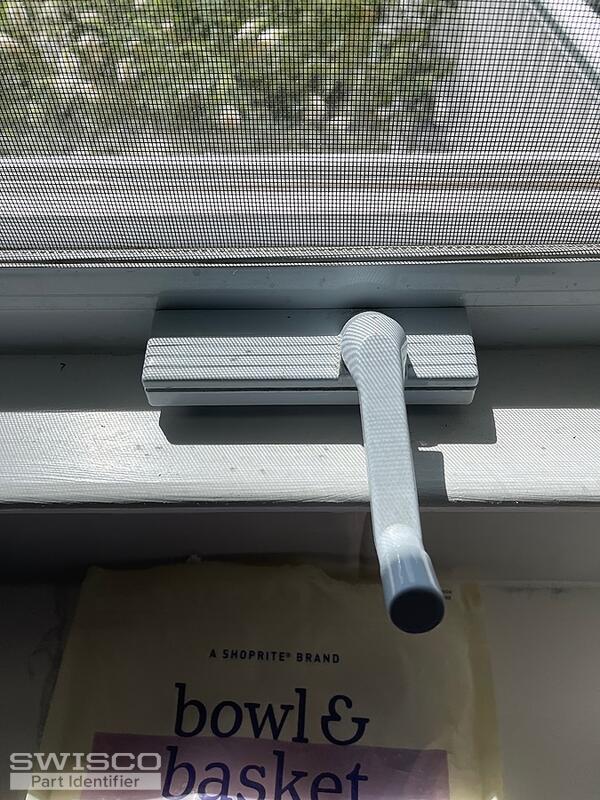

I need some help finding the replacement for the right and left window cranks in the pictures attached.

Thank you,

Terry
Thumbnail of the uploaded file named BDA26982-9283-48A6-A1EE-32B34A19978C.jpeg
Thumbnail of the uploaded file named 22C6BBE8-205A-432A-B4A6-04F987859F2E.jpeg
Thumbnail of the uploaded file named D1FF6B45-E6D8-46B3-98C9-1B85CDD09D76.jpeg
Thumbnail of the uploaded file named 13069B47-6445-4CC3-B9BA-E86CCE3F9EDE.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

This looks like an older version of the 39-091 and 39-092 Short-Arm Roto operators. They can use either the 39-224 Folding Handle or 39-230 Handle.

Please note that the long bracket arm that connects the short arm of the operator to the window is no longer made. Unfortunately, Roto has discontinued a lot of the hardware used with these operators and there are no known replacements at this time. You will need to reuse your old bracket arm if possible. Take a look and thanks for posting.
