Window crank with the guts

Quick Learner from Westminster Colorado

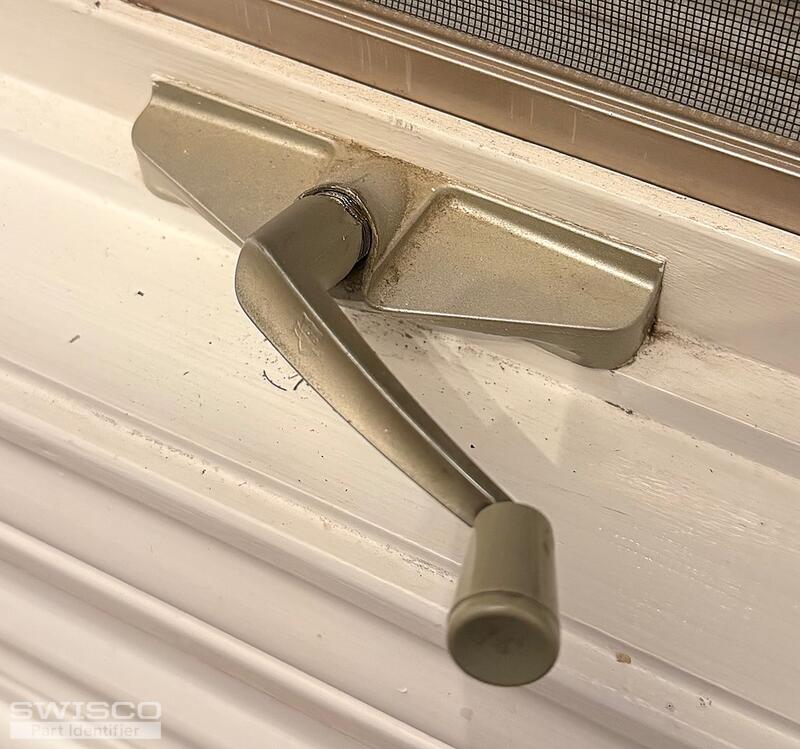

please advise if you have the full part with all the parts
1 user uploaded image
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to help, but the handle and cover do not tell us the operator you have. To get started, we'll need to see your options with the window open so the arms that move the sash are fully visible. That will help us narrow down your options. Thank you!

Quick Learner from Westminster, CO 80031

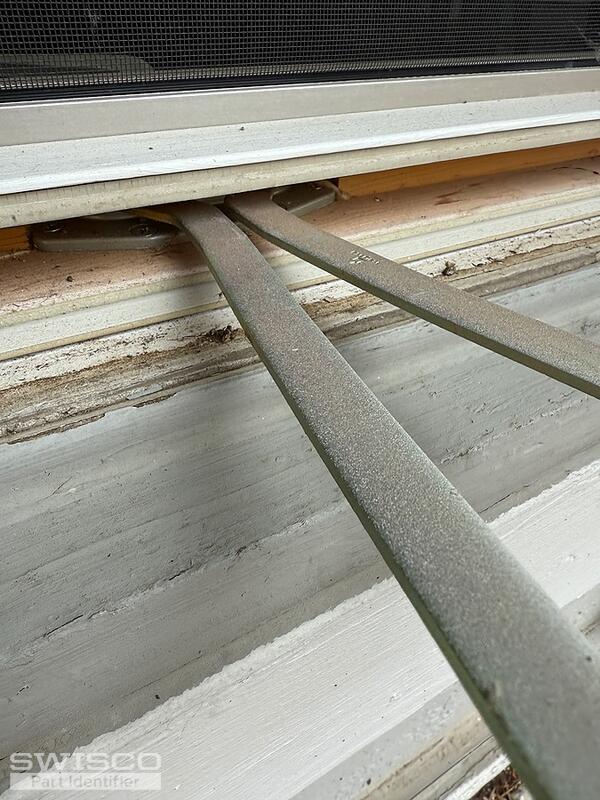

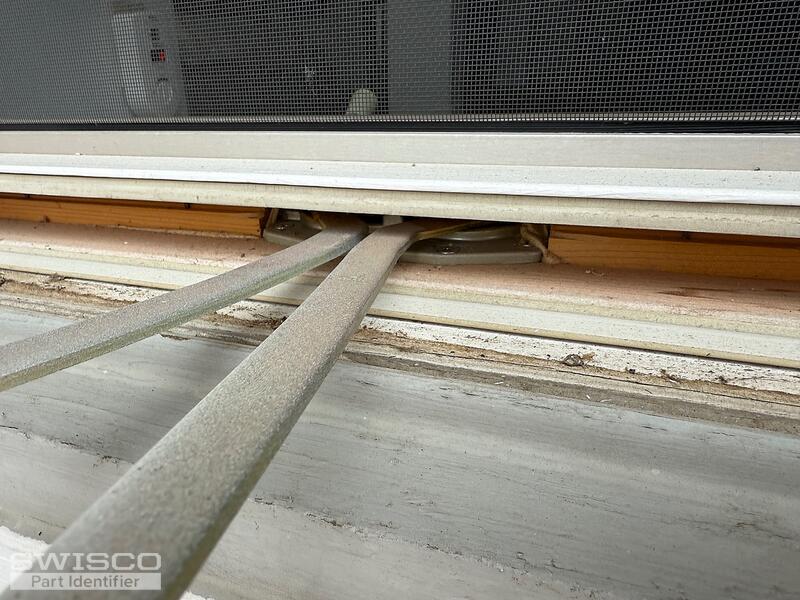

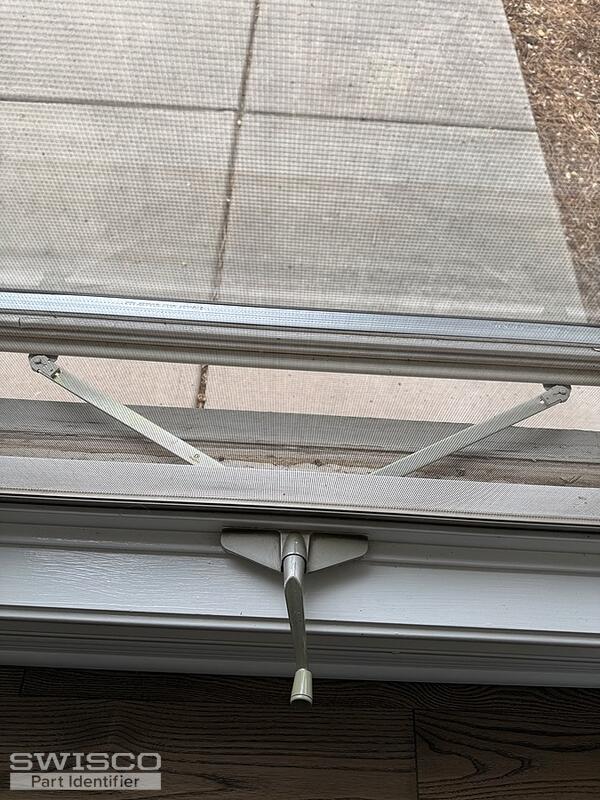

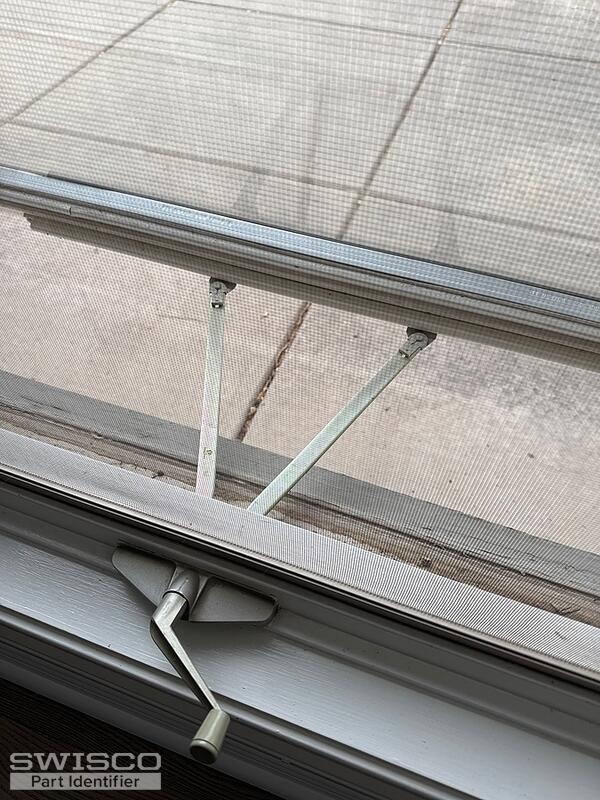

Please review the attached as requested
I need to get replacemet parts
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. Your operator resembles the 39-348. This assembly is used with the 36-078 shoe studs. Take a look and compare the specifications below to your original hardware.

detail of 39-348
detail of 39-348

Dimensions for 36-078
Dimensions for 36-078

Dimensions for 36-078
Dimensions for 36-078
