Window crank and assembly

A handy person from 90266 says:

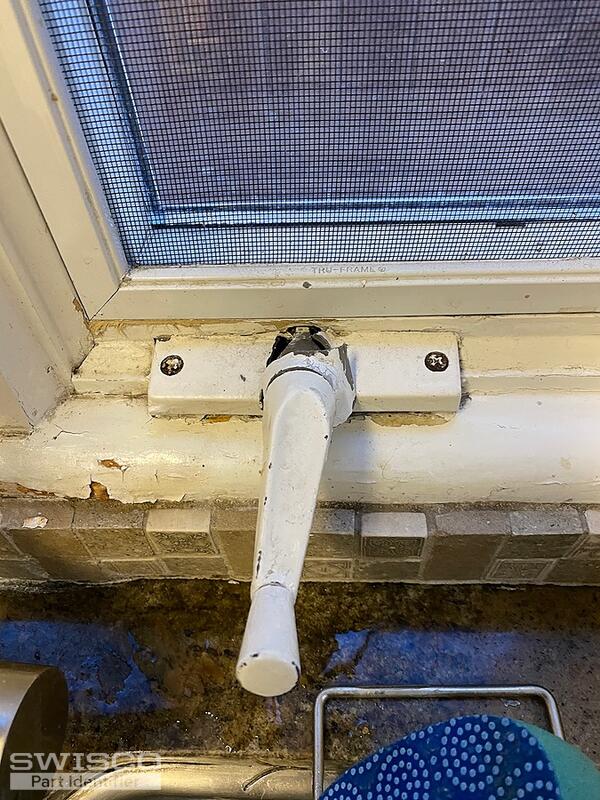

Need to replace.
Thumbnail of the uploaded file named CA712942-F5FA-45C5-B7CE-F1D0D0780303.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Can you show me the entire assembly, including the link arms that push and pull the window closed? I'll do my best to find what you need from there.

A handy person from 90266 says:

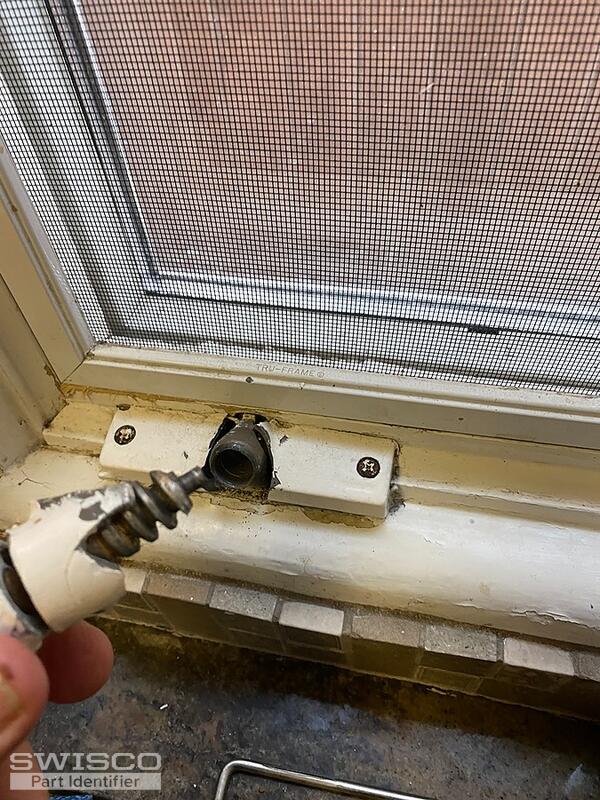

See attached photos of mecjanism. I might just need the crank and housing. Please advise
Thumbnail of the uploaded file named image0langlois2.jpeg
Thumbnail of the uploaded file named IMG_6250langlois.jpg
Profile picture of Bob
Bob from SWISCO responded:

I am afraid when the worm gear pops out with the handle like that, that means the entire operator mechanism has worn down and needs to be replaced. Replacing just the handle won't be enough. Again, we may be able to help, but I need a good picture of the entire mechanism, link arms and all, to narrow down what you need.

A handy person from 90266 says:

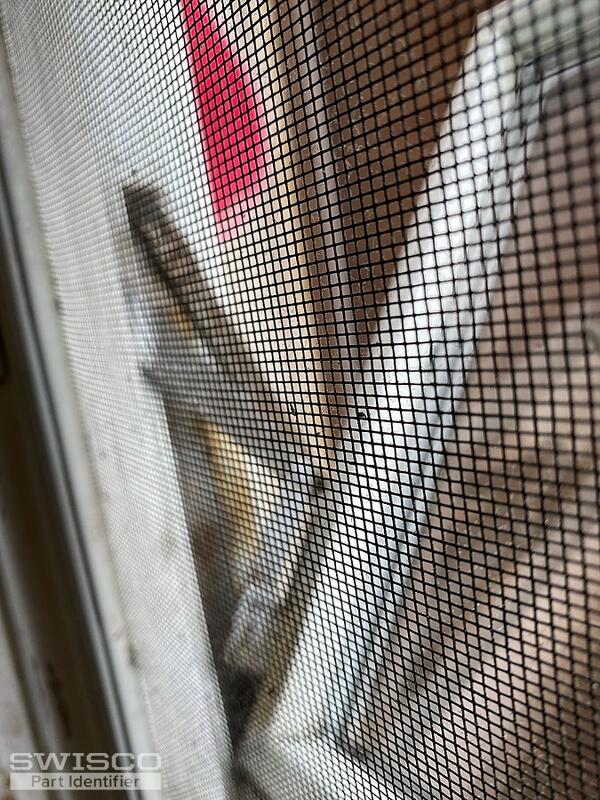

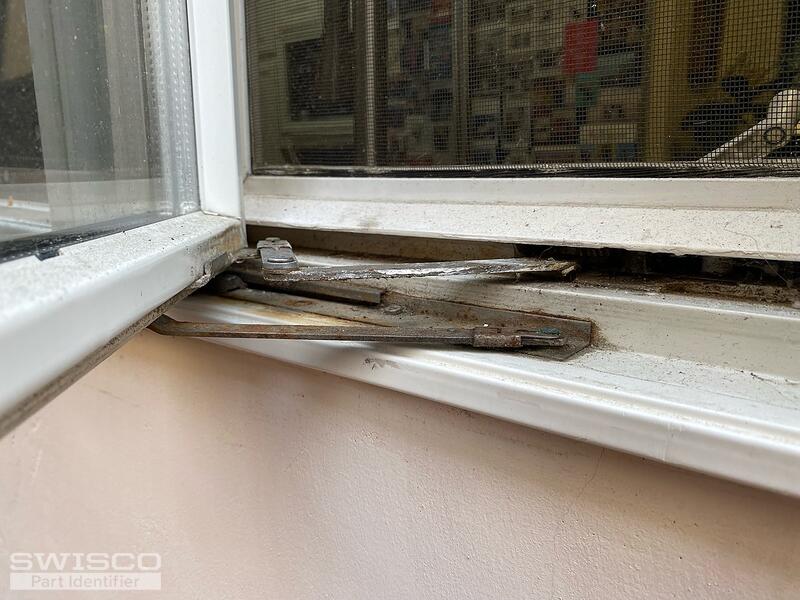

See attached photo's. LMK your thoughts. Thanks
Thumbnail of the uploaded file named C836145E-5D42-4750-BAE1-AA0F2C910E5A.jpeg
Thumbnail of the uploaded file named 992C0831-2E80-43FD-89EB-99957175829B.jpeg
Profile picture of Bob
Bob from SWISCO responded:

See our 39-147 and 39-146 Split-Arm operators for Andersen. Compare their dimensions to your old hardware and see if either of these could work for you.

A handy person from 90266 says:
Does the 39-146 come in white?
Profile picture of Tom
Tom from SWISCO responded:

Unfortunately, the 39-146 operator is not available in a white finish.
