Window crank and covers : SWISCO.com

Handy Person from WINDBER

Jun 14, 2023 8:12 am

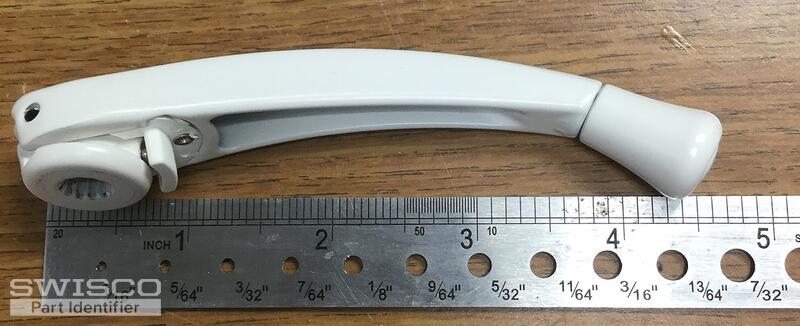

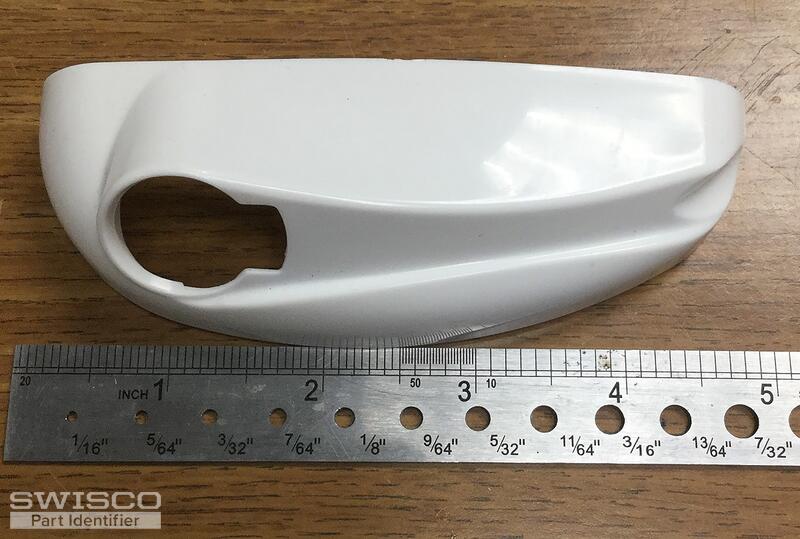

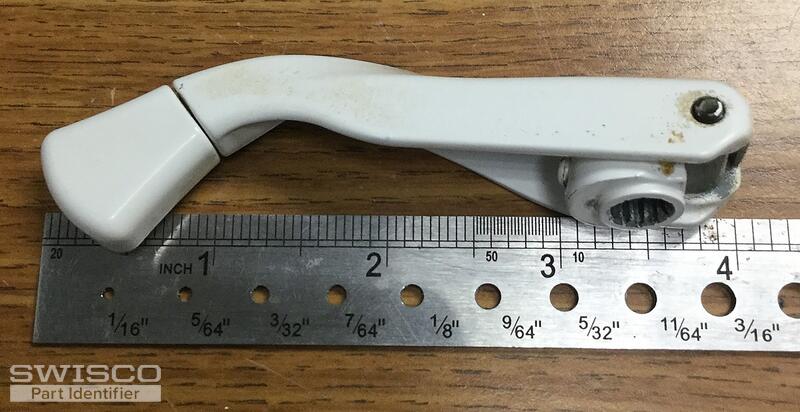

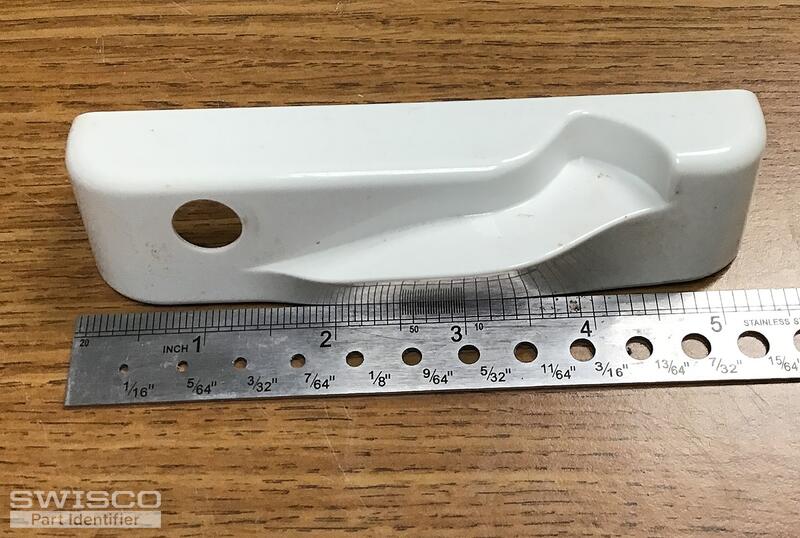

I'm looking for replacement covers for the attached images. There is a short and long handle versions.
I'm hoping you can help. Thank you.

4 user uploaded images

4 Replies

Casey from SWISCO

Jun 14, 2023 3:46 pm

Hello,

The covers shown in your photos appear to be for two different types of operators. If you could open the widow to show us the arms of both operators that move the window sashes, that would help us confirm which cover and handle options would be compatible. Thank you!

Handy Person from WINDBER

Jun 16, 2023 5:47 am

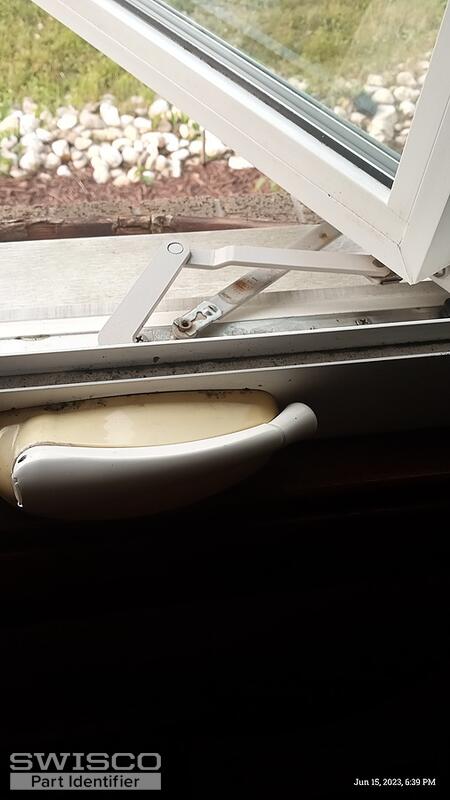

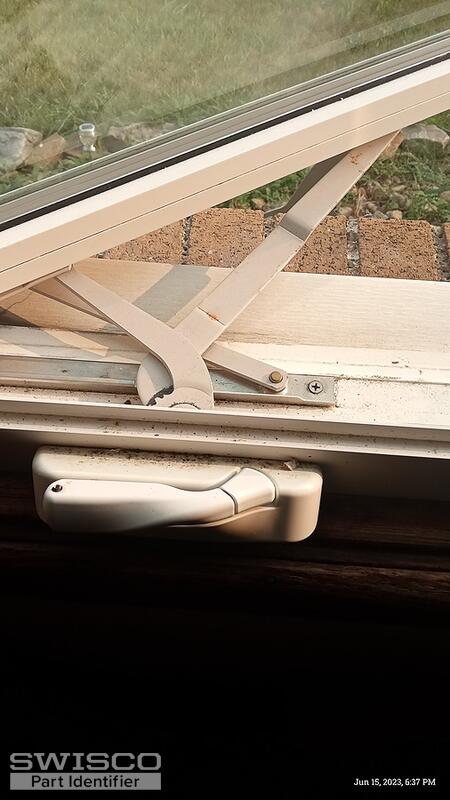

Here are pictures for bothe operators. Hope this helps.

2 user uploaded images

Casey from SWISCO

Jun 16, 2023 8:17 am

Thanks for getting back to us. Your first photo resembles the 39-325 and 39-326 Roto operators. Unfortunately, we do not carry a cover for these since ours come with the cover permanently attached but we do offer the 39-232 folding handle.

The assembly shown in your second photo reminds me of our Encore operators shown in the video below. Both of these operator pairs would use the 39-375 and 39-376 folding handles with covers. Take a look and let us know if you have any other questions.

Dimensions for 39-325

Alternate view of the 39-325 operator.
