Window crank and handle

Contractor from Maryland

Jun 10, 2019 2:59 pm

I am looking to replace whatever is needed as well as how to possibly diagnose the problem. It looks similar to 39-393 but not quite. More like OP05-7500-00-53239 Do you carry these parts?

2 user uploaded images

6 Replies

Dave Sr. from SWISCO

Jun 12, 2019 11:53 am

You have an old style operator which takes the "male" hex handle that Roto made. What happens with this type of operator is that the black plastic collar wears out and fails to secure the handle. That means you'll need a new operator, not just a handle.

Take a look at the 39-393 awning operator to see if this matches up to yours. I can't tell based on just the base, so if you aren't sure we'll have to see a photo of your operator out of the window. You will also need either the 39-114L handle or the 39-205 folding type.

Contractor from Maryland

Jun 12, 2019 9:21 pm

Its at the clients home. What way can I prepare to open the window. Is there a technique you could share for opening the window to remove the operator?

Dave Sr. from SWISCO

Jun 13, 2019 8:23 am

One thing I've done in the past is pad the "male" hex part on the handle with tape. This allows it to stick better in the "female" part of the operator and may allow you to crank the window open. It's not guaranteed, of course, but I've had a modest amount of success for the effort.

Aside from that, you'll have to play it by ear. It really depends on how significant the damage is.

Contractor from Maryland

Jul 13, 2019 2:19 pm

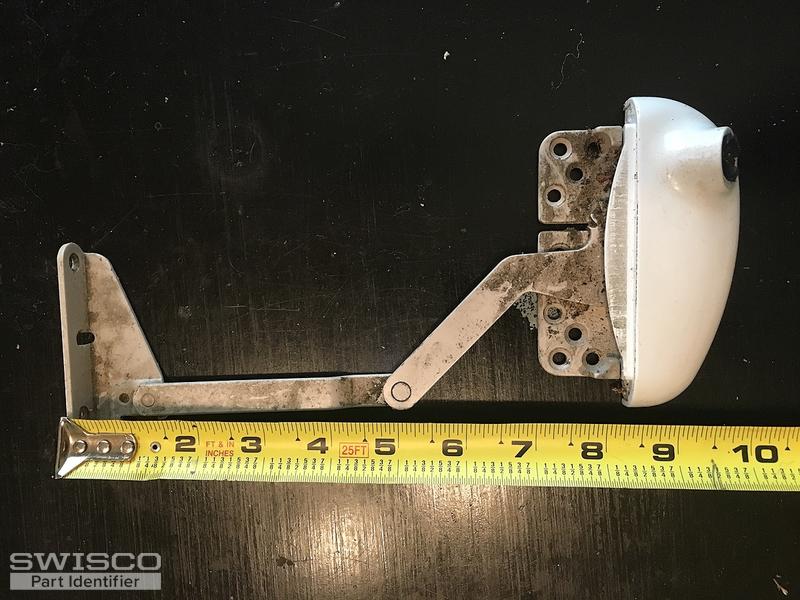

I got it out and I could use a little more guidance on the replacement needed.

Thank you for your suggestion with the tape.

2 user uploaded images

Dave Sr. from SWISCO

Jul 17, 2019 12:53 pm

Thank you! This is a huge help. I think you could use our 39-326 as a substitute. Look it over and let me know what you think.
