Window cranks broken

Home Owner from Baldwin Harbor

Feb 24, 2026 10:13 am

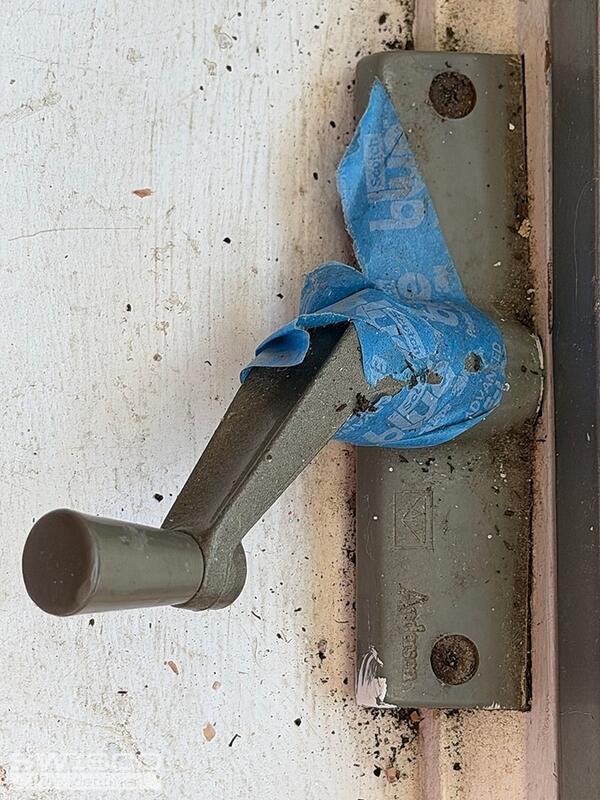

Can you tell me if you have cranks that replace the broken ones. The two with white paint on base are for long Bay windows, all are casement windows.

4 user uploaded images

4 Replies

Jasmine from SWISCO

Feb 24, 2026 12:29 pm

Thanks for reaching out! It appears the window operators on both windows have become stripped. That said, you'll need to replace the entire operator.

I'll need to see photos of the operator arms to identify their replacements. You may need to manually open the window to get the photos.

Please let me know if you have any questions.

Home Owner from Baldwin Harbor

Feb 25, 2026 2:52 pm

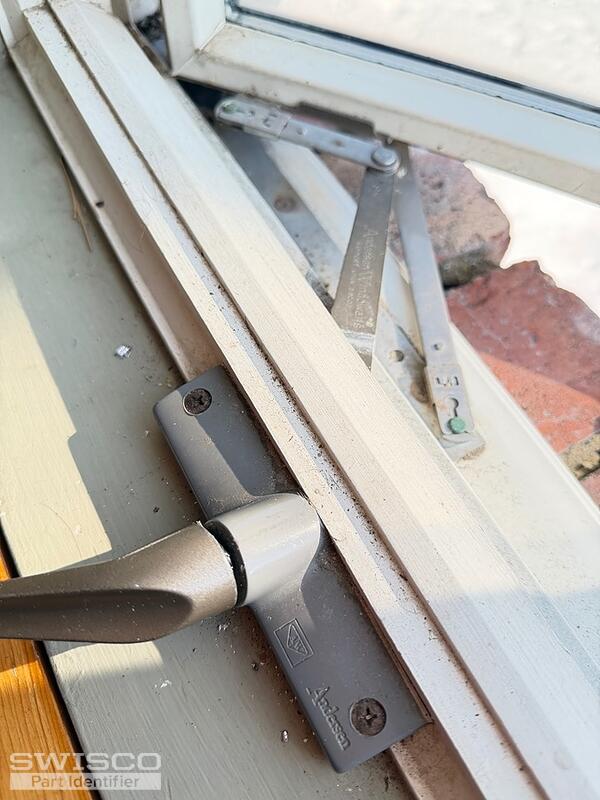

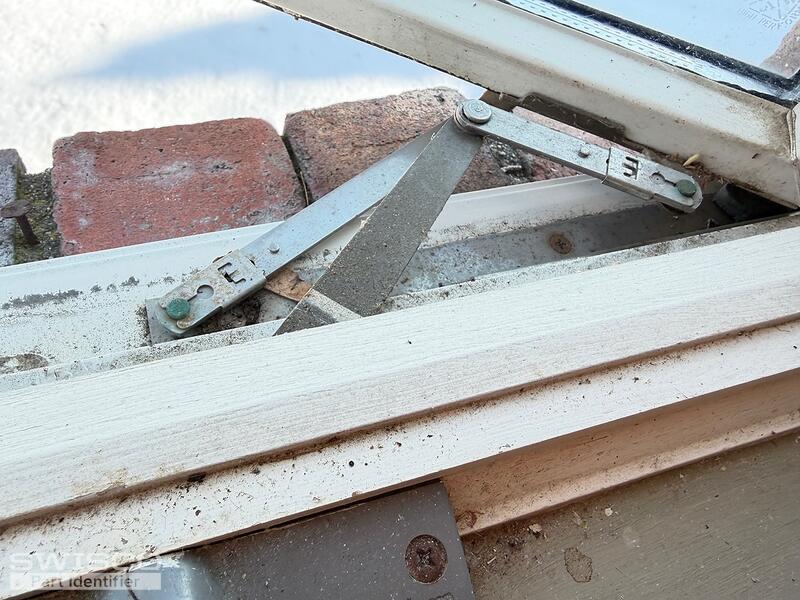

Here are two photos of the operator arms.

2 user uploaded images

Jasmine from SWISCO

Feb 25, 2026 3:43 pm

Thanks for the additional photos. Your window operators can be replaced with the 39-146 and 39-147 Andersen Window Cranks. I'm confident they should be a match, but be sure to double check the dimensions.

You'll need either the 39-160 or the 39-161 to replace the link arm brackets. The compatible crank handle is the 39-286.
