Window gasket and also a side pin the window locks into.

Question

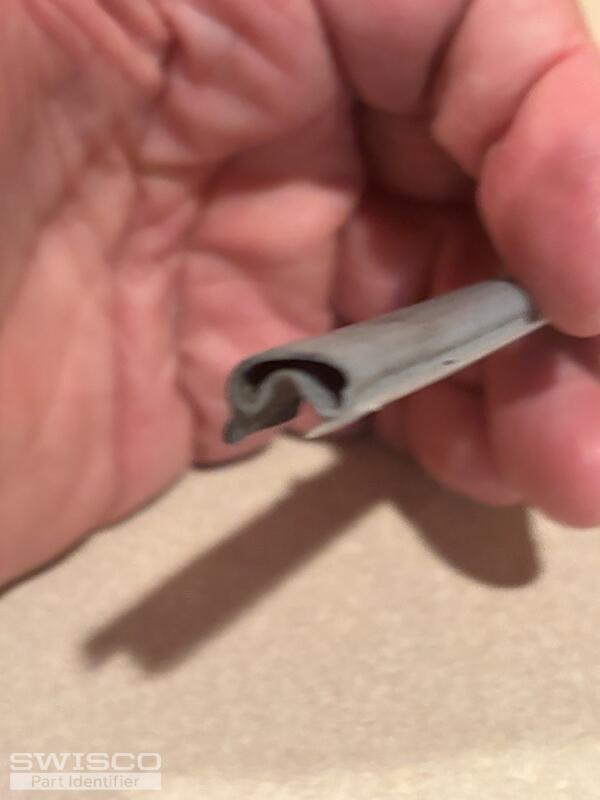

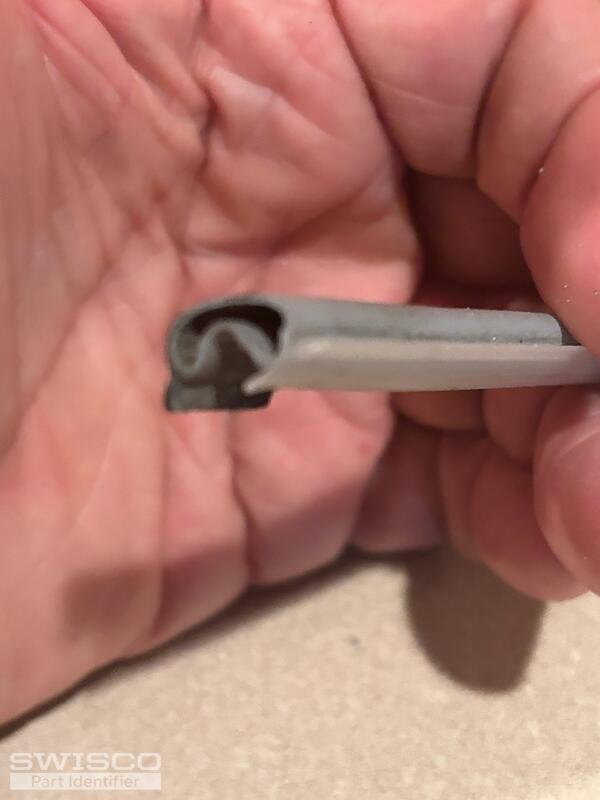

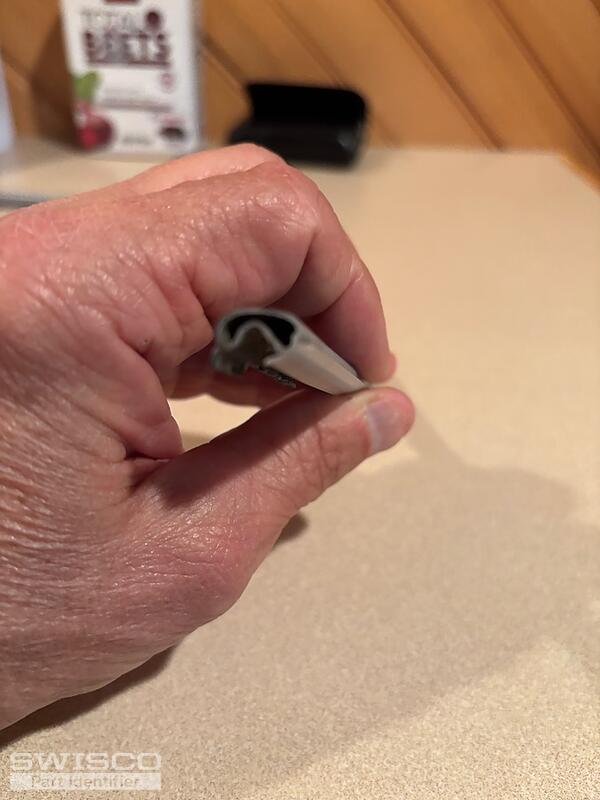

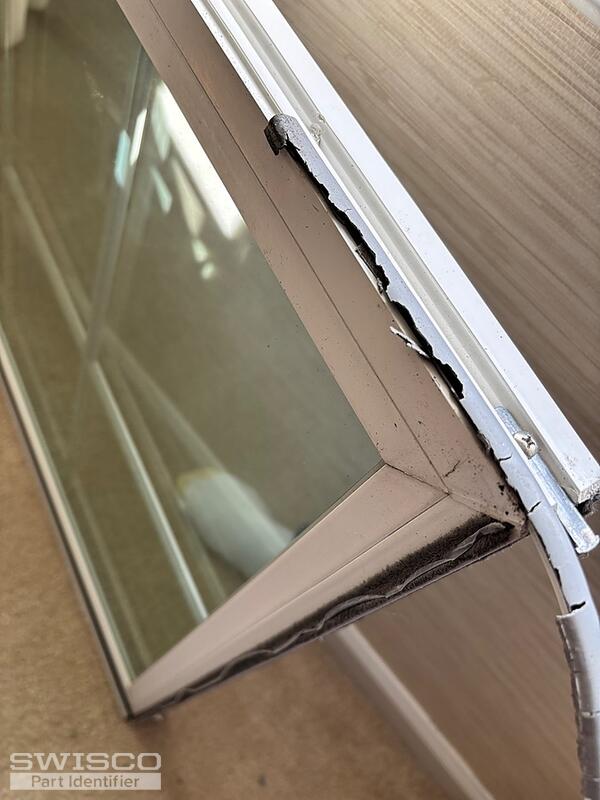

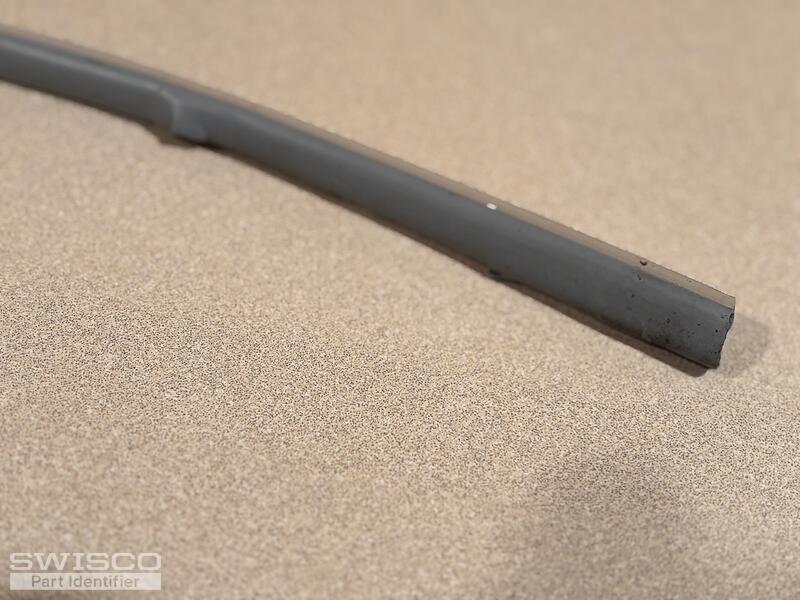

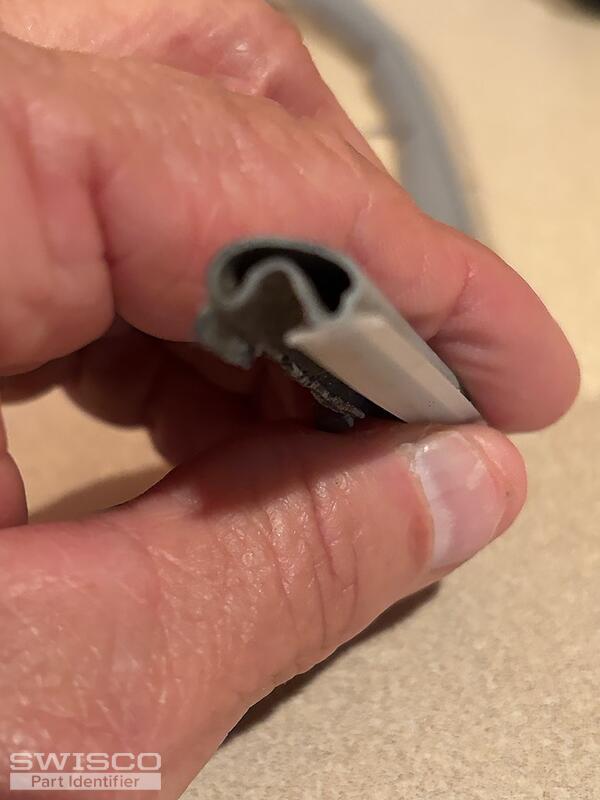

I have BF Rich windows .I need to replace the gaskets on the windows they are falling apart they are 28 3/4 "long also need a new latch that the window locks into it won't slide up. Thank you

Mike

Casey · Accepted Answer

Hello,

I can't be sure of what you need based on a damaged seal but if yours installs with a flat backing into an opening in the sash frame, the 58-135 may be a good place to start. Take a look and see how the specifications below compare to an intact piece of your weatherstripping.

Profile view of 58-135

If you need new pivot shoes as well, take a look and compare the 15-228 to your part removed from the window jamb.

Dimensions for 15-228

If you need the pivot bar that connects the window sash to the pivot shoe as well, we would need to see an intact version of that part removed from the other side or an identical window to compare to our inventory. Thanks for posting!
