Window handle crank

Quick Learner from California

Aug 22, 2024 2:27 pm

Hi! We have managed to break off several window handles/cranks and are trying to figure out if we can replace the piece or what needs to be done.

3 user uploaded images

4 Replies

Jasmine from SWISCO

Aug 23, 2024 11:35 am

Thanks for posting! Is the metal piece that the handle fits onto removeable? If it cannot be removed from the operator, you may need to replace the entire mechanism. Once you've determined this, I'll be able to better assist you.

Quick Learner from California

Aug 23, 2024 12:21 pm

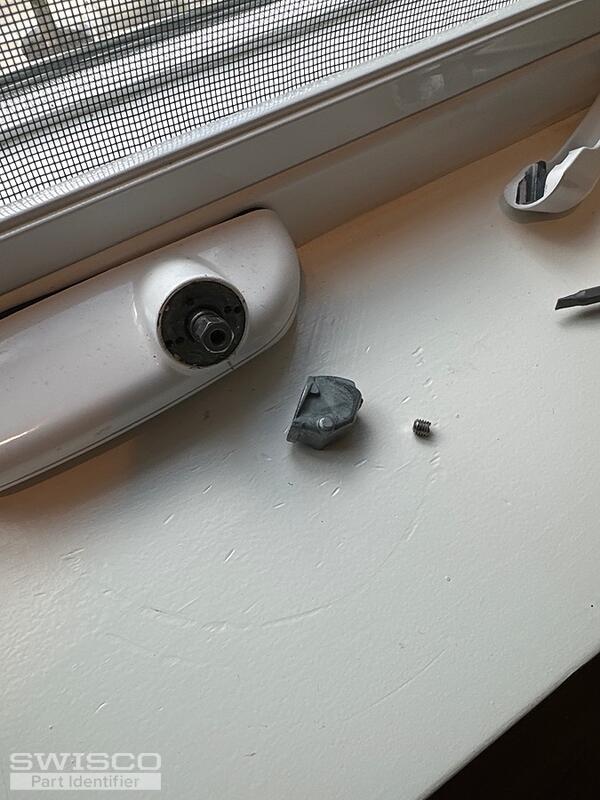

Hi! I removed this piece. I can try to remove the one underneath but am a little worried I might break it.

1 user uploaded image

Jasmine from SWISCO

Aug 23, 2024 2:42 pm

Hello,

Thanks for the photos! Please do not remove the piece underneath. It is part of the operator and machine pressed into the base. If this is removed or dislodged, that would render the operator completely useless.

It appears you have a Roto hardware operator. So you'll need the 39-224 Fold-down Crank Handle. I am confident this should work for your repairs.
