Window handle locking system

Quick Learner from Jersey City, NJ

Jul 29, 2024 4:34 pm

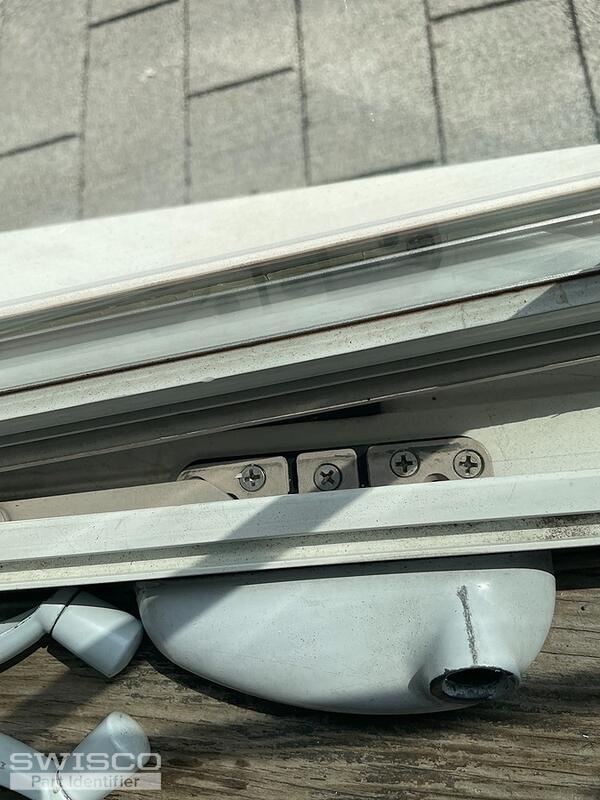

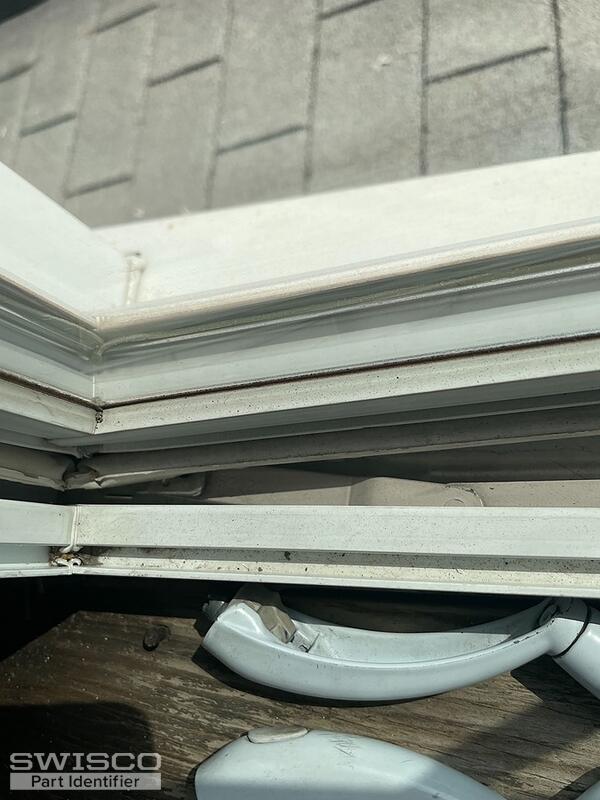

Dear Swisco Staff ---Am trying to identify these parts for two windows. I need the two handles plus the locking system to replace the parts located at the bottom horizontal part of the window. Can you assist with identifying these parts?

Regards,

Jose

Wd1

Wd3

Wd4

Wd7

Wd8

5 user uploaded images

3 Replies

+ Add a Comment

Quick Learner from Jersey City, NJ

Jul 30, 2024 3:56 pm

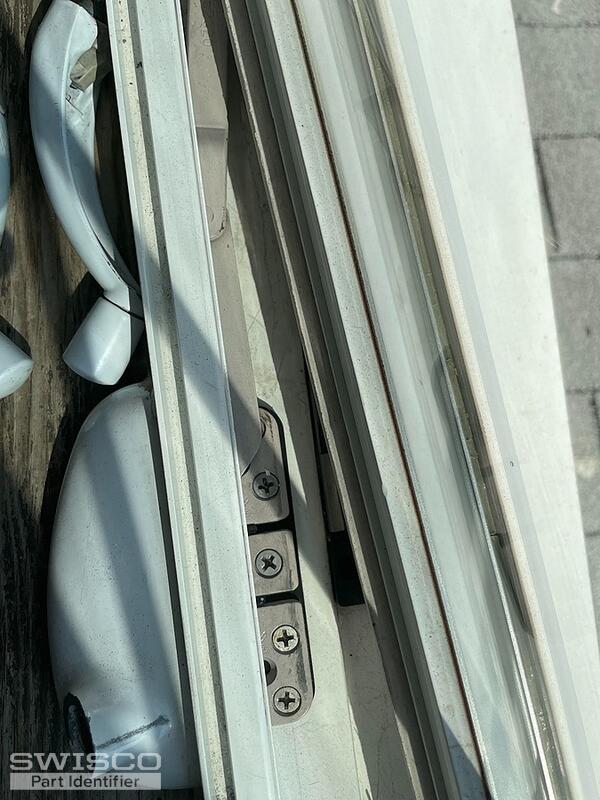

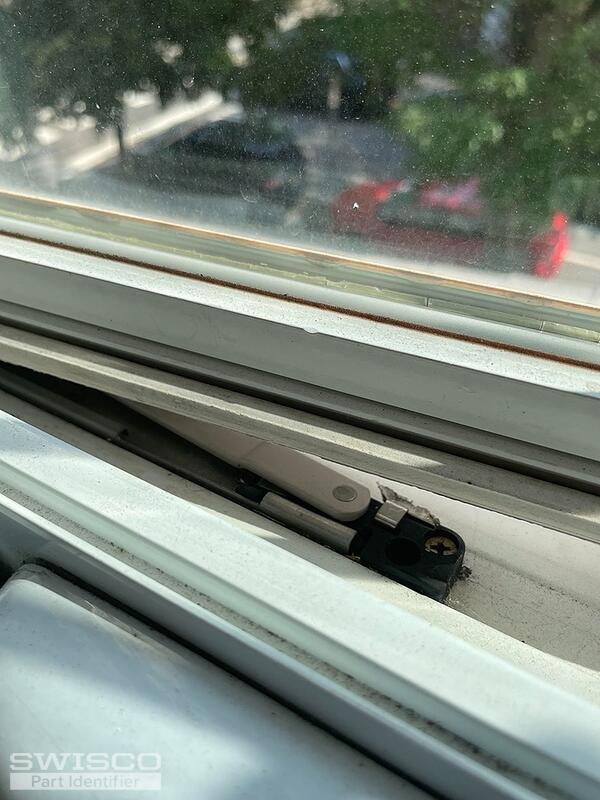

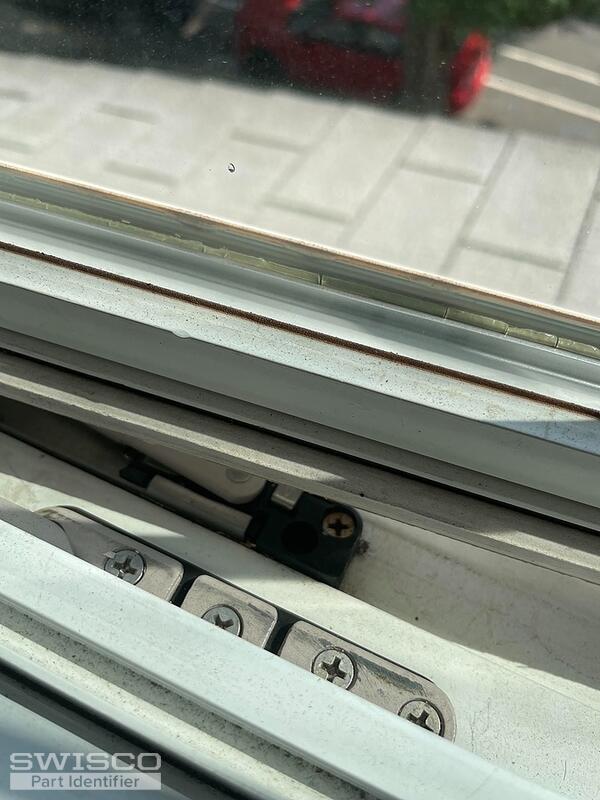

in addition to the crank/handle, i also need the split arm operator.

Wd13

Wd12

Wd11

3 user uploaded images

Casey

Casey from SWISCO

Jul 31, 2024 9:16 am

SWISCO

EXPERT

Hello,

It's tough to be sure based on your photos but the operator resembles the 39-330 at first glance. We also offer the 39-329 opposite-handed version. See the 39-232 handle used with both assemblies.

Alternate image for 39-330

Alternate image for 39-330

Side profile view with measurements

If you need new hinges as well, take a look at the 36-048 set with a 10" base depending on the size of the originals. Thank you!

Detail of 36-048

Detail of 36-048

Quick Learner from Jersey City, NJ

Aug 1, 2024 5:11 am

Thank you very much for your help and suggestions. I'll see if I can take a better photo.

+ Add a Comment
