Window hardware

A quick learner from Nj says:
October 3, 2019

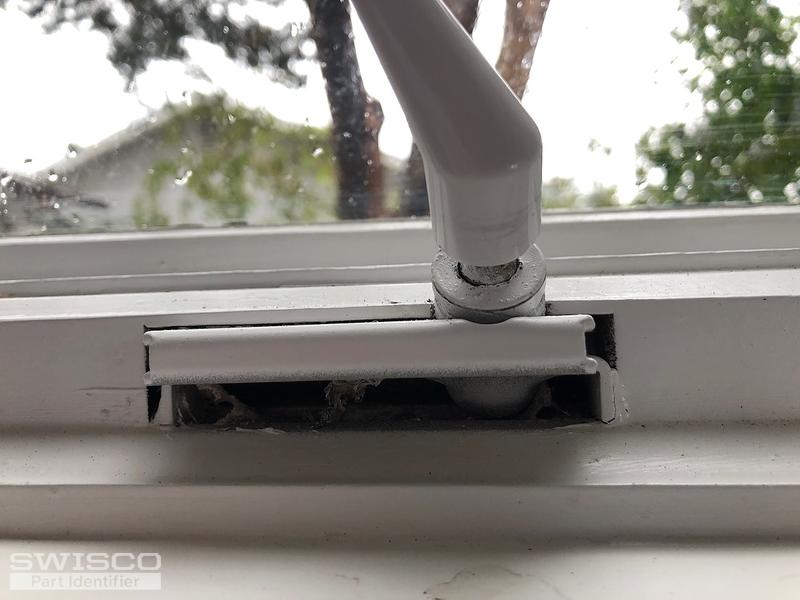

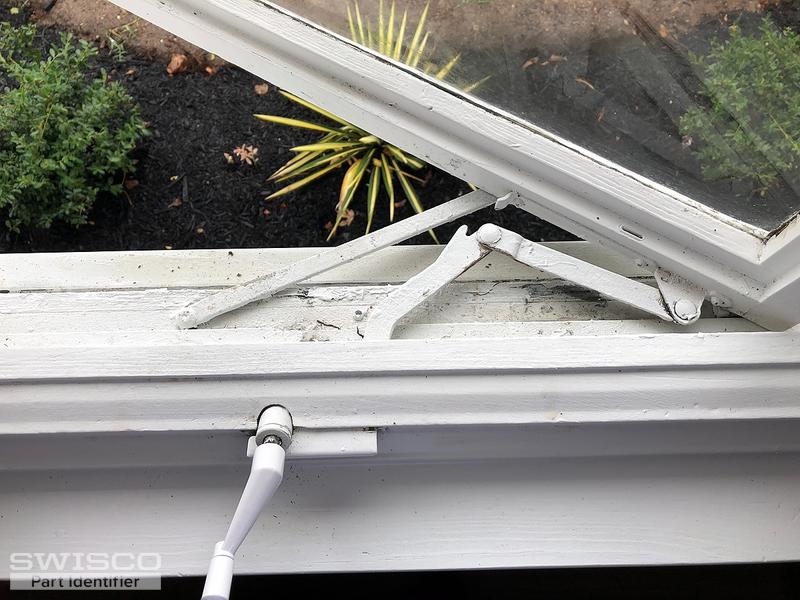

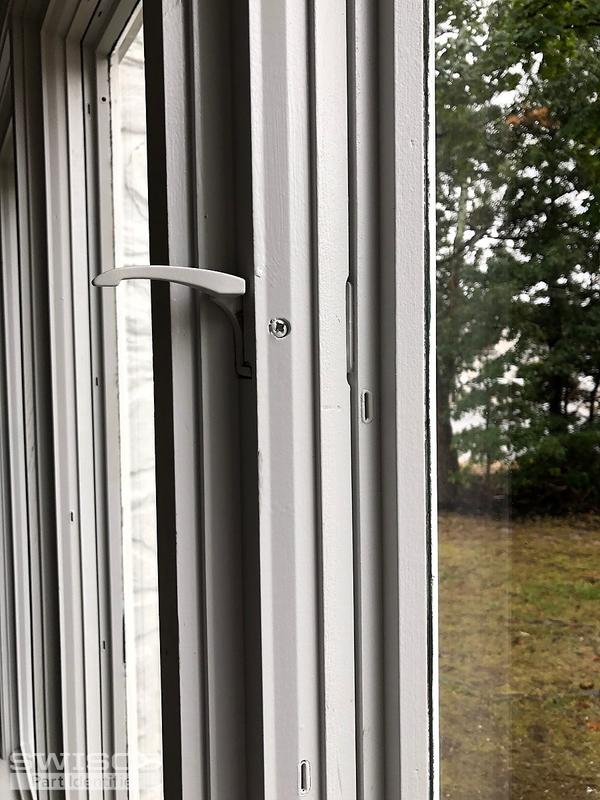

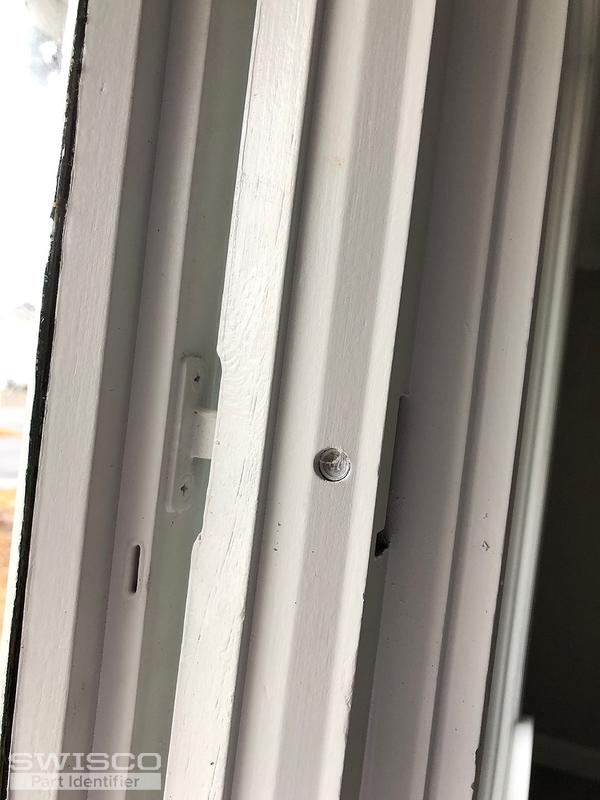

I can't find the Manufacturer's name of this window. The first set of pictures is of the lock and the second set is of the cranking mechanism. I would need multiple parts of each. Thanks!
Thumbnail of the uploaded file named 3C827E25-49E0-486E-9B03-7047F5DD32BA.jpeg
Thumbnail of the uploaded file named 79712570-9C99-4114-BF36-63517D38E1A2.jpeg
Thumbnail of the uploaded file named 9934E94B-E4A4-4066-9B98-728908B74154.jpeg
Thumbnail of the uploaded file named 92E2D4D1-4DC1-4660-B779-B9E75378A4EA.jpeg
Profile picture of Tom
Tom from SWISCO responded:
October 8, 2019

This is almost definitely a Pella brand window. They're the only company who uses this operator. Specifically, see our 39-176. I think you'll agree that this is a match. See our 39-175 for the opposite side.

It's tougher to make out the locks, but since this is a Pella window then odds are you want our 38-274 and 38-275 locks, as well as a 38-284 keeper. Review our photos and dimensions and let me know if my guess is accurate. If not, we can try to find something better.
Pella Casement Lock Handle, L
Pella Casement Lock Handle, L
38-274
$26.85
Pella Casement Lock Handle, R
Pella Casement Lock Handle, R
38-275
$26.85
Pella Casement Strike
Pella Casement Strike
38-284
$45.41
Sash Crank Operator, Pella
Sash Crank Operator, Pella
39-176
$241.70
Sash Crank Operator, Pella
Sash Crank Operator, Pella
39-175
$241.70
