Window hardware

A home owner from 60031 says:
I need replacements for these parts for both, left and right, of my garden windows.
Do you have some parts that may work?

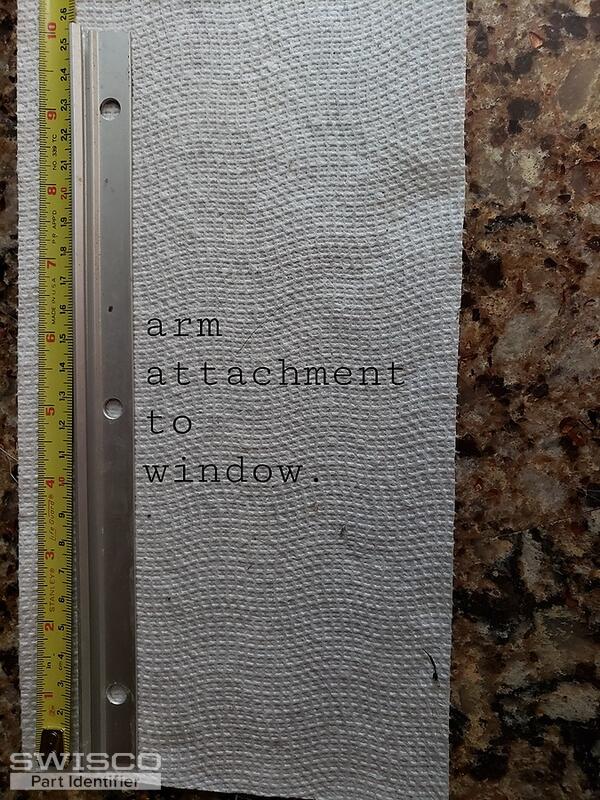

Thumbnail of the uploaded file named crank arm attach measure.jpg

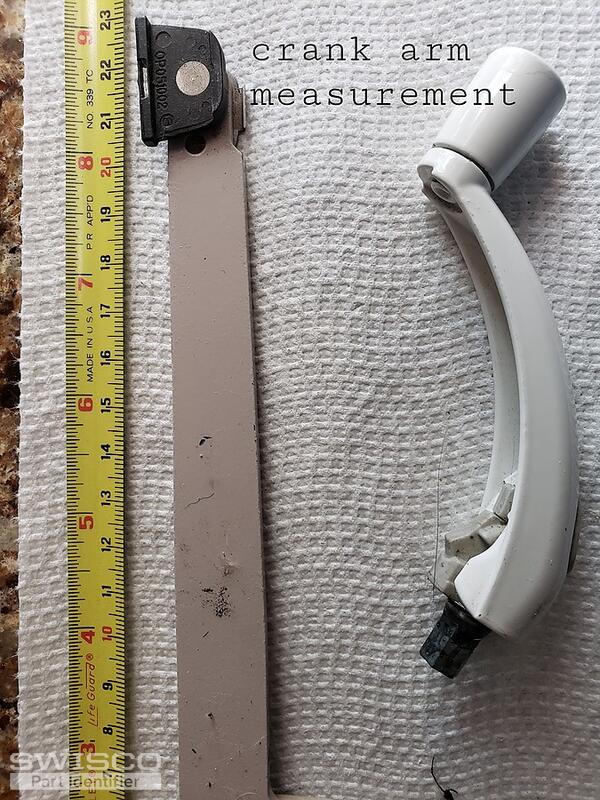

Thumbnail of the uploaded file named crank arm measurement.jpg

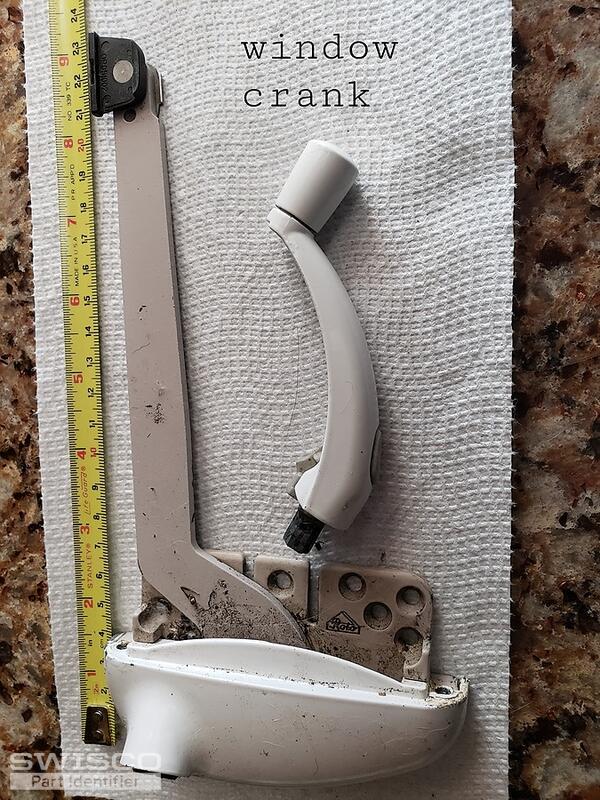

Thumbnail of the uploaded file named crank assembly.jpg

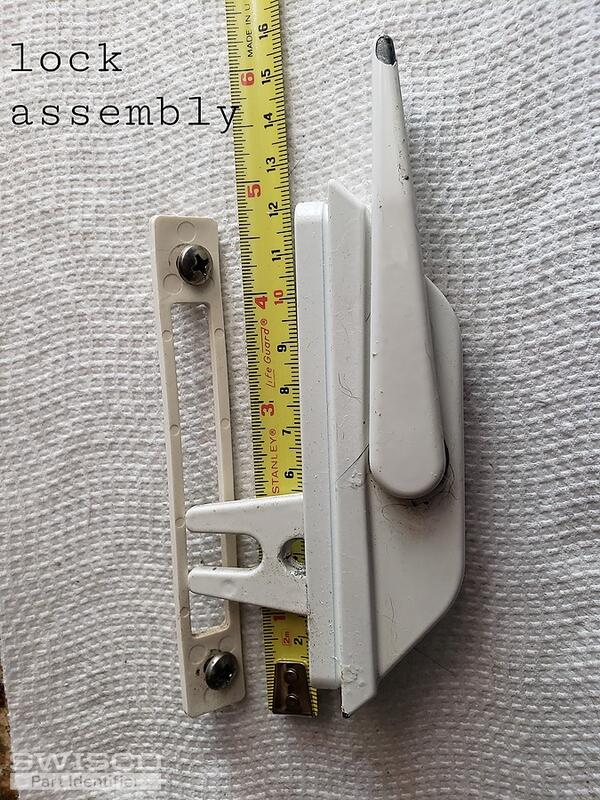

Thumbnail of the uploaded file named lock assembly.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

We do! Start by taking a look at the 39-429 & 39-430 and 39-434 & 39-435 ROTO single arm operators to see if one of these matches up to what you have now. These operators are compatible with the 39-542 casement track and 39-232 folding handle.

As for the locks, see our 38-095, 38-096, 38-138 and 38-139. Look over the dimensions for each of these parts and compare them to yours, especially the projection of the fork, to see if one them matches up to your old hardware. For a new locking handle plate, see our 38-158.

A home owner from 60031 says:

I have placed what I believe I need. One arm is out of stock. Measuring the fork was difficult and might be somewhat off due to the fact that my lock is a different shape. Two questions: are these returnable if I ordered wrong?

How many appropriate screws do I need for two arm assemblies and 2 locks or can I use what I have off the old assemblies?

Thank you once again.

Carmela

Profile picture of Emily
Emily from SWISCO responded:

Yes, you'll be able to return your item(s) for a refund if they end up not working out. See our return policy here. You can also re-use your old screws!

A home owner from 60031 says:
Thanks again
Profile picture of Emily
Emily from SWISCO responded:

My pleasure, Carmela. Let me know if you need anything else and best of luck with the repair!
