Window hardware

Start a new Discussion

Home Owner from Joliet, IL

Jun 16, 2017 2:00 pm

I am looking to replace the hardware on six windows if you have complete kits that would be great thank you

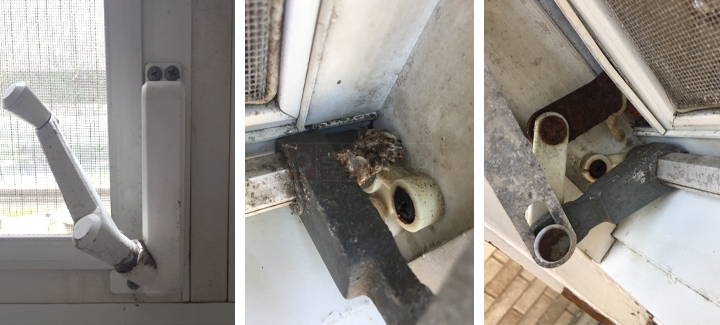

User submitted photos of a window operator.

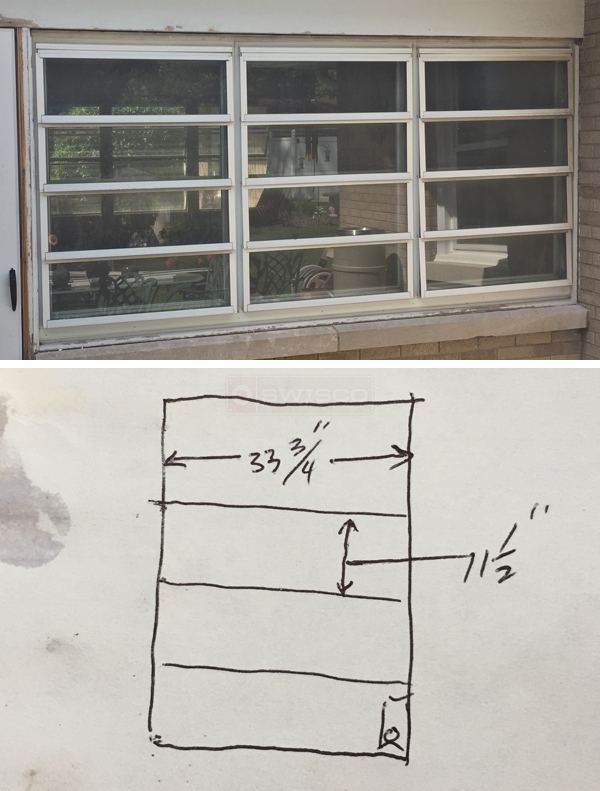

User submitted photos of window hardware.

7 Replies

Dave Sr. from SWISCO

Jun 21, 2017 1:54 pm

Start by looking at our 39-280 to see if this matches up to yours. The dimensions we show are very important, so I would go over them to be sure your measurements are the same.

Home Owner from Joliet IL

Jun 22, 2017 7:17 am

Thank you Dave I will check the dimensions.
I will be in Canada for a week so please leave this discussion open and I will get back to you, and we can wrap this up.

Home Owner from Joliet IL

Jul 13, 2017 2:57 pm

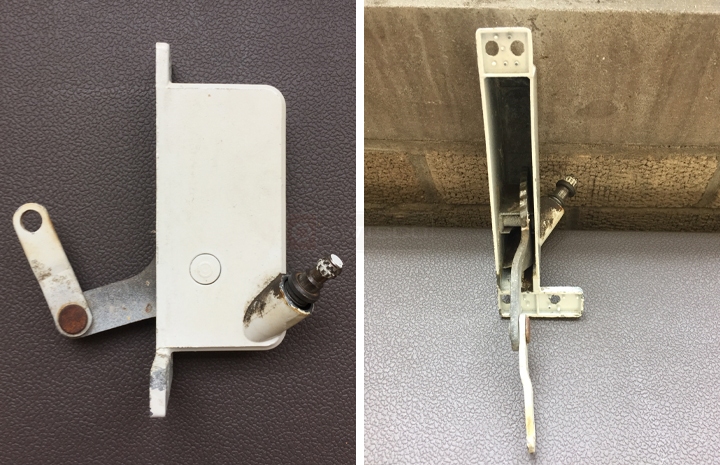

Thank you Dave, I looked at part number 39-280 The only difference is the arm length, everything else matches the dimensions perfect. The arm length on my original operator is 1-3/4 " center hole to center hole "secondary link" See photo. Please let me know if 39-280 will still work for me.

Home Owner from Joliet IL

Jul 13, 2017 3:08 pm

Referring to last note... the length is probably 1-7/8" not 1-3/4"

Tom from SWISCO

Jul 17, 2017 2:20 pm

I think you'll be okay. The link arm for this kind of operator has a certain amount of play, so if it's off by a little then it should still work.

Home Owner from Joliet IL

Jul 18, 2017 7:48 am

Thank you very much I will be placing an order for the parts.
