Window hindge

Home Owner from Fairbanks, Alaska
Window guide comes out of rail.

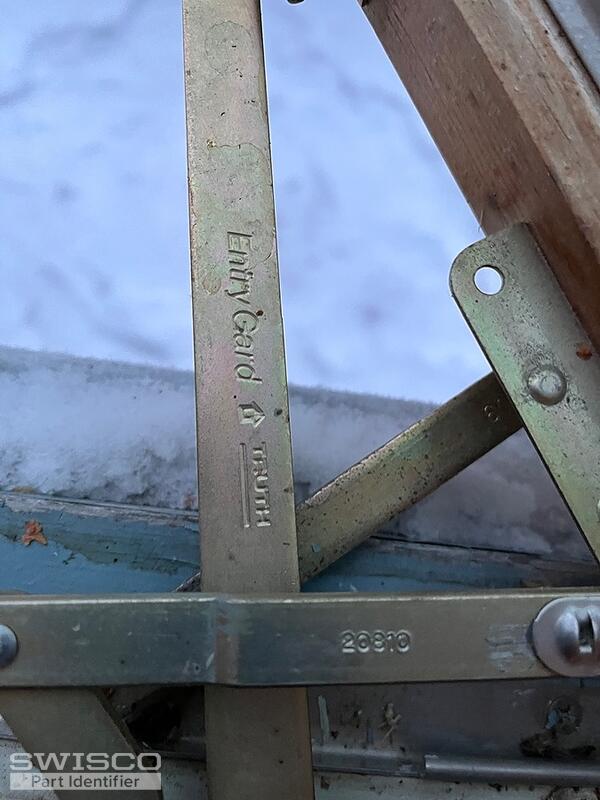

Entry Gard Truth
upper linkage 20810
lower link 6809



4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out! The casement hinge can be replaced with the 36-048 2-Bar Hinge Set. The length of the track is 10", which yours appears to be but you'll need to take a look at the placement of the installation holes. If they are not a match, you may need to consider drilling new holes.

It is advised to replace the top and bottom hinge on the window. These can be used for both left and right handed applications.

Detail of 36-048
Detail of 36-048

The window operator you have can most likely be replaced with the 39-031 EntryGard Dual Arm Operator. To determine if this is the correct replacement, you'll need to carefully look over the dimensions below.

I've tagged the opposite handed version as well as the compatible hardware and accessories below. Be sure to compare the dimensions for these as well, especially the track if you decide to replace it.

Dimensions for 39-031
Dimensions for 39-031
