Window hinge

A home owner from Three Rivers, MA says:
Please a having broken on one side window
Thumbnail of the uploaded file named IMG_2582.jpeg
Thumbnail of the uploaded file named IMG_2581.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

If you have Certainteed windows, the part partially shown in your photos resembles the 15-192 pivot shoe, which uses the S170 and S171 coil springs, along with the parts listed under the related items section of the 15-192 product page. Please note that some customers have reported that they needed to shave the front of the shoe down to install it in their window jamb.

We also offer a conversion video shown below that works for both Certainteed and Simonton windows that use this type of assembly. Take a look and review the full process below to see which option you'd prefer for your repair. Thanks for posting!

A home owner from Three Rivers, MA says:
Hello, I sent you more pictures. I want be sure I order correct parts. Can you look again and tell me what parts I need to order please? Thank you
Thumbnail of the uploaded file named IMG_2616.jpeg
Thumbnail of the uploaded file named IMG_2615.jpeg

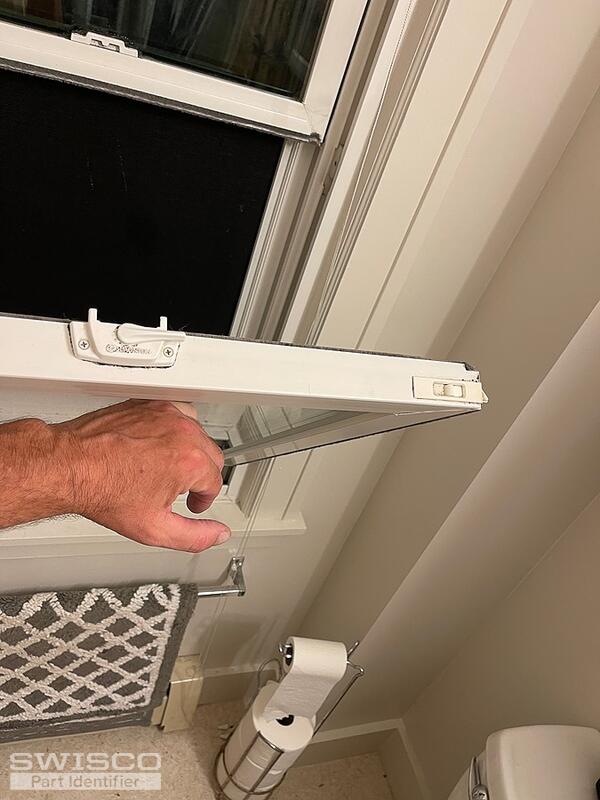

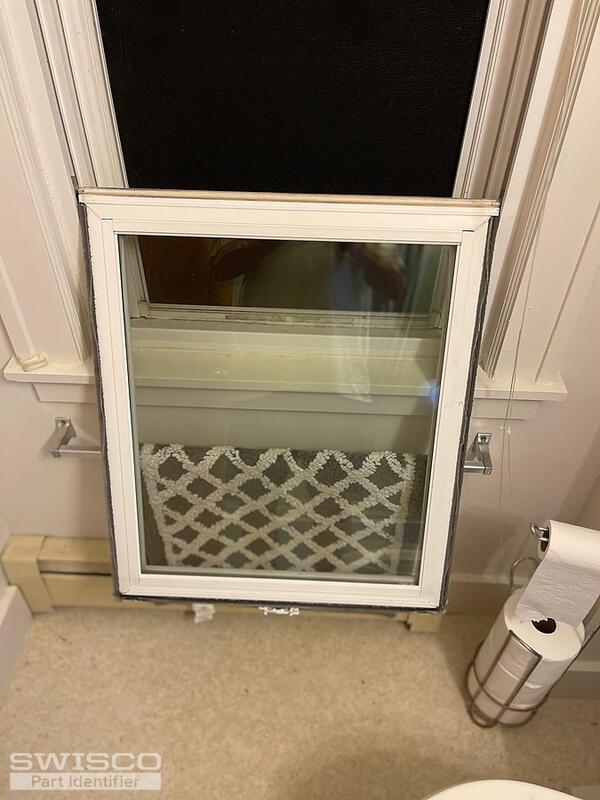

Thumbnail of the uploaded file named IMG_2614.jpeg

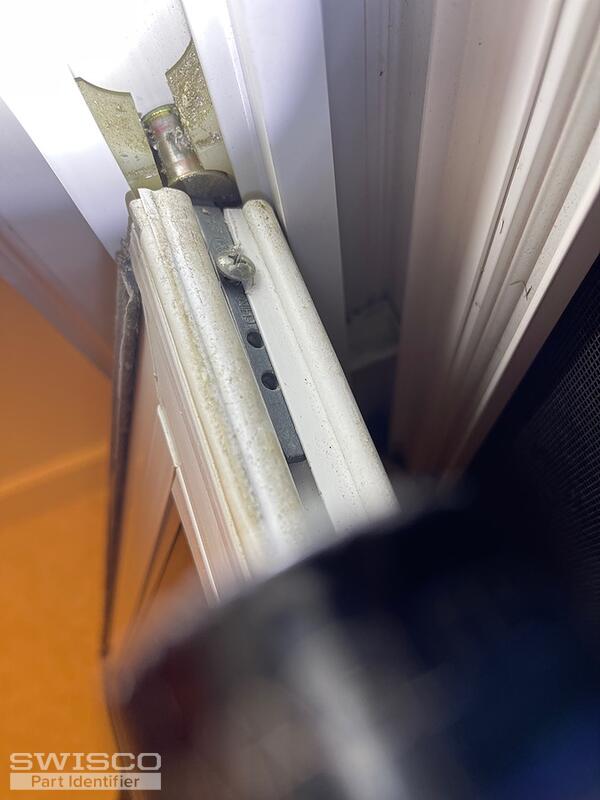

Thumbnail of the uploaded file named IMG_2613.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Since your window is marked Simonton, I would recommend following our conversion video for Simonton windows.

A home owner from Three Rivers, MA says:
Hello I just started replacing the parts and I found out I need also new springs. Can you send me the parts number and I will order them. Thank you.
Profile picture of Casey
Casey from SWISCO responded:

As stated in the conversion video included in our last response, you would need the S159 coil springs. You'll need to determine the weight of the window sash divided by the number of original coils used on each side to choose the corresponding strength options.
