Window is not working

Start a new Discussion

Home Owner from Laguna Hills, CA

Aug 7, 2026 5:39 pm

I have an old TRUTH left hand casement window that is not closing, but opens fine. Im trying to determine whether I need a new crank or whole thing, and hopefully the part #

3 user uploaded images

4 Replies

Bob from SWISCO

Aug 10, 2026 4:20 am

Hello there. When that gear pops out with the handle, I am afraid it means the whole operator must be replaced. Open the window and show us clear photos of the arm(s). That will narrow it down.

Home Owner from Laguna Hills, CA

Aug 10, 2026 12:51 pm

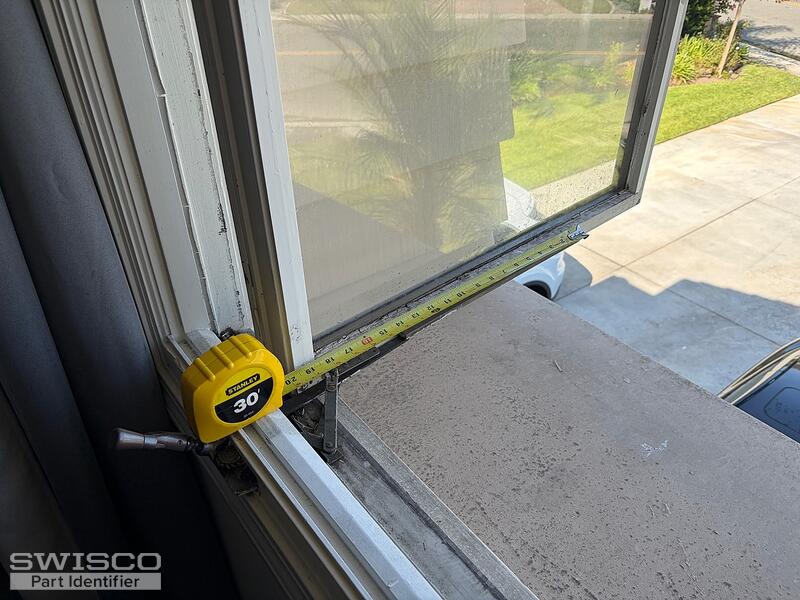

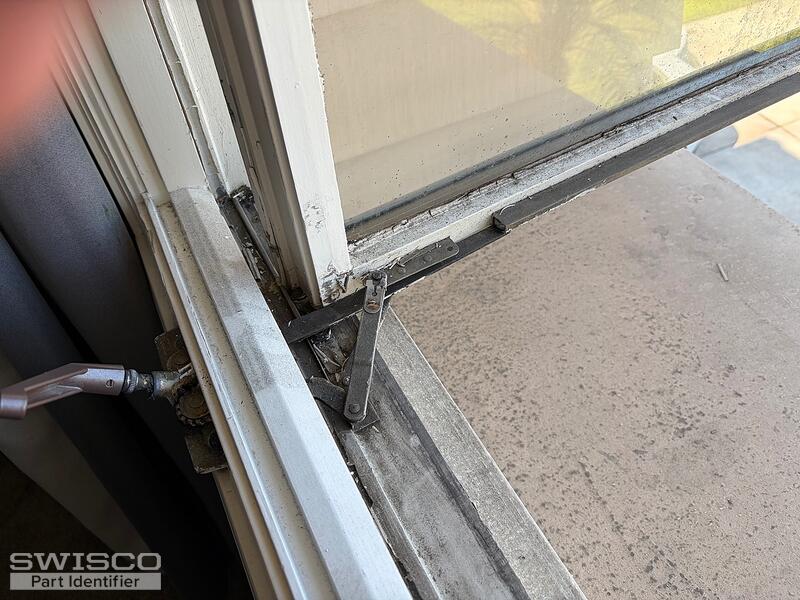

2 pictures

2 user uploaded images

Bob from SWISCO

Aug 13, 2026 6:12 pm

Thanks for getting back to me. Looks like you might have the 39-032 or 39-156 Dual-Arm Operator, depending on the arm length. See below. For new covers and handles, see the 39-114L and 39-107 sold separately.

Dimensions for 39-156

Dimensions for 39-156

Dimensions for 39-032

Dimensions for 39-032
