Window latch

Home Owner from Virginia

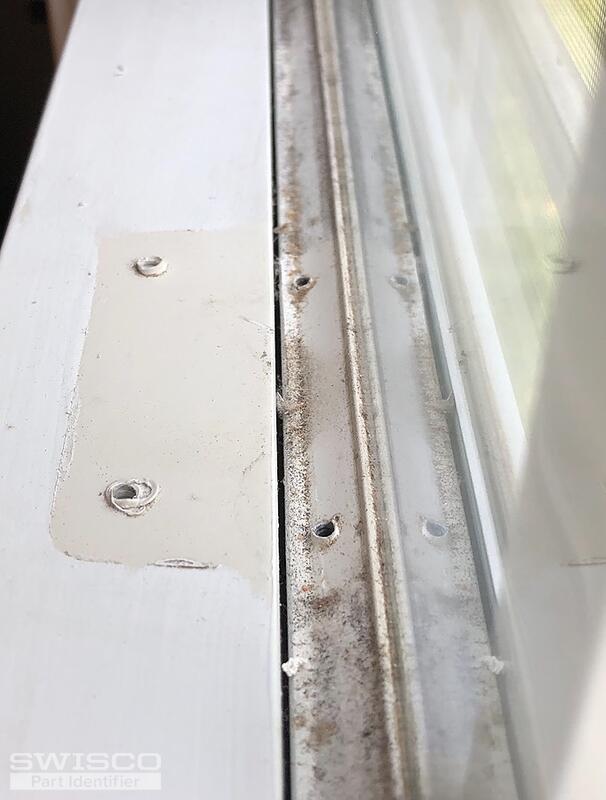

MW window latch is UV damaged and cracked. Mounts on an angle instead of flat. Would prefer a metal replacement with bulk pricing to replace all latches in my home.
4 user uploaded images
8 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

Could you let us know the installation hole-to-hole center spacing on your window latch? That will help us narrow down our options.

Thank you!

Home Owner from Virginia
Yes, here are pictures
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

The tape measure isn't lined up how we would need it so I'm afraid I can't get an exact read of your hole spacing. However, it does appear to be under 2" which is a bit odd, so we'd just need you to confirm the hole-to-hole center spacing.

Home Owner from Virginia

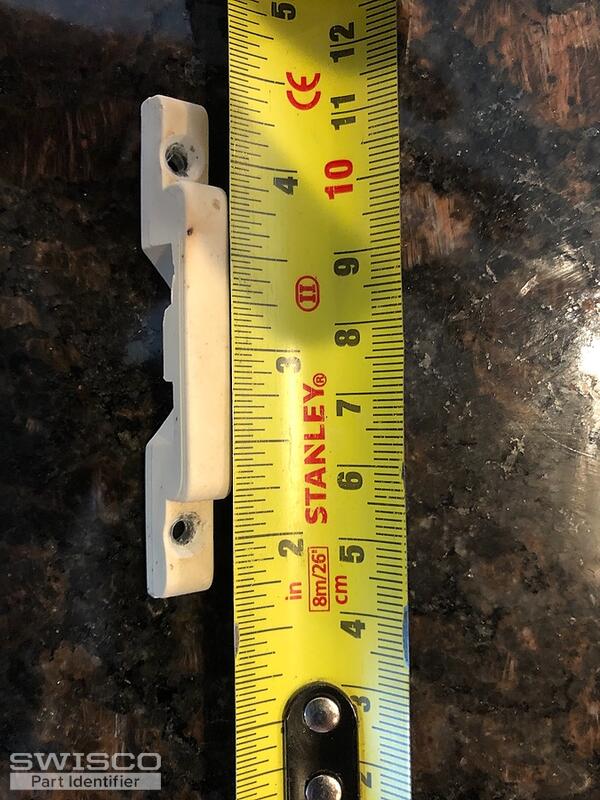

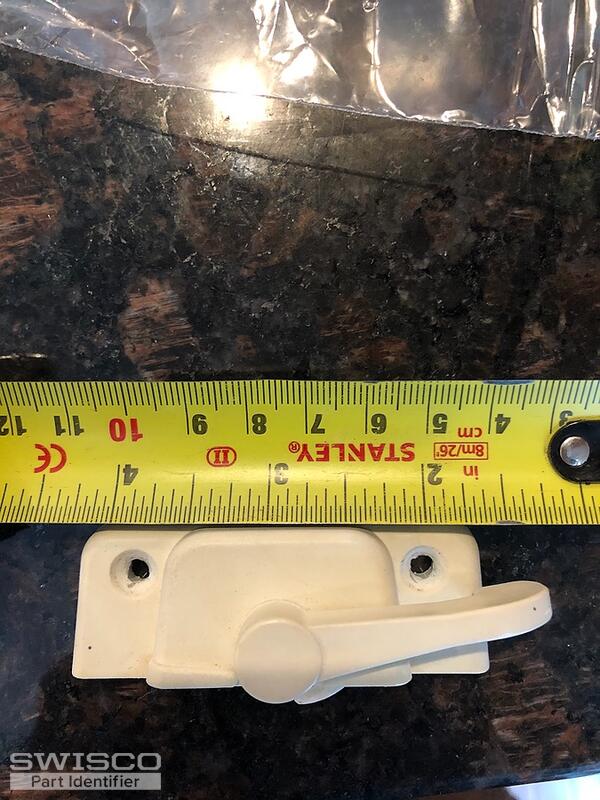

The latch is 1 7/8 center to center spacing and the keeper is 2 1/16
Emily
Emily from SWISCO
SWISCO
Expert

Take a look at our 90-286 sash lock and 90-279 keeper. Review our dimensions and compare them to your current hardware to see how they match up. See what you think.

Home Owner from Virginia
Do you have a plastic keeper in these dimensions?
Emily
Emily from SWISCO
SWISCO
Expert

I'm not quite sure which dimensions you're referring to. We have the following keepers that measure 2-1/16" on installation hole centers: 90-058, 90-177 and 90-279.
