Window latch

Start a new Discussion

Quick Learner

Nov 26, 2021 2:40 am

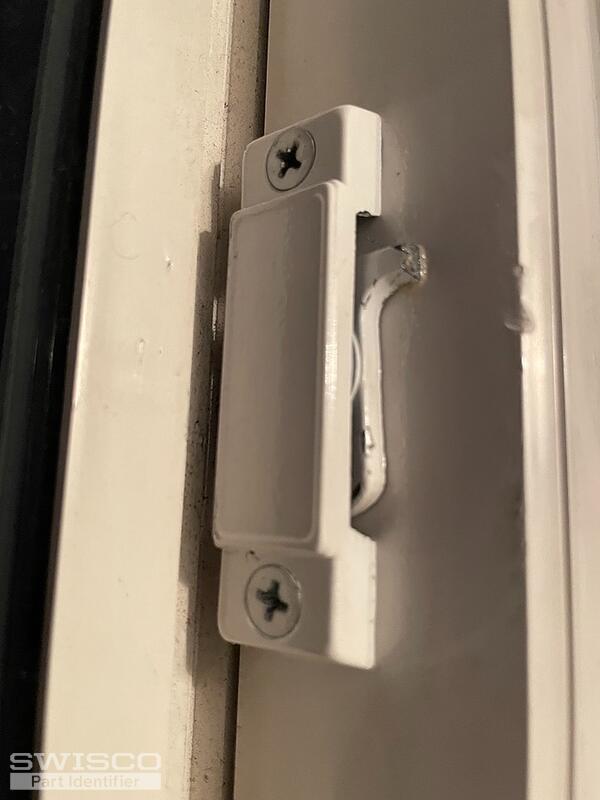

Here is the picture!

1 user uploaded image

8 Replies

Emily from SWISCO

Nov 30, 2021 2:43 pm

Hello!

It looks like you need a new sash lock. Before I recommend anything, can you write out the distance between the two installation holes, measured from center to center? We have a large selection of sash locks and that should help us narrow down some options.

Thank you!

Quick Learner

Dec 1, 2021 4:11 am

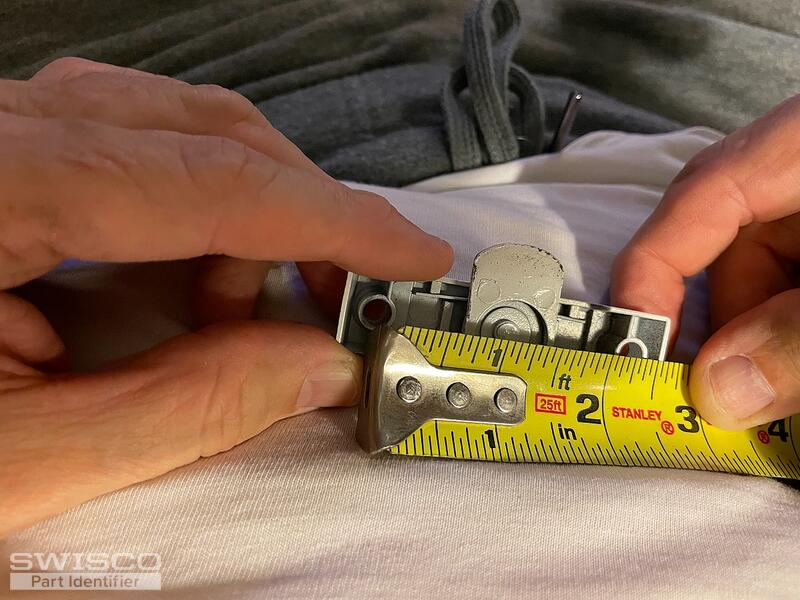

Here is a picture of the measurements.

1 user uploaded image

Emily from SWISCO

Dec 1, 2021 8:42 am

It's hard to get accurate measurements from pictures, can you write out the hole center spacing instead? If it's 2-1/4", take a look at our 90-005 and 90-009. These look similar but each lock has a different style locking tab. Compare our dimensions to yours and see which matches best.

Quick Learner

Dec 3, 2021 7:11 am

I don't understand what you mean by hole center spacing. Do you mean the rectangle in between the two holes? I am sorry for all the emails, but I am not mechanical inclined ?

Emily from SWISCO

Dec 3, 2021 8:23 am

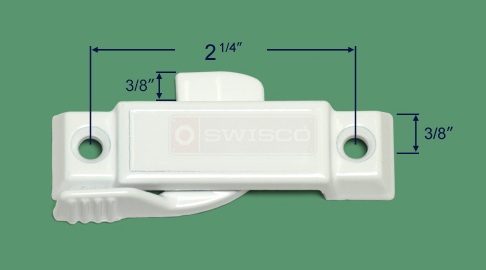

I'm referring to the two installation holes or screws holes on your sash lock. You'll need to measure the distance between those two holes, starting from the center of each hole. Does this make sense? I'll post the dimensions for our 90-005 down below as a reference so you can see what I mean. The 2-1/4" measurement is the hole center spacing.

Quick Learner

Dec 27, 2021 12:11 pm

Hello Emily,
It has been a long time since my last email. The window latch seems to have the code
MDC on what seems to be the state of Texas
7

Emily from SWISCO

Dec 28, 2021 8:40 am

Hello!

Were you able to see my previous response? Your sash lock resembles our 90-005 and 90-009, but you'll need to review our dimensions and the different style locking tabs to see which matches best.
