Hi Friends, We and 4 of our neighbors need the same window latches. We probably need 20-30 of them. Can you please help us ? Thank you!! Gratitude, Linda
Window latch replacements
Quick Learner from Arizona
Aug 15, 2023 12:42 pm
2 user uploaded images
6 Replies
Tom from SWISCO
Aug 15, 2023 1:56 pm
Hello, Linda! These are generic locks used by many, many different window brands across the industry. Yours in particular could be one of two different styles: either the 90-005 or 90-009.
The only difference between them is the design of the lock sweep itself; this is the tab that comes out when you flip the lever. You'll note that the 90-005 sweep is totally flat, whereas the 90-009 sweep has a hooked contour so as to accommodate a keeper. You should check the sweep on your old lock to verify the better match. Otherwise I'm very confident it's one of these two.
Alternate image for 90-005
Alternate image for 90-009
Quick Learner from Arizona
Aug 15, 2023 3:16 pm
Thank you Tom! Most appreciated!
Tom from SWISCO
Aug 16, 2023 11:16 am
You're most welcome! Please feel free to reach out if you had any other questions. We're always here to help.
Quick Learner from Arizona
Aug 18, 2023 3:35 pm

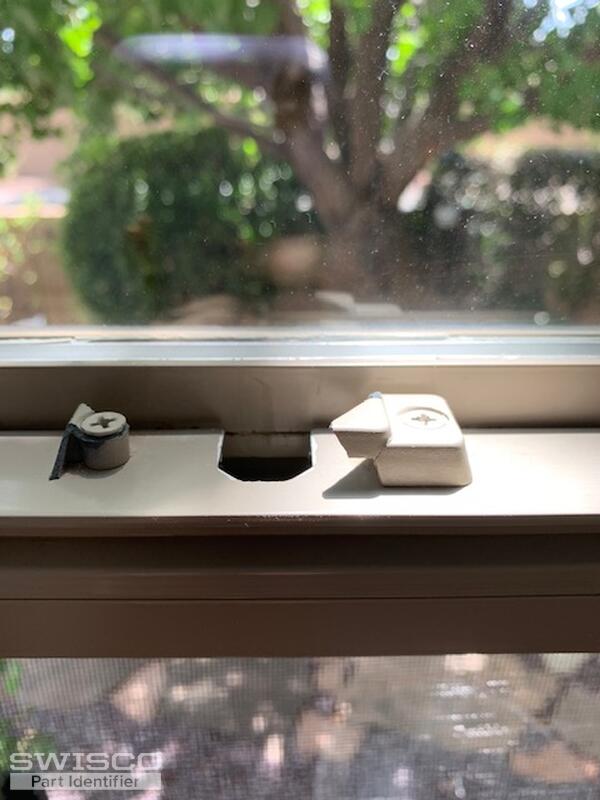

Hi Tom, The 2 items mentioned were perfect size but it appears there is no place for the security arm when we pull the latch to lock. Maybe we need one with pressure or a different arm mechanism? I've attached 2 photos. Is there another latch you may recommend? Thanks again for all of your help! Best, Linda
2 user uploaded images
Tom from SWISCO
Aug 21, 2023 9:00 am
I'm very sorry to hear about the trouble. I'm not sure what the issue may be. Would it be possible to see a photo of the lock removed? I'm specifically interested in the sweep tab. I'm wondering if yours is a different design than the two I described above, or if this is an issue with the keeper (which is the component that the sweep locks onto).
