Window lift parts

A quick learner from 30183 says:

Salt air ruined lifts on 10 windows.

David

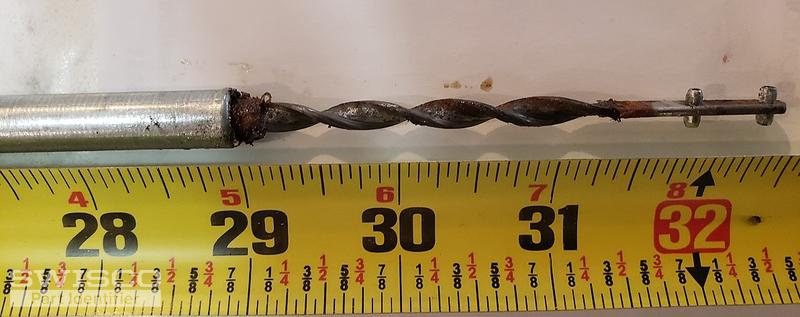

Thumbnail of the uploaded file named 20200227_135347.jpg

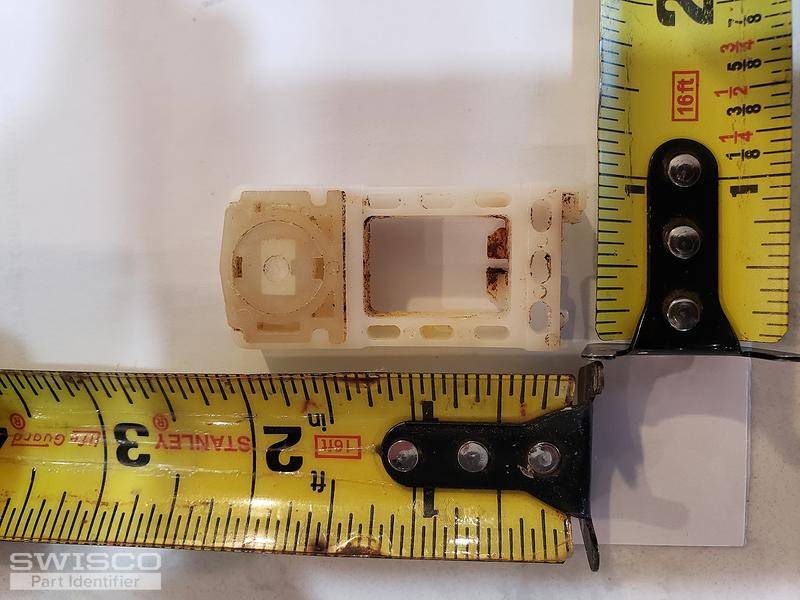

Thumbnail of the uploaded file named 20200227_134456.jpg

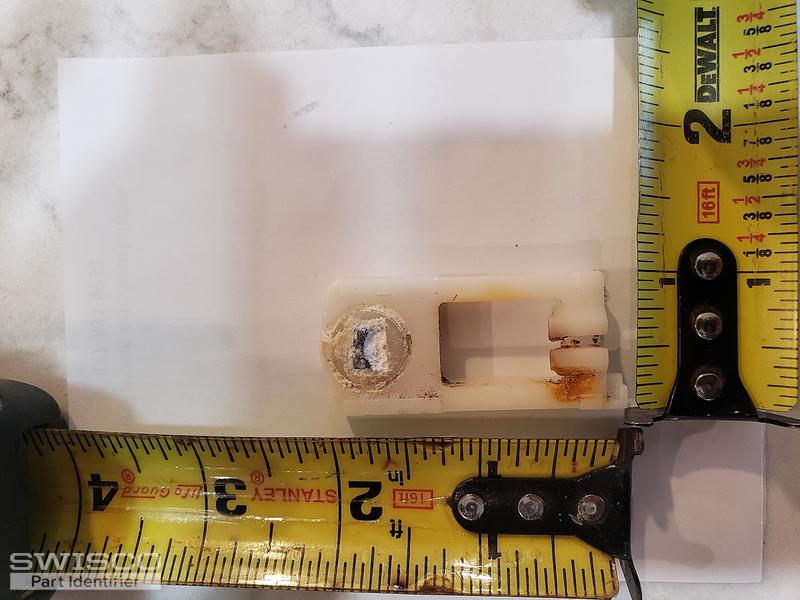

Thumbnail of the uploaded file named 20200227_134424.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello, David. Looks like you need a new spiral balance and pivot shoe. For the spiral balance, I recommend our Series 900, which has a 3/8" diameter outer tube. I think this is what you want, but you should check the diameter of your tube to make sure it matches.

I'm not as certain about the pivot shoe. It could be something like our 15-212 or 15-045, but you'll need to look over our dimensions for both to confirm which, if either, will work. Let me know what you come up with.
