Window lock help please

Contractor from Miami

Apr 1, 2019 4:50 pm

Hi

These are from a now defunct company in Miami called Security Windows. The building and windows are from 1995.

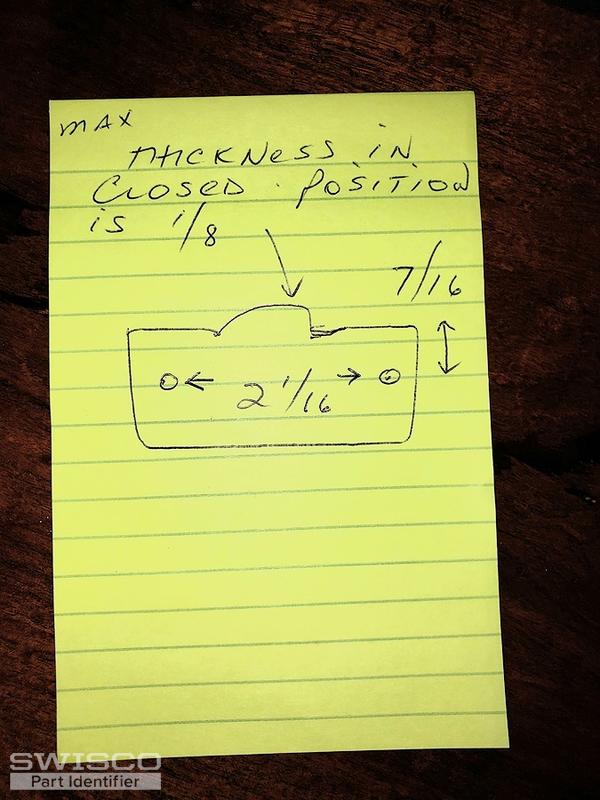

They are 2 1/16 hole to hole. From the hole to the top they are 7/16.

The width of the part which slides into the back fixed window channel in a fully locked position is about 1/8

3 user uploaded images

4 Replies

Tom from SWISCO

Apr 2, 2019 1:11 pm

Thanks for posting! Take a look at our 90-161 lock and keeper set. Could this work for you? The dimensions seem to match up, but let me know what you think.

Contractor from Miami

Apr 2, 2019 3:15 pm

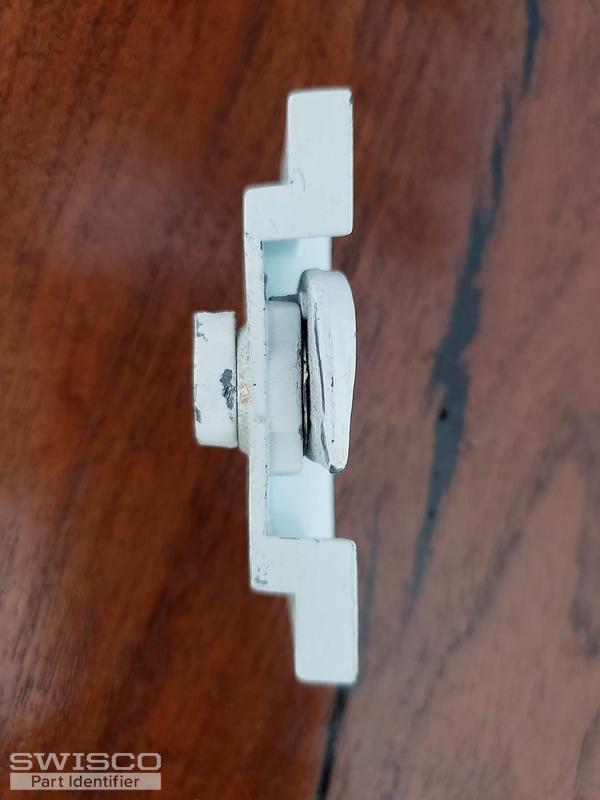

Hi thanks. They actually don't. I also don't need the rear piece. The lock tongue goes into a channel of the rear fixed window. I'm sending some more pics.

Thanks

2 user uploaded images

Paul from SWISCO

Apr 3, 2019 9:40 am

After researching our catalog, I am unable to find a lock with your dimensions that also has a flat locking tongue. One alternative is that you could use our 90-005, but you would need to set it back away from the top sash and re-drill new holes. If you did do this, you would need to be careful not to drill too deep, as to not risk damaging the sash frame or even the glass itself.
