Good Friday morning. Looking to replace/ update old hardware.

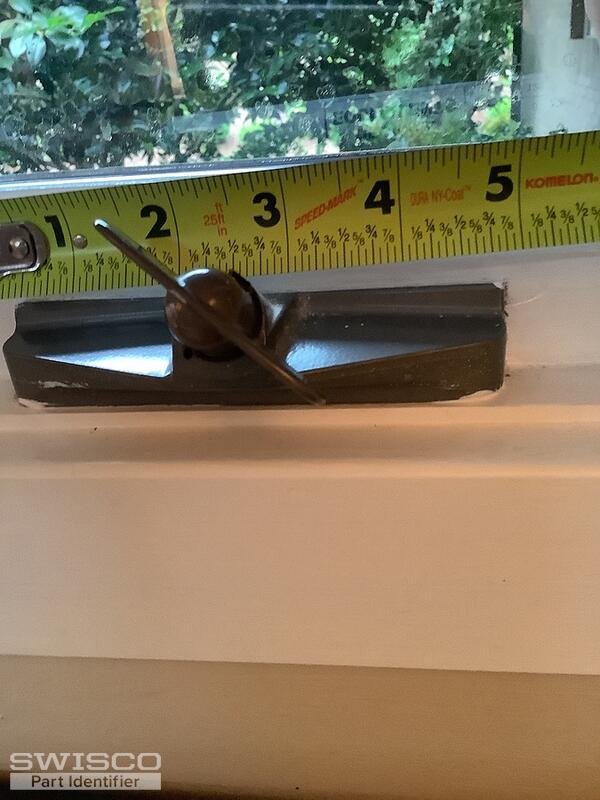

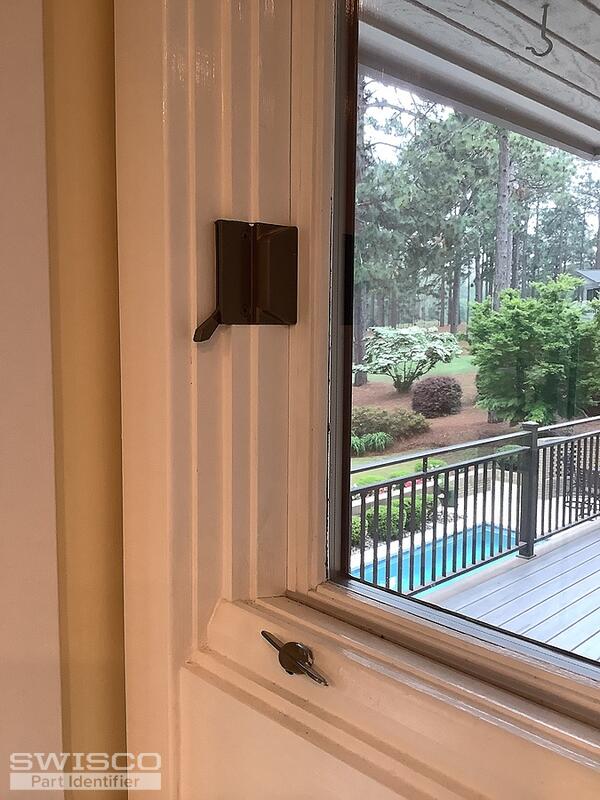

Old craftline windows. 1994 vintage. Truth vertical locks/Number 45098. T crank handles/Only number is 5. ?- Measures 3/8 diameter opening.

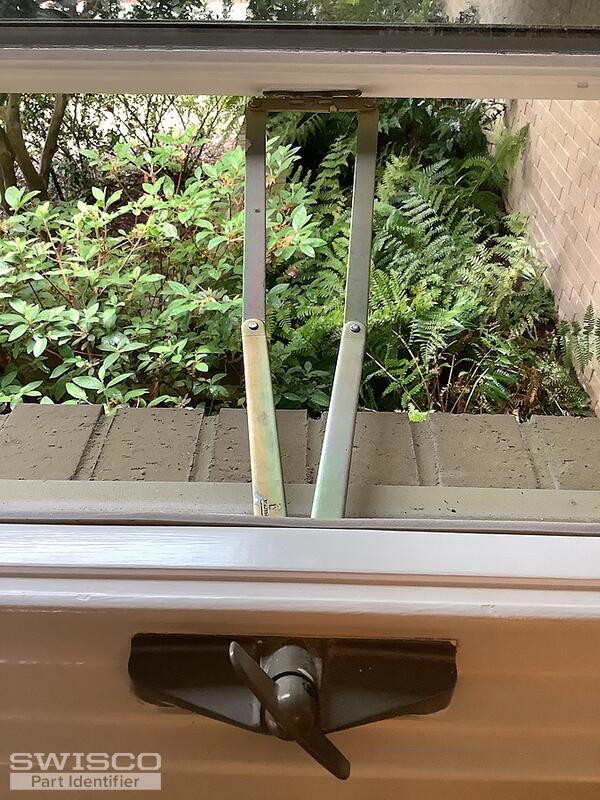

Now the horizontal opening devices seem to be connected and not just a cover. Can you help identify. I would like all white replacements. Thanks so much
Hello! We can help with all of these parts. Starting with the lock, I recommend our 38-075. Note that you may need to also update the keepers to our 38-089 to ensure that this newer lock will latch properly. Basically, if the current keepers aren't the 38-089 right now, then they need to be updated.

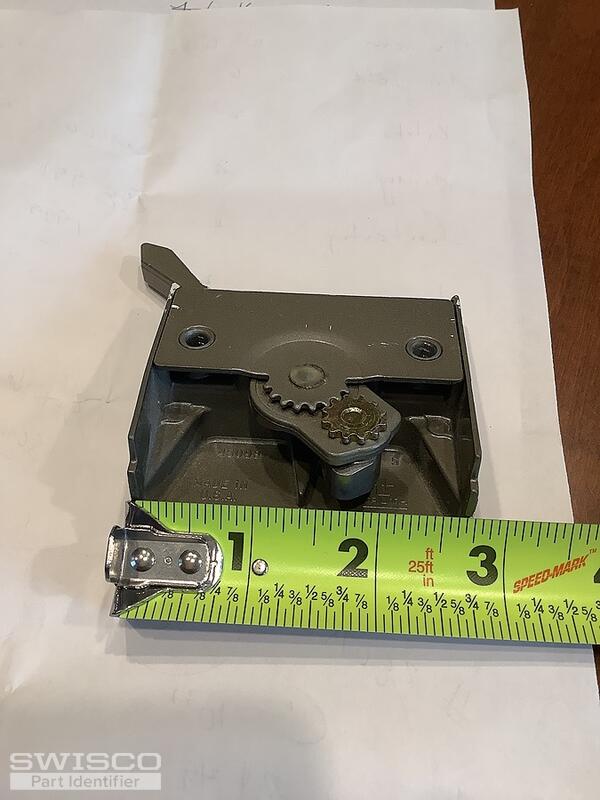

As for the operator, there are three possibilities depending on size: 39-083, 39-140, or 39-143. These sized based on the "elbow to elbow" measurement when fully closed. Regardless of what size you go with, you can use the 39-102 T handle on each one (sold separately). Or, you can just reuse the T handles you have now.

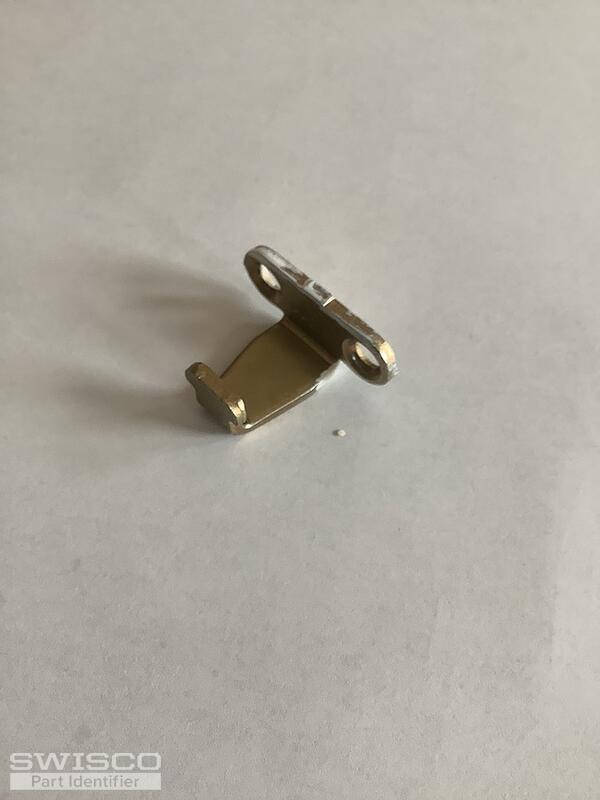

I agree, that keeper appears to match our 38-089. There should be no need to update your keepers.
We do not carry white screws for these parts, unfortunately. However you can take your old screws to a local hardware store and have them match up the size in white.
