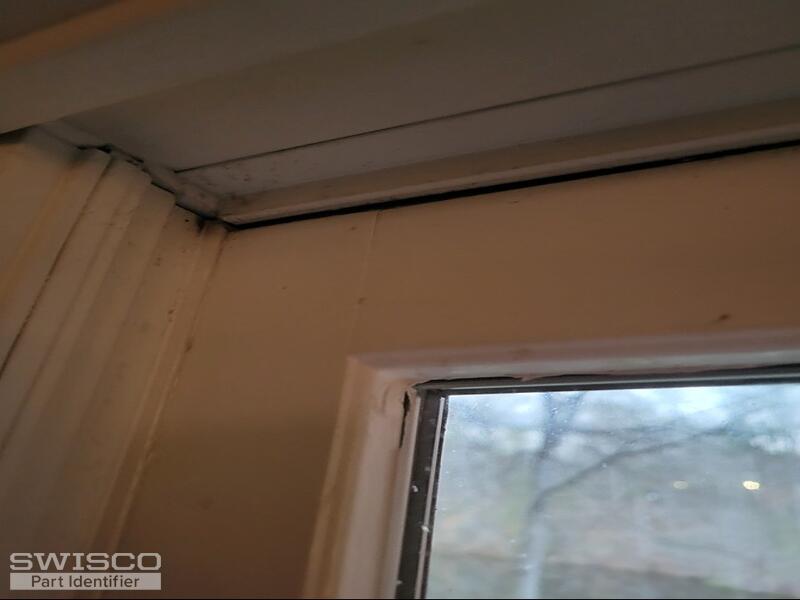

In photo 5250 shows how the top of the window has dropped slightly and it has a small gap in the left top corner. Which allows air and pest to enter my home.
Window locks are 2 1/16 center hole to hole
Window lock keeper are 2 1/16 center hole to hole
I'm leaning towards the items below? I will need about 30 each
Window Lock with Alignment Lugs, 2-1/16"
Product Code: 90-077A
Truth Window Lock Keeper, 2-1/16"
Product Code: 90-177

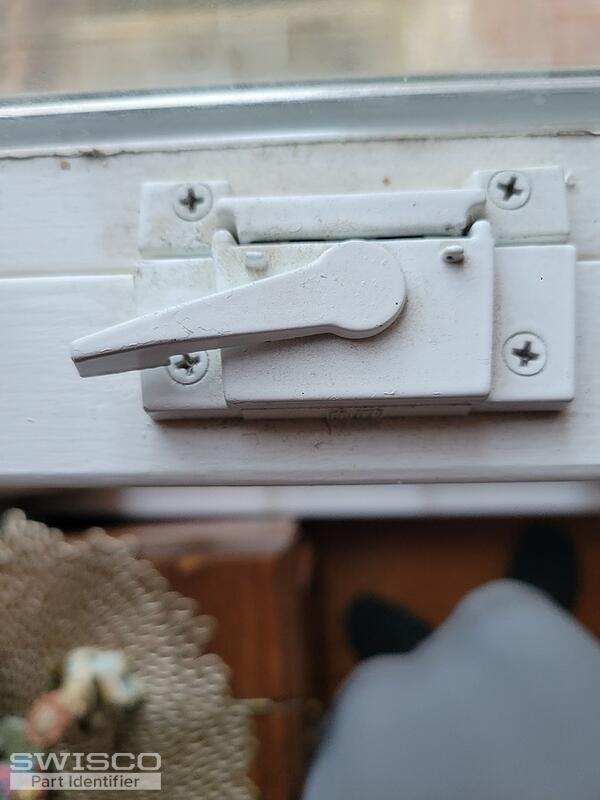

Window lock and keeper
Handy Person from Eden, NC 27288
Apr 5, 2024 8:05 pm
5 user uploaded images
4 Replies
Casey from SWISCO
Apr 8, 2024 11:11 am
Hello,
The backset of your installation holes looks like a closer match to the 90-278, which has the same 2-1/16" hole spacing. You'll notice that ours doesn't use the same alignment lugs, which shouldn't affect the functionality of the lock since the window should have settled over time. Review the specifications below and see what you think. Thank you!
Dimensions for 90-278
Handy Person from Eden, NC 27288
Apr 8, 2024 11:58 am
Hi Casey,

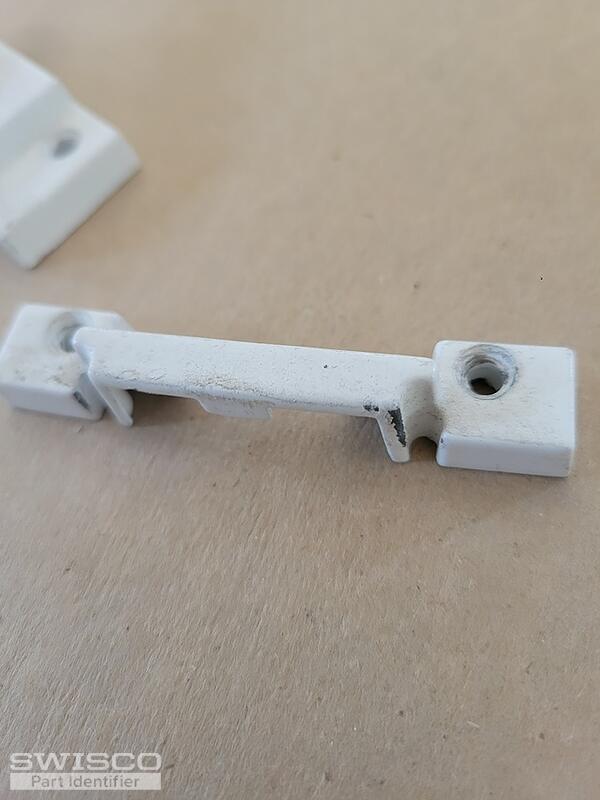

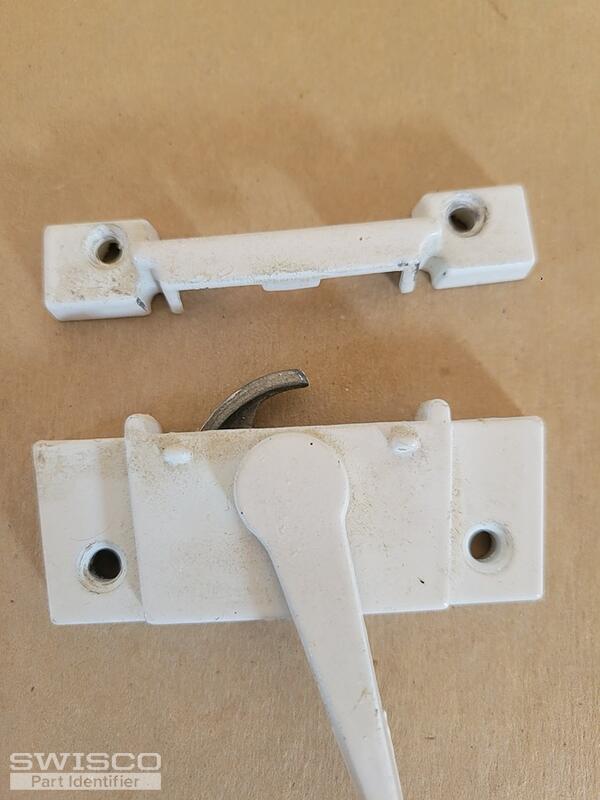

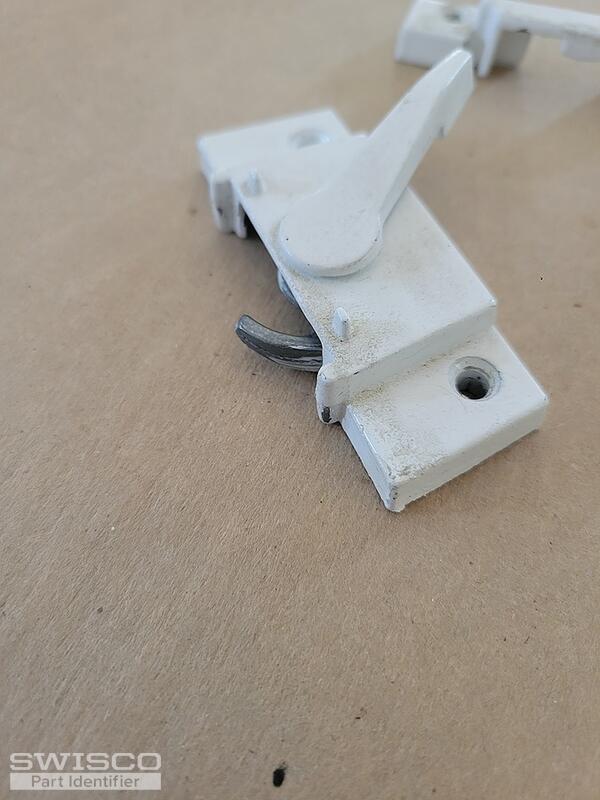

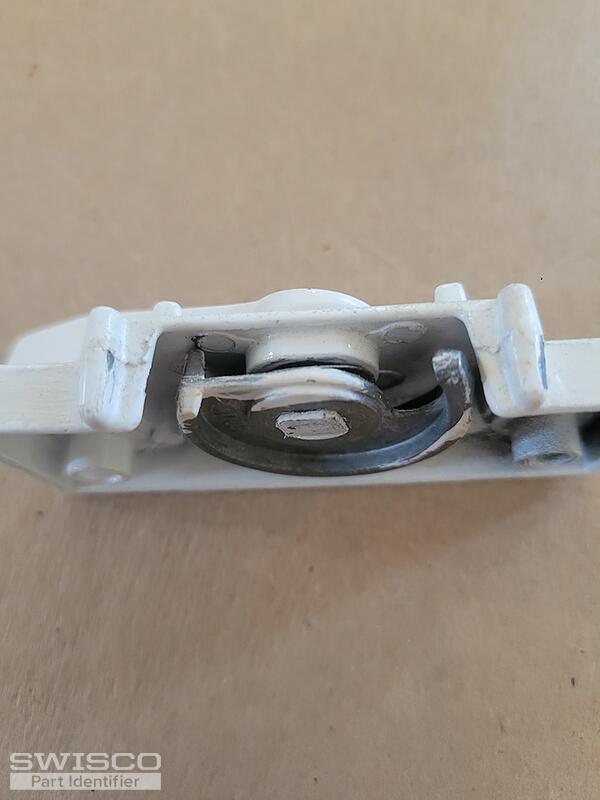

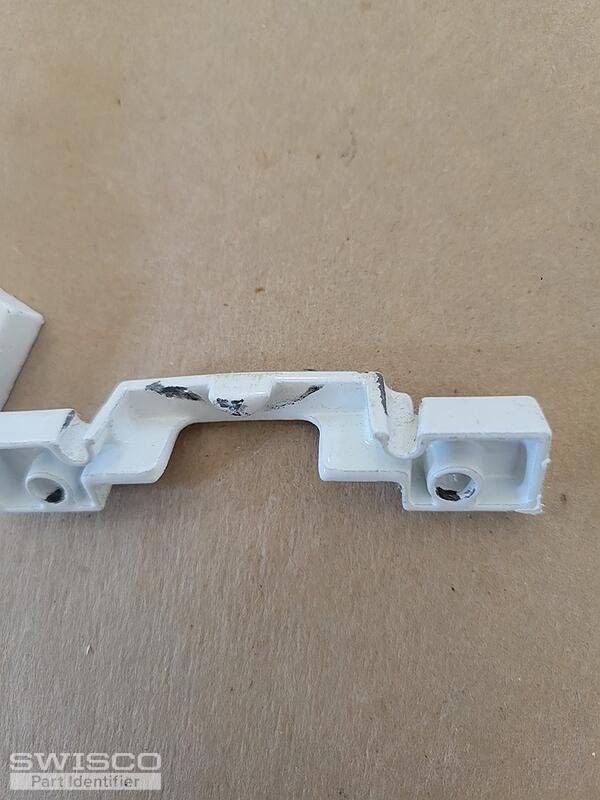

I took the lock and keeper off the window.
I took the lock and keeper off the window.
5 user uploaded images
Casey from SWISCO
Apr 8, 2024 12:44 pm
Unforutnately, seeing the lock and keeper uninstalled doesn't give us any new information in this case. You'll need to measure your parts to confirm if they match the diagram of the 90-278 included in our last response.
