Window locking arm

Handy Person from Watertown MA
I need the part that the locking arm rests in.
2 user uploaded images
6 Replies
Tom
Tom from SWISCO
SWISCO
Expert

It sounds like you might need a keeper, but I'm afraid I can't determine that based on these photos. Would it be possible to see a photo of the part in question? At the very least, I need to see the back side of the lock to see what kind of locking arm it uses. There are many, many varieties of this style of lock, so I can't make a recommendation based on just the interior lever.

Handy Person from Watertown MA

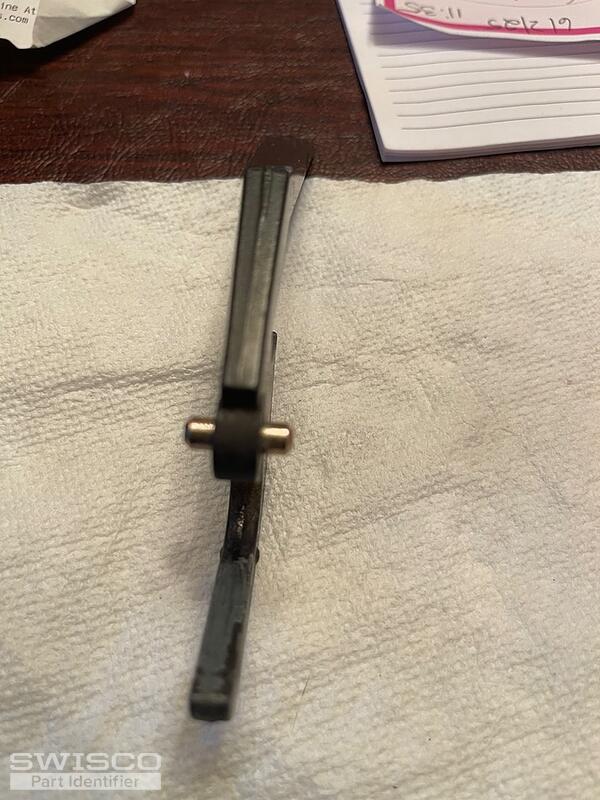

Pictures include the locking arm and the broken "keeper"
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thank you! The closest match I was able to find to your older style lock assembly was our 38-036. This may even be a more modern version of your part, but look it over and see what you think. This is available in a black finish.

Handy Person from Watertown MA

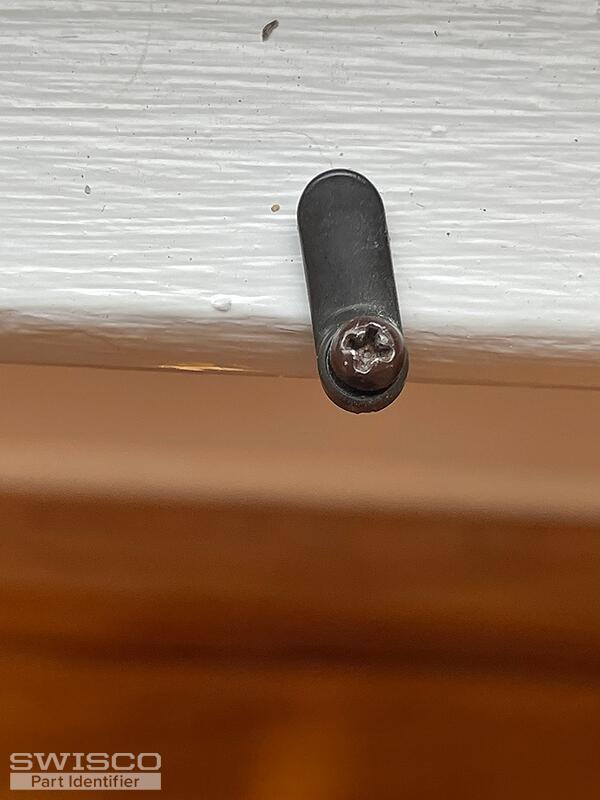

Thanks for the link.  That looks pretty close so I will order one and go from there.  Do you also have these screen holders?  Thank you for the help with this.
1 user uploaded image
Tom
Tom from SWISCO
SWISCO
Expert

Great! Glad they match.

Concerning this screen clip, we don't sell this exact style but we sell a ton that can likely work instead. These are very simple parts so they don't have to be an exact match, you just need to make sure the offset is right. See our 70-209 for one example, though you'll have to check our measurements first. You can also see our full selection here.

Detail of 70-209
Detail of 70-209

Profile view of 70-209
Profile view of 70-209
