Window locks

Home Owner from Wenatchee wa

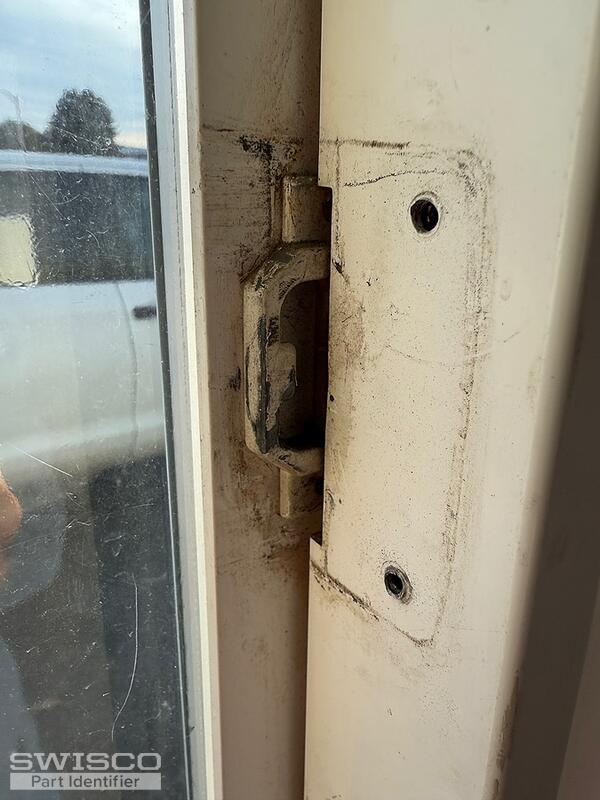

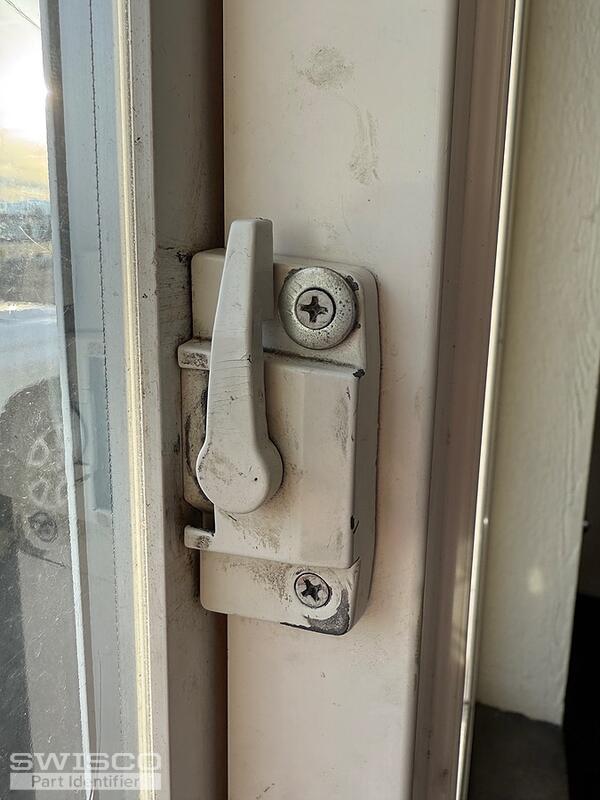

Canon find any markings or numbers on hardware.
5 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to help but it's tough to make out accurate dimensions from photos. We'll need you to write out the exact distance between the center of the installation holes to narrow down your options. If you need new keepers as well, we'll need to see yours uninstalled and confirm the hole spacing needed to install those as well. Thank you!

Home Owner from Wenatchee wa

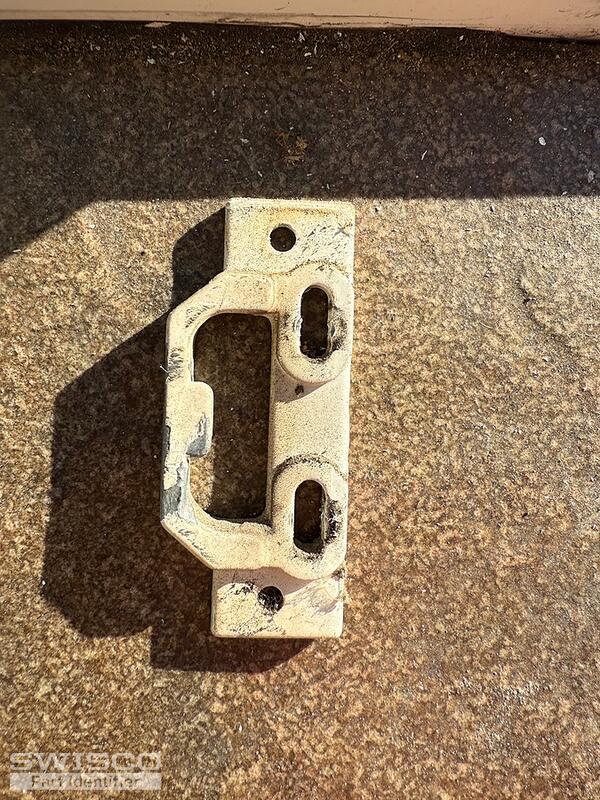

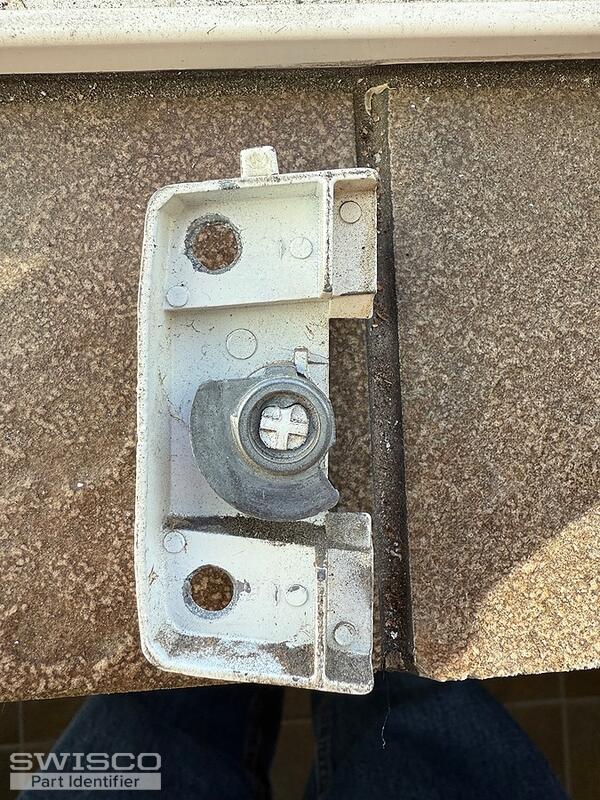

The locking part on the sliding window isis 2 1/16 an inch center of holes for screws.  The latch on the rigid part of the window is 1 inch center of holes for screws.
2 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. Our closest match for your sash lock appears to be the 90-278 but the backset of our part is only 11/16" as shown below. We also offer the 90-237 or 90-328 surface-mounted keepers that are similar to yours. We can't make any guarantees but review the specifications below to see if you could adapt these parts to work for your repair.

Dimensions for 90-278
Dimensions for 90-278

Alternate image for 90-237
Alternate image for 90-237

Alternate view of 90-237
Alternate view of 90-237

Dimensions for 90-328
Dimensions for 90-328

Dimensions for 90-328
Dimensions for 90-328
