Window locks and corner pivot bars

A quick learner from Syracuse, NY says:
April 24, 2020

I am in need of several window parts for a total of 5 windows. I am uploading all together 14 pictures. . Thank you

Thumbnail of the uploaded file named D0DEC259-DB93-4E94-ADFC-66809E34FB7A.jpeg
Thumbnail of the uploaded file named 69C0BF62-18DB-4FCA-9960-858CB88AEAE4.jpeg
Thumbnail of the uploaded file named 3B4DB9BF-BC00-446F-8912-70FD4DB26D95.jpeg

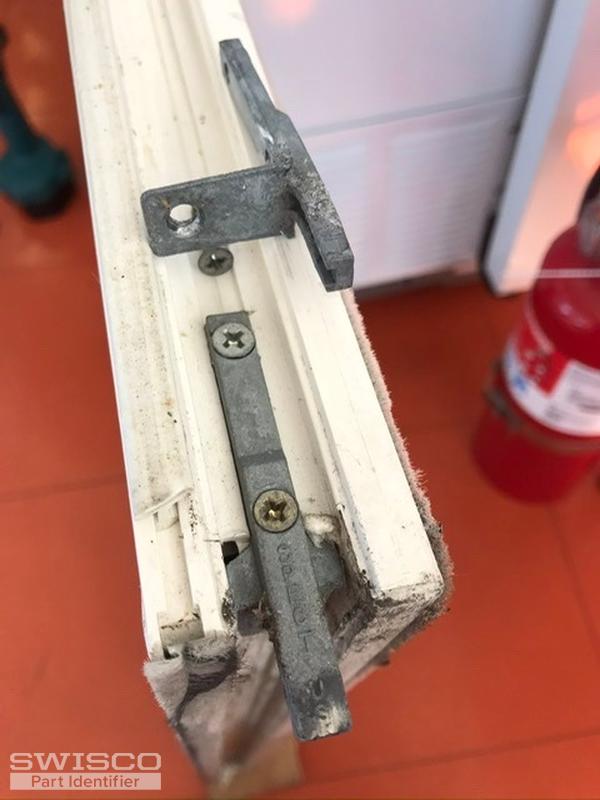

Thumbnail of the uploaded file named C1C25A62-5235-4A30-897A-B93066521171.jpeg
Thumbnail of the uploaded file named 788A57FA-F9D9-4DC2-B213-5266A9E44D6B.jpeg
Profile picture of Tom
Tom from SWISCO responded:
April 28, 2020

Hello again. Your pivot bar here looks like our 26-357, but I'm not sure what the lock is. Can you tell me the distance between the two installation holes? Make sure to measure from the center of each hole, not their edges.
A quick learner from Syracuse, NY says:
May 11, 2020

The distance on the lock is 2.05 center to center and the distance from the mounting hole center to the edge facing part 2 of the lock set is about 1.4 ". The distance from mounting hole centers on the skinny part of the lock is also 2.05 - 2.08. The measurement have been taken with a digital caliper. They should be pretty much accurate.

Profile picture of Tom
Tom from SWISCO responded:
May 12, 2020

Thank you! The closest match we have to those dimensions is our 90-278. Look this part over and see if you can use this to repair your window.
Pivot Bar, Spectus
Pivot Bar, Spectus
26-357
$2.97
Lock & Keeper, 2-1/16"
Lock & Keeper, 2-1/16"
90-278
$3.49
