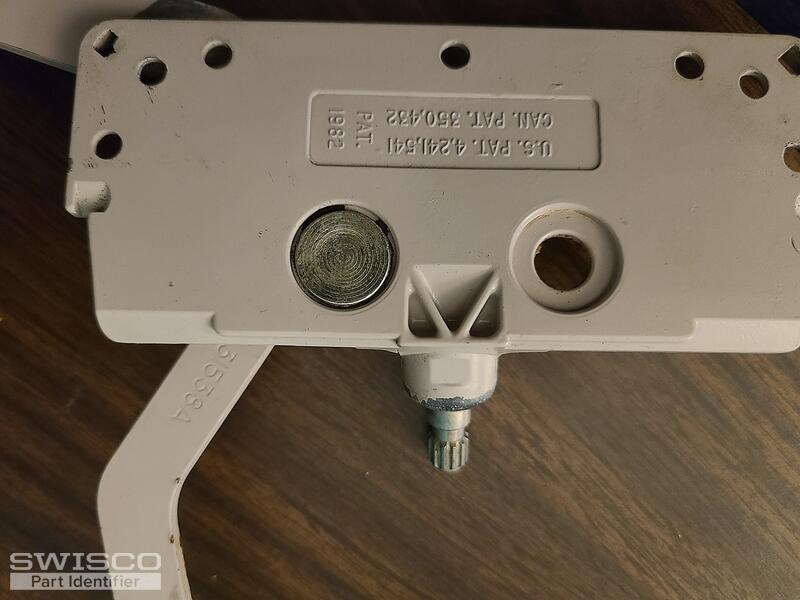

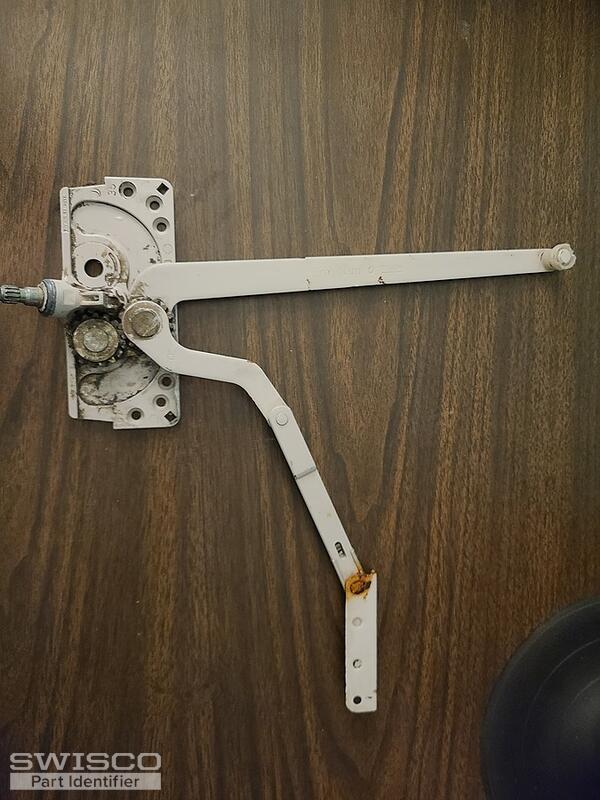

The base that mounts to the sill is 2 1/8" front to back, 5" left to right. The straight arm is 9 1/2" long. The curved arm that extends to the right is approximately 8" long. Thank you
Paul from SWISCO responded:
October 20, 2022
Hello,

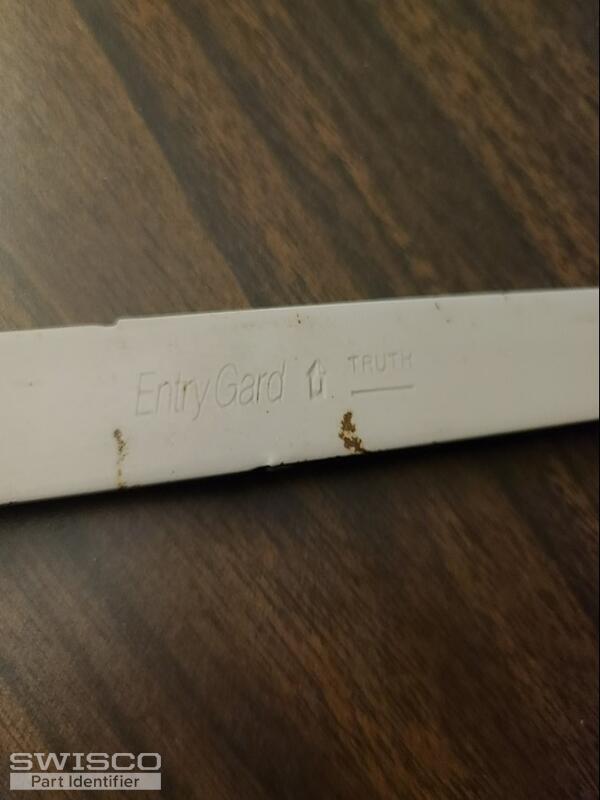

Depending on the length of the shorter link arm, you could have either the EntryGard 39-032 or Caradco 39-156 operator. Take a look and see how the dimensions compare to yours. Thanks for posting!
