Window operator 39-002

Question

Attached is a picture of my window operator. I would like to know if your operator 39-002 will replace mine. I notice that the handle on 39-002 is on the opposite side. Does that matter? I measured mine at 9 inches with a 4" between the screw holes.

Thanks, Randy

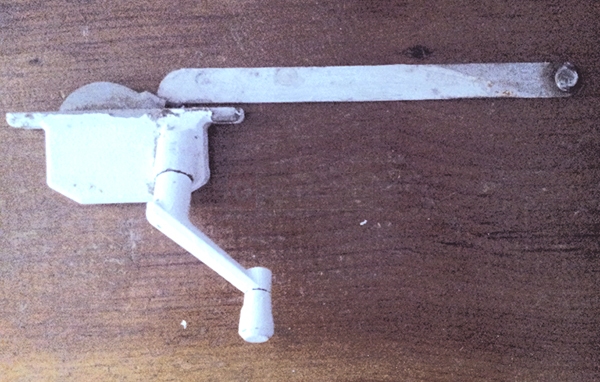

User submitted a photo of a window operator.

Dave Sr. · Accepted Answer

I think the 39-002 is a great place to start. Take note that the inside hole centers are 3-7/8" apart, while the outer holes centers are 4-3/4" apart. Furthermore, the arm length is 9". I see what you mean when you say that the handle is on the other side, but that's just because some manufactures have their machinery and dies set up differently from one another. It wont effect the function of the operator.
