Window operator

A home owner from VERO Beach FL says:
September 29, 2020
Holes look To be 5 1/4 or 5 3/8 x 1"
Thumbnail of the uploaded file named 91ABD6D1-815A-4209-8C30-B9D62AFECC7A.jpeg
Thumbnail of the uploaded file named 2D332119-0D39-41B1-A7AE-CB1A8BD2E946.jpeg
Thumbnail of the uploaded file named AF73193C-0D9C-40DD-8FA3-A46C8F626D26.jpeg

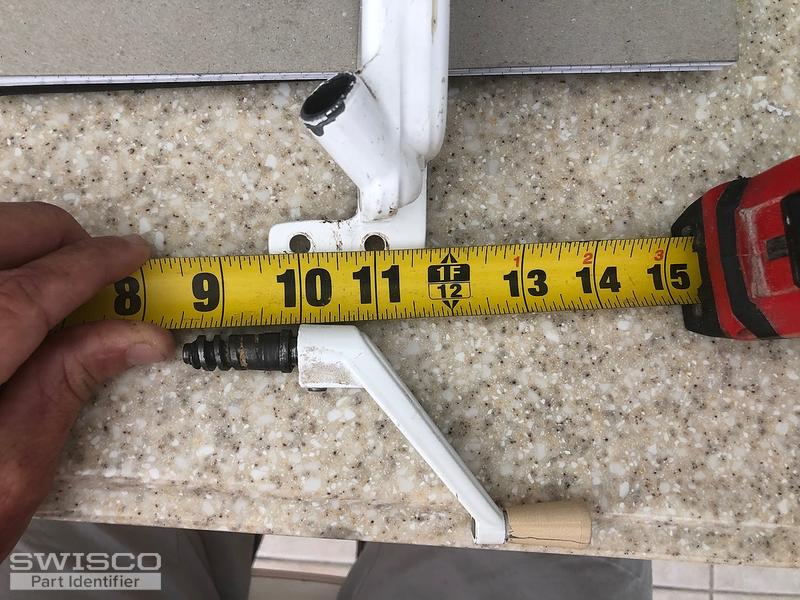

Thumbnail of the uploaded file named D71B23D1-24EF-4C05-BB5D-10704CC4B6AA.jpeg

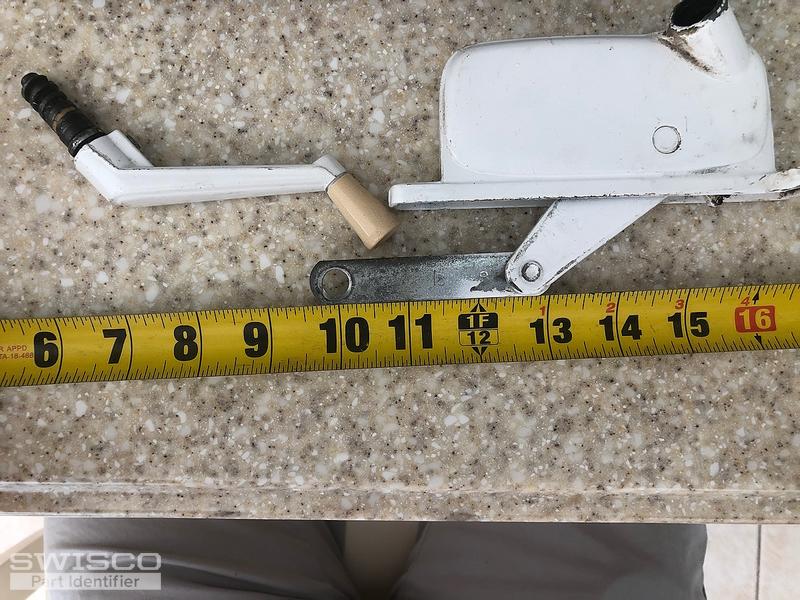

Thumbnail of the uploaded file named 19360883-7653-4CE4-AE9B-E76BFC07477A.jpeg
Profile picture of Bob
Bob from SWISCO responded:
October 2, 2020

Hey there. Can you show me a clear picture of the holes on the top tab as well? That should help narrow this down. Thanks.
A home owner from VERO Beach FL says:
October 2, 2020
There are three holes two on the bottom one on the top

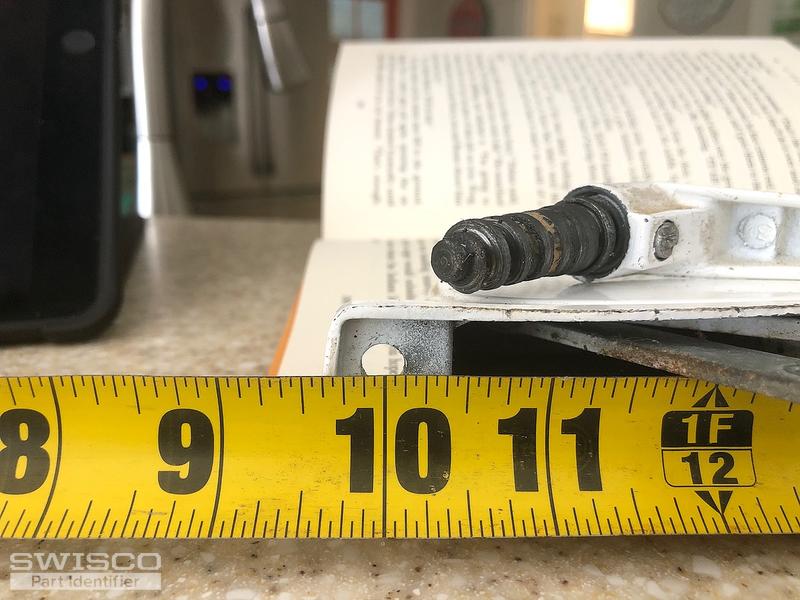

Thumbnail of the uploaded file named 274C3673-D8EC-4FB7-BEE0-62579D373411.jpeg

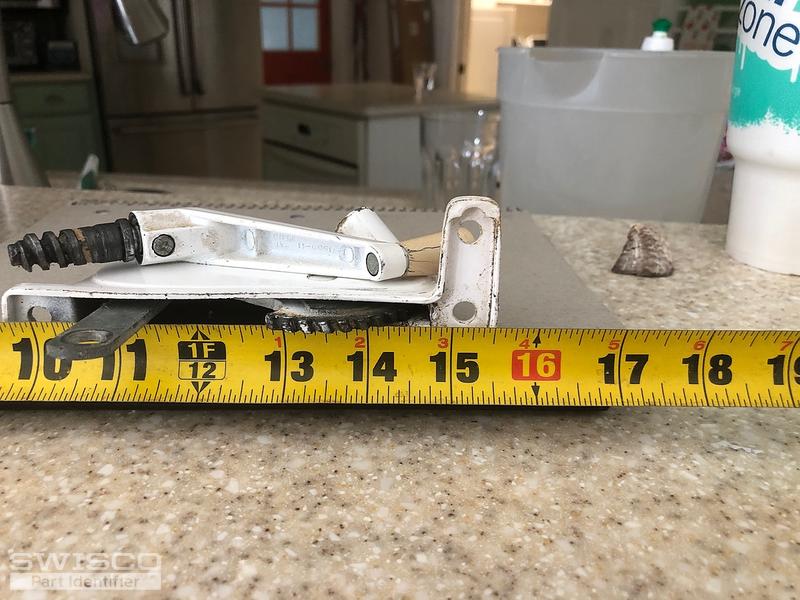

Thumbnail of the uploaded file named D1F240A1-660A-4328-AA81-8993561DF0C6.jpeg

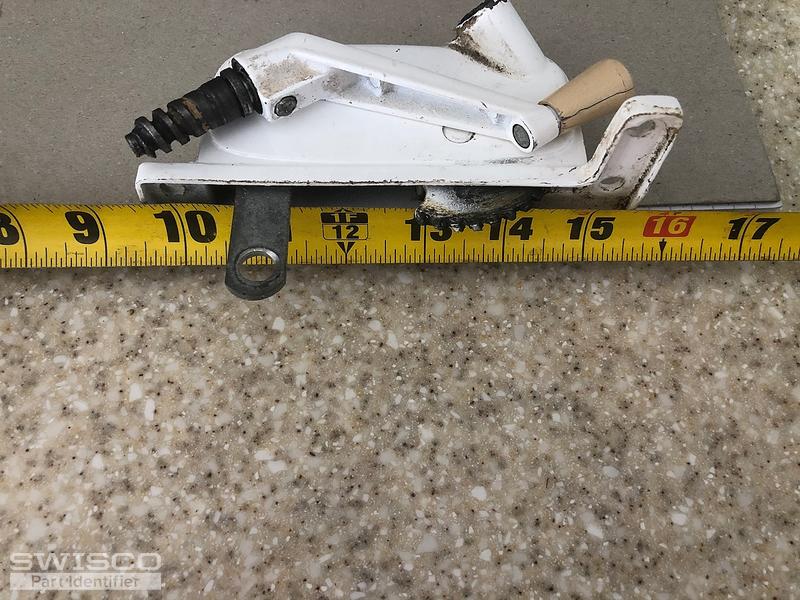

Thumbnail of the uploaded file named 2AEE7F2B-65C3-4004-8862-540B52C183B7.jpeg
Profile picture of Bob
Bob from SWISCO responded:
October 5, 2020

Apologies if I wasn't clear enough. I meant the hole pattern on the top tab of the operator, which usually has only one or two holes. Check out our 39-074, 39-194, or 39-419. Look over their dimensions and see if you think one of these could work for you.
A home owner from VERO Beach FL says:
October 5, 2020
There are two holes on bottom That are exactly 1 inch apart. There is one hole at the top that is 5 3/16 from bottom
A home owner from VERO Beach FL says:
October 6, 2020
Holes look To be 5 1/4 or 5 3/8 x 1"

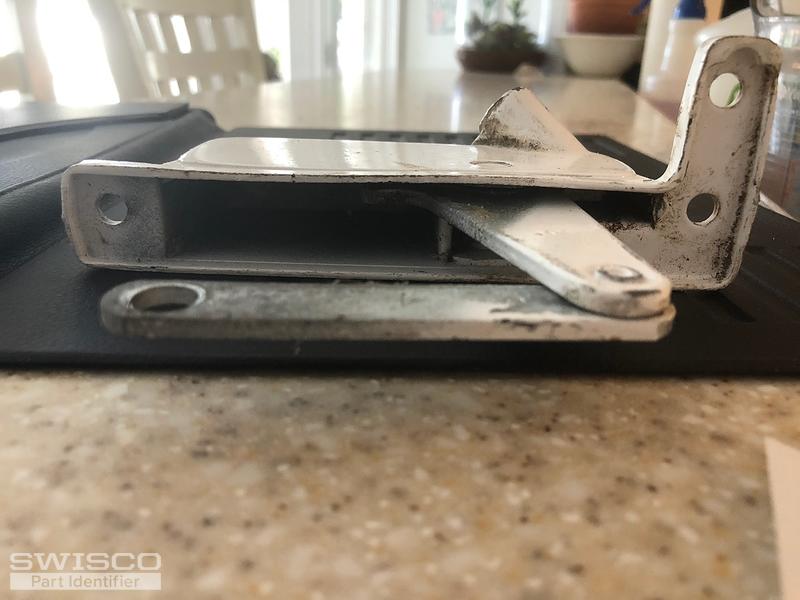

Thumbnail of the uploaded file named A95F27C0-7A41-497F-8294-2515AE2E934B.jpeg
Profile picture of Bob
Bob from SWISCO responded:
October 6, 2020

To me the 39-194 or 39-012 might be closest. Take a look at the dimensions of both and let me know what you think.
