Window operators

A handy person from Pennsylvania says:
August 31, 2022

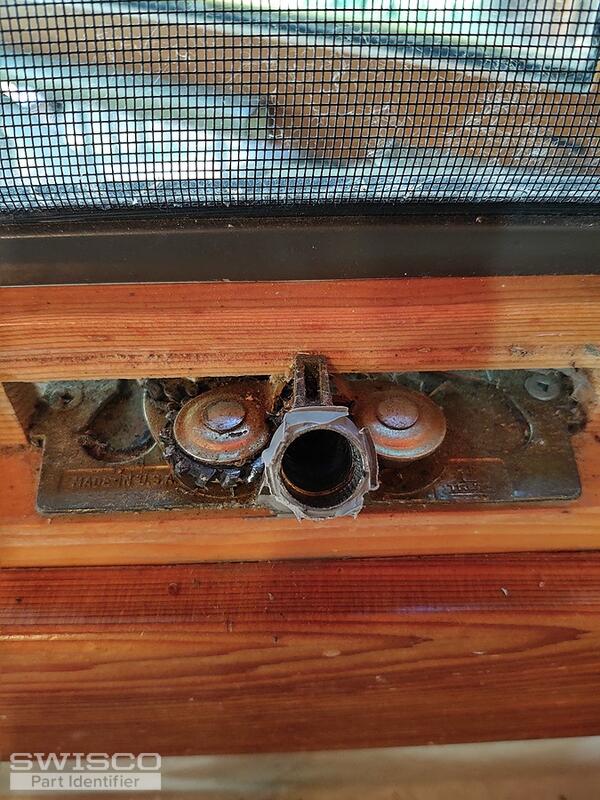

The housing on the window operator crank cracks after many years of useage, so the worm gear no longer stays engaged when torque is applied. I need 6 of these crank mechanisms. Do I need to buy the entire window operator assembly, or can I just buy the crank mechanism? Whatever I need to buy, I need 6 of them to replace all of the window operators in my cabin.
Thumbnail of the uploaded file named IMG_20220831_082920097_HDR.jpg
Thumbnail of the uploaded file named IMG_20220831_082934488_HDR.jpg
Thumbnail of the uploaded file named IMG_20220831_083020856_HDR.jpg
Thumbnail of the uploaded file named IMG_20220831_083137726_HDR.jpg
Profile picture of Casey
Casey from SWISCO responded:
September 1, 2022

Hello,

Since the worm gear that the handle attaches to has broken off of your operator, unfortunately, the entire assembly will need to be replaced. Take a look and compare the dimensions shown on the 39-031 and 39-032 product pages to your assembly, paying close attention to the length of the shorter link arm.

These operators are compatible with the 39-107FK handle and cover kit if you need those parts as well. Thank you!
