Window part

A home owner from 61111 says:
September 23, 2021

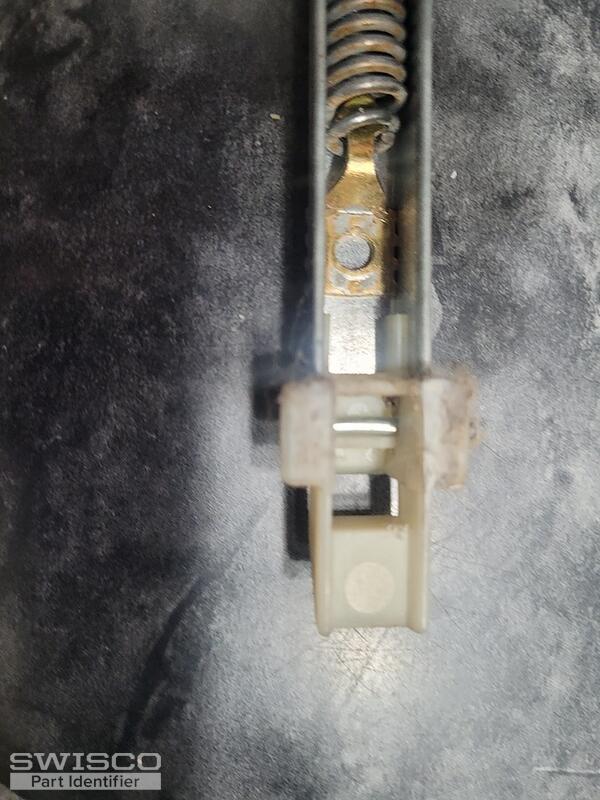

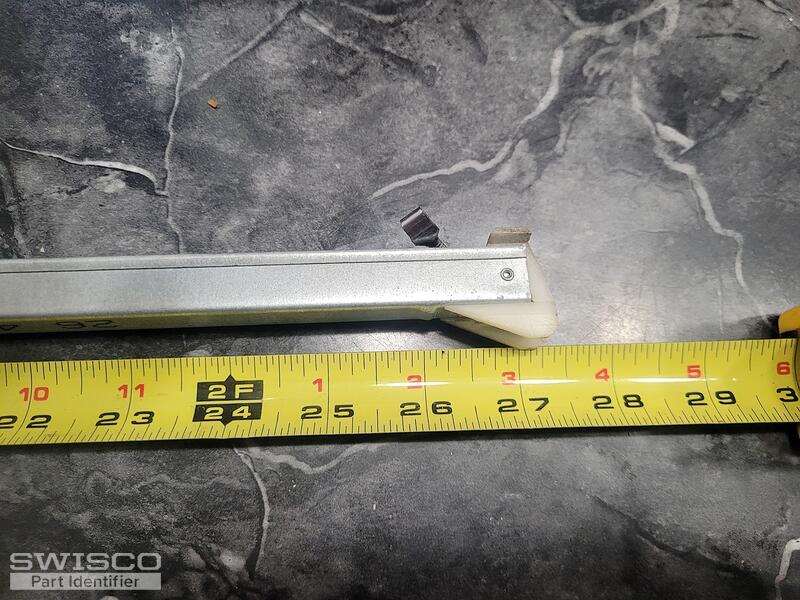

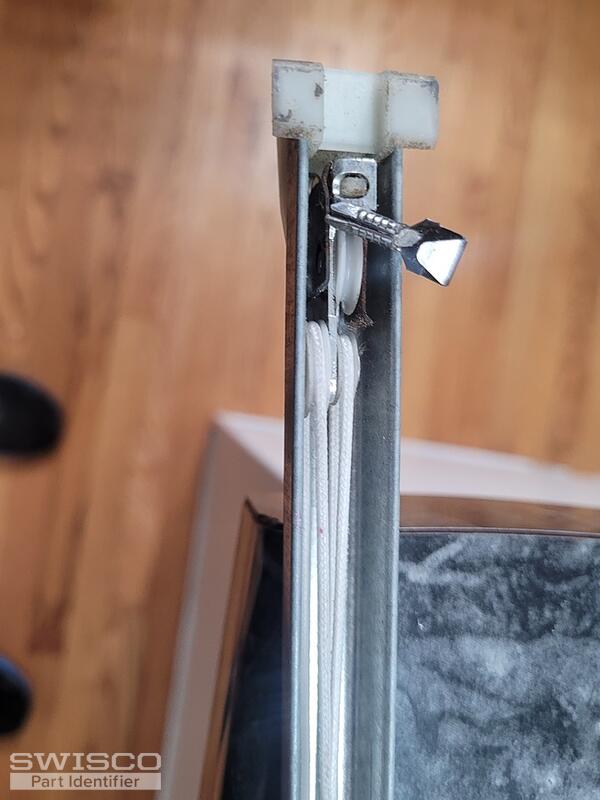

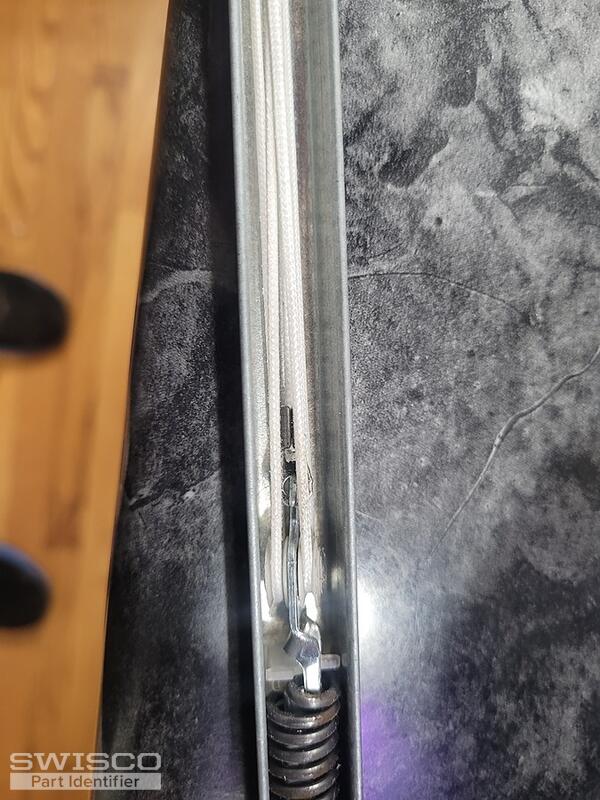

26 4 JW CMC 11 IS THE PART NUMBER ON PART AND IT IS 27 inches long. Thank you
Thumbnail of the uploaded file named 20210923_192828.jpg
Thumbnail of the uploaded file named 20210923_192724.jpg
Thumbnail of the uploaded file named 20210923_192719.jpg
Thumbnail of the uploaded file named 163244351119073465335605845437.jpg
Profile picture of Emily
Emily from SWISCO responded:
September 29, 2021

Hey there!

Thank you for your patience during our busy season. With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.

If you have any questions just let us know!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A home owner from 61111 says:
September 29, 2021
Thank you i need the 385 one. But what are the options available and do I need to pick
A home owner from 61111 says:
September 29, 2021
Nevermind i figured it out. Thank you
Profile picture of Emily
Emily from SWISCO responded:
September 30, 2021

You're welcome! If you have any questions just let us know.
27" Series 380 Channel Balance
27" Series 380 Channel Balance
S380-27
$10.55
27" Series 385 Channel Balance
27" Series 385 Channel Balance
S385-27
$10.55
